GS130-AEPFD (1991)
Toyota Crown
(9112-9512)1GGP

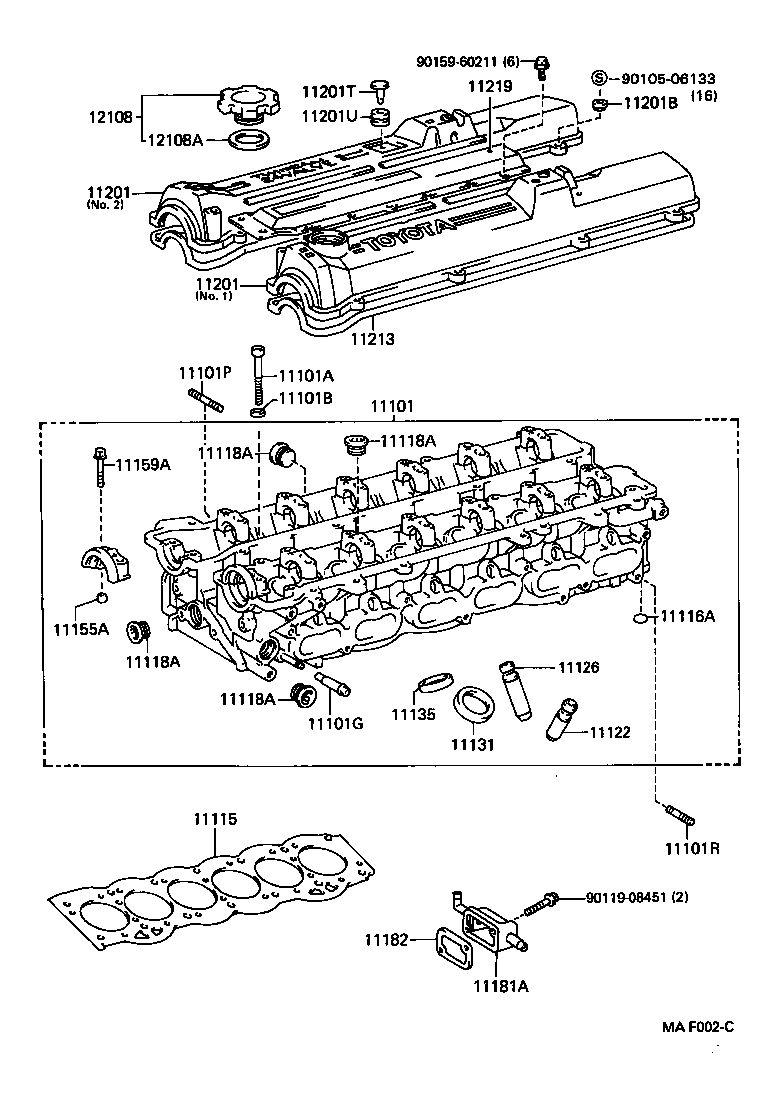

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-70051 |
1GGP..GS130 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90110-10003 |
1G#..GS130..SED;1GFE..GS131,136;1GFE..GS130..WG..SDX |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10050 |
1G#..GS13# |
14 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-08011 |
1G#..GS13# |
1 | ||
| 11101P - BOLT, STUD(FOR DISTRIBUTOR) | ||||
| 90116-08115 |
1GGP..GS130 |
1 | ||
| 11101R - BOLT, STUD(FOR FUEL PIPE) | ||||
| 90116-06063 |
1GGP..GS130 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-70032 |
1GGP..GS130 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
1GGP..GS130 |
4 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GGP..GS130 |
7 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GGP..GS130 |
7 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GGP..GS130 |
7 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GGP..GS130 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-16020 |
1GGP..GS130 STD |
12 | ||
| 11123-16020 |
1GGP..GS130 O/S 0.05 |
12 | ||
| 11126-70030 |
1GGP..GS130 STD |
12 | ||
| 11127-70030 |
1GGP..GS130 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-16020 |
1GGP..GS130 STD |
12 | ||
| 11126-70030 |
1G#..GS13# STD |
12 | ||
| 11123-16020 |
1GGP..GS130 O/S 0.05 |
12 | ||
| 11127-70030 |
1G#..GS13# O/S 0.05 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-70010 |
1GGP..GS130 O/S 0.03 |
12 | ||
| 11131-70010 |
1GGP..GS130 STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-70021 |
1G#..GS13# STD |
12 | ||
| 11136-70021 |
1G#..GS13# O/S 0.03 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10006 |
1G#..GS13# |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1G#..GS13# |
28 | ||
| 90119-07002 |
1GGP..GS130 |
28 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11181-70030 |
1GGP..GS130 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-88300 |
1GGP..GS130 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11212-70030 |
1GGP..GS130 NO.2 |
1 | ||
| 11201-70070 |
1GGP..GS130 NO.1 |
1 | ||
| 11212-70040 |
1GGP..GS130 NO.2 |
1 | ||
| 11201-70071 |
1GGP..GS130 NO.1 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11212-70030 |
1GGP..GS130 NO.2 |
1 | ||
| 11201-70070 |
1GGP..GS130 NO.1 |
1 | ||
| 11212-70040 |
1GGP..GS130 NO.2 |
1 | ||
| 11201-70071 |
1GGP..GS130 NO.1 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1GGP..GS130 |
16 | ||
| 11201T - PIN(FOR CYLINDER HEAD COVER) | ||||
| 90249-08089 |
1GGP..GS130 |
1 | ||
| 11201U - BUSH(FOR CYLINDER HEAD COVER) | ||||
| 90385-07001 |
1GGP..GS130 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88341 |
1GGP..GS130 |
2 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-70030 |
1GGP..GS130 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-65011 |
1GGP..GS130 |
1 | ||
| 12180-62011 |
1GGP..GS130 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1G#..GS13# |
1 | ||
| Common parts | ||||
| 90105-06133 | ||||
| 90119-08451 | ||||
| 90159-60211 | ||||
