GS130-AEPDK (1988)
Toyota Crown

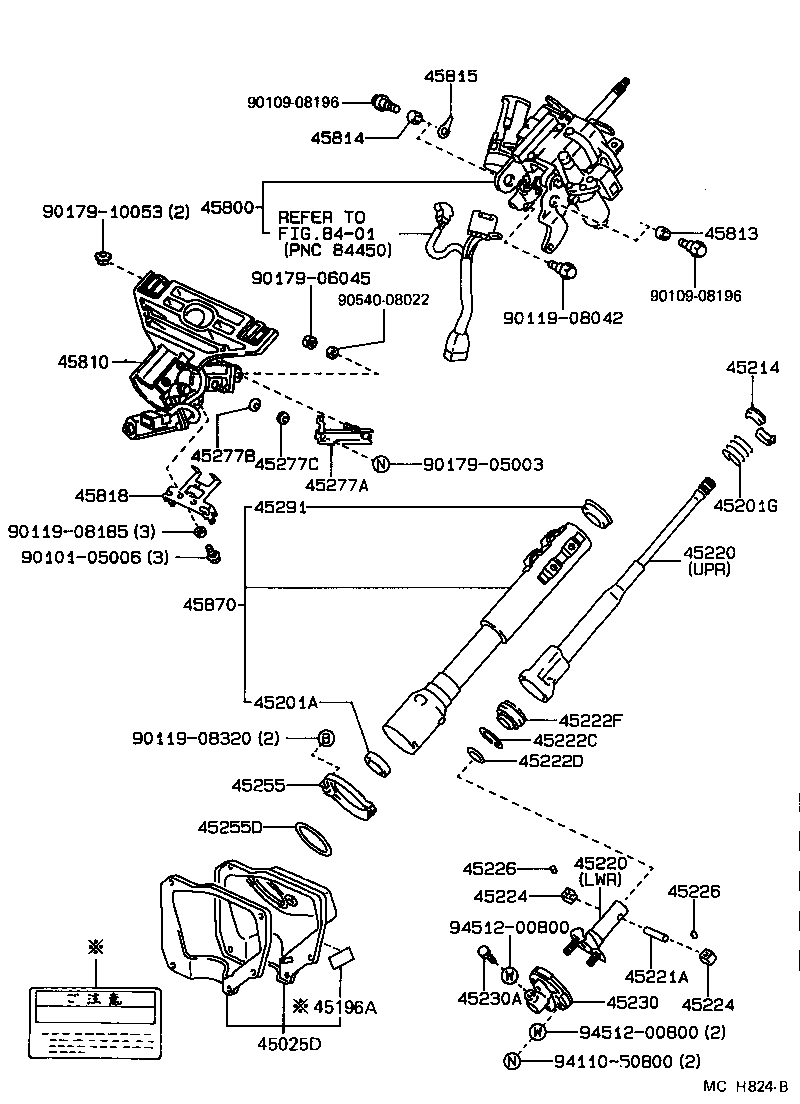

ILLUST NO. 1 OF 3(8908- )GS130,131,JZS13#,LS131,MS13#,UZS131..4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SDX,SPE,STD) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 90363-28001 |
GS130,LS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F)..(DLX,SDX) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ ﾒﾓﾘ- ﾂｷ),上側 |
1 | ||
| 90363-28001 |
GS130,LS130..(4FC,5F)..DLX;GS130,136..(V,WG)..(4FC,5F)..(DLX,SDX) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ ﾒﾓﾘ- ﾂｷ),上側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 90501-29388 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 90501-45011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90501-29388 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 90501-45011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 90501-29388 |
GS130..WG..SDX;GS130..4FC..TWLPG;GS130,LS130..(4H,4HC,5F)..(DLX,SALEX,STD);GS130,131..(HT,SED)..4FC..(DLX,ROY)..(HTWC,SPC);GS130,131..(HT,SED)..(4H,4HC)..(ROY,SAL,SALEX,SDX);GS136,JZS131,LS136,MS13#,UZS131,YS130..DLX,ROY,ROYG,SALEX,SDX,STD |
1 | ||
| 90501-29388 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45282-22010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.003−18.010 |
1 | ||
| 45813-20060 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.989−17.996 |
1 | ||
| 45813-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.017−18.024 |
1 | ||
| 45813-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.010−18.017 |
1 | ||
| 45813-20020 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.017−18.024 |
1 | ||
| 45813-20030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.003−18.010 |
1 | ||
| 45813-20060 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.989−17.996 |
1 | ||
| 45813-20040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.010−18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.996−18.003 |
1 | ||
| 45814-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.017−18.024 |
1 | ||
| 45814-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.989−17.996 |
1 | ||
| 45814-20020 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.003−18.010 |
1 | ||
| 45814-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.010−18.017 |
1 | ||
| 45814-20040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.017−18.024 |
1 | ||
| 45814-20010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.996−18.003 |
1 | ||
| 45814-20030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.010−18.017 |
1 | ||
| 45814-20050 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.989−17.996 |
1 | ||
| 45814-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.003−18.010 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-22100 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.8 |
1 | ||
| 45815-22070 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.5 |
1 | ||
| 45815-22090 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.4 |
1 | ||
| 45815-22080 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.8 |
1 | ||
| 45815-20030 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.8 |
1 | ||
| 45815-20050 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=1.8 |
1 | ||
| 45815-20010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.2 |
1 | ||
| 45815-20040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.5 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 45870-30190 |
GS130,LS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F)..(DLX,SDX) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ ﾒﾓﾘ ﾂｷ) |
1 | ||
| 45870-30170 |
GS130..WG..SDX;GS130..4FC..DLX;GS136,LS136,YS130;GS130..4FC..TWLPG;GS130,LS130..(4H,4HC,5F)..(DLX,SALEX,STD);GS130,131,JZS131..(HT,SED)..(4H,4HC)..(ROY,SAL,SALEX,SDX) |
1 | ||
| 45870-30230 |
GS130,LS130..(4FC,5F)..DLX;GS130,136..(V,WG)..(4FC,5F)..(DLX,SDX) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ ﾒﾓﾘ ﾂｷ) |
1 | ||
| Common parts | ||||
| 90101-05006 | ||||
| 90109-08196 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90119-08320 | ||||
| 90179-05003 | ||||
| 90179-06045 | ||||
| 90179-10053 | ||||
| 90540-08022 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
