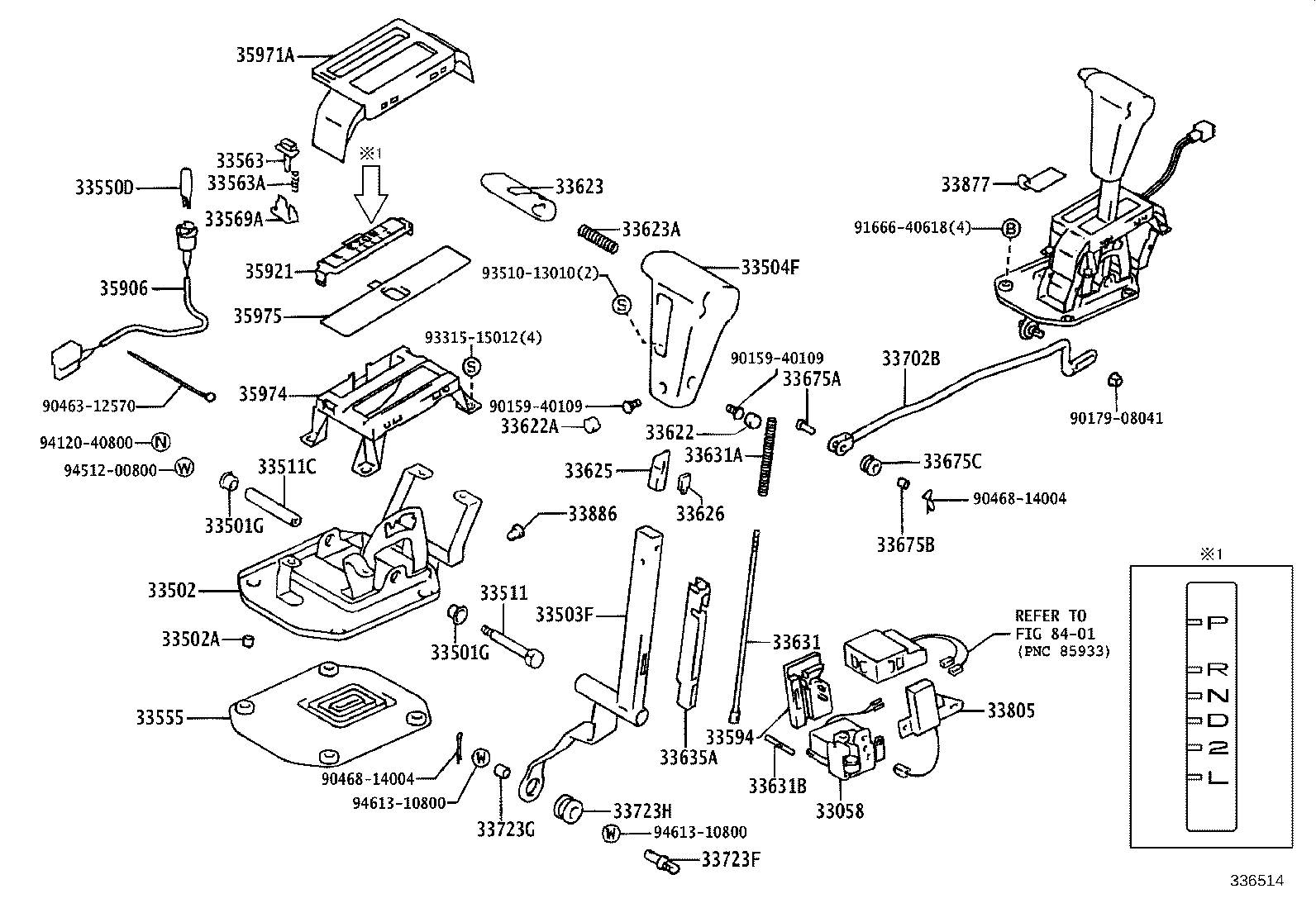

GS130-AEPDK (1988)
Toyota Crown
(8809- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-30010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33058-30010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
GS130,131,LS13#,MS13#..4FC..(DSL,EFI,LPG,TDE,TWC) |
2 | ||
| 90385-11003 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC..(DSL,HTWC,TDE,TWC,TWLPG) |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
GS130,131,LS13#,MS13#..4FC..(DSL,EFI,LPG,TDE,TWC) |
2 | ||
| 90385-11003 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC..(DSL,HTWC,TDE,TWC,TWLPG) |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-30211 |
GS130,131,LS13#,MS13#..4FC |
1 | ||
| 33502-30231 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33502-30230 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33502-30230 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) 外径=8.8 |
4 | ||
| 90387-06065 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC 外径=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-30170 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 33503-30210 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33503-30190 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3014002 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 33542-3014004 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) DARK BLUE,TRIM8# |
1 | ||
| 33542-3014004 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 33542-3014002 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) MAROON,TRIM3# |
1 | ||
| 33542-3020002 |
GS130,131,JZS13#,LS13#,MS135..4FC MAROON,TRIM3# |
1 | ||
| 33542-3020004 |
GS130,131,JZS13#,LS13#,MS135..4FC BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-30390 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33511-30341 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 33511-30390 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08109 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) 12V 3.4W |
1 | ||
| 99132-12034 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC 12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-30161 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33555-30160 |
GS130,131,LS13#,MS13#..4FC |
1 | ||
| 33555-30161 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-30010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33563-30010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06058 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-30040 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33569-30040 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-30010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33594-30010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3004022 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 33622-3004024 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) DARK BLUE,TRIM8# |
1 | ||
| 33622-3008002 |
GS131,MS135..SED..4FC..ROY;GS130,LS13#,MS137,UZS131..4FC;GS131,MS135..4FC..(SAL,SALEX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 33622-3008002 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC MAROON,TRIM3# |
1 | ||
| 33622-3004024 |
GS130,131,LS130,MS130..4FC..(EFI,HTWC,LPG,TDE) DARK BLUE,TRIM8# |
1 | ||
| 33622-3008004 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC BLUE,TRIM8# |
1 | ||
| 33622-3004022 |
GS130,131,LS130,MS130..4FC..(EFI,HTWC,LPG,TDE) MAROON,TRIM3# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-30100J0 |
GS130,LS130..SED..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-30100D0 |
GS130..SED..4FC MAROON,MAROON,TRIM3# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3007002 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 33623-3007004 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) BLUE,TRIM8# |
1 | ||
| 33623-3007004 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 33623-3007002 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) MAROON,TRIM3# |
1 | ||
| 33623-3009004 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC BLUE,TRIM8# |
1 | ||
| 33623-3009002 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC MAROON,TRIM3# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 90501-07009 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33625-30020 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-30010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16020 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33631-16020 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07082 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 90501-08017 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 90501-08017 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 90256-04003 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-30040 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33635-30050 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 90240-08120 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
GS130,131,LS13#,MS13#..4FC |
1 | ||
| 90389-08005 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
GS130,131,LS13#,MS13#..4FC |
1 | ||
| 90480-17177 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30090 |
GS130,131,MS130..4FC..(EFI,HTWC,LPG,TWC,TWLPG) |
1 | ||
| 33702-30200 |
GS131..4FC..SPC;GS130,MS13#..4FC..(SPC,TWC) |
1 | ||
| 33702-30200 |
GS131..4FC..ROY..SPC;GS130,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33723-22010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 90389-08005 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 90480-17177 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33805 - PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33805-30010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-30010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 33877-30010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-30010 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-30050 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 35906-12050 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-30350 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 35921-30350 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 35921-30330 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30200 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 35971-30210 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 35971-30240 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-30H00 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 35974-30060 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 35974-30070 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 35974-30070 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30140 |
GS130,131,JZS13#,LS13#,MS13#,UZS131..4FC |
1 | ||
| 35975-30100 |
GS131..4FC..ROY..SPC;GS131..4FC..(EFI,TWC);GS130,LS13#,MS13#..4FC |
1 | ||
| 35975-30120 |
GS131..4FC..ROY..SPC;GS130,LS13#,MS13#..4FC;GS131..4FC..(EFI,HTWC,TWC) |
1 | ||
| Common parts | ||||
| 90159-40109 | ||||
| 90179-08041 | ||||
| 90463-12570 | ||||
| 90468-14004 | ||||
| 91666-40618 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
