GS130-AEPDK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE

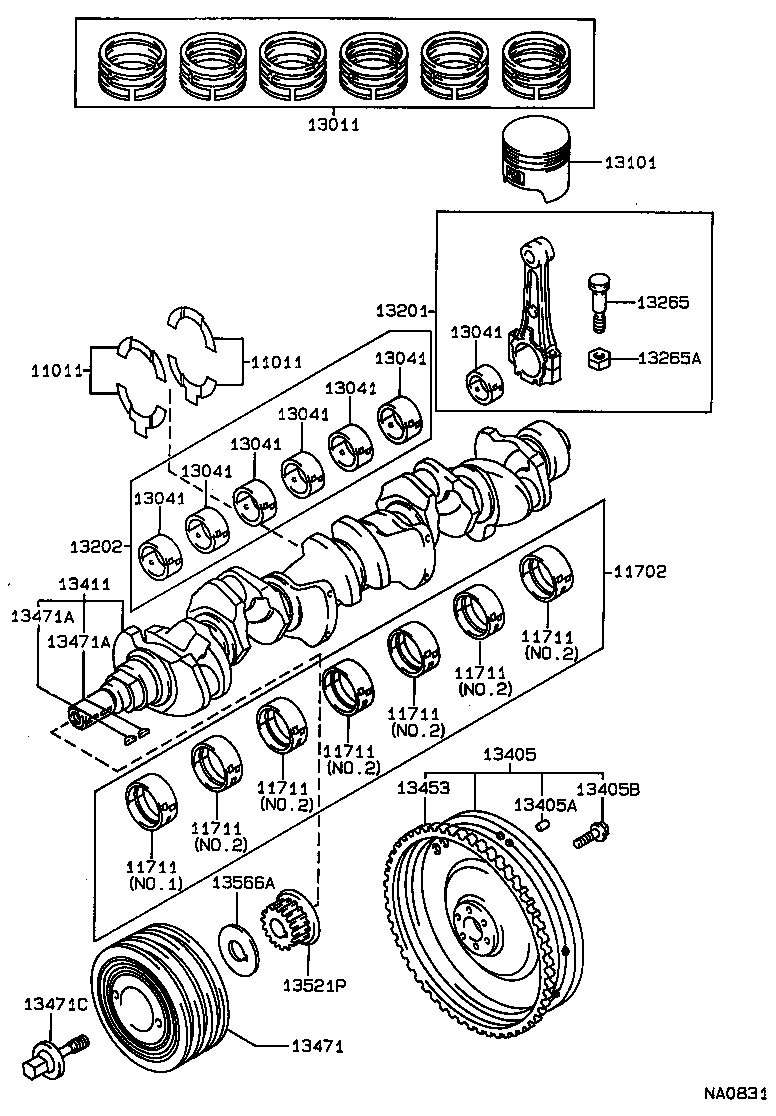

Click highlighted areas on diagram

diagram 11011 11011 11702 11711 11711 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-70010

1GE,1GFE,1GG#..GS13#

STD

 2
11011 - WASHER SET, CRANKSHAFT THRUST
11011-70010

1GE,1GFE,1GG#..GS13#

STD

 2
13011 - RING SET, PISTON
13013-70090

1GFE..GS13#

O/S 0.50

 1
13011-70090

1GFE..GS13#

STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-7007001

1GFE..GS13#

STD,MARK 1

 6
13103-70070

1GFE..GS13#

O/S 0.50

 6
13101-7007002

1GFE..GS13#

STD,MARK 2

 6
13101-7007003

1GFE..GS13#

STD,MARK 3

 6
13265 - BOLT, CONNECTING ROD
13265-70020

1GFE,1GG#..GS13#

 12
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-09006

1GFE,1GG#..GS13#

 12
13411 - CRANKSHAFT
13411-70908

1GFE,1GG#..GS13#

 1
13471 - PULLEY, CRANKSHAFT
13407-70080

1GFE..GS13#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20519

1GE,1GFE,1GG#..GS13#

 2
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20519

1GE,1GFE,1GG#..GS13#

 2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-18004

1GFE..GS13#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-70040

1GFE..GS13#

 1
13566A - GUIDE, TIMING BELT
13566-70031

1GFE..GS13#

 1
13566-70030

1GFE..GS130,131

 1
