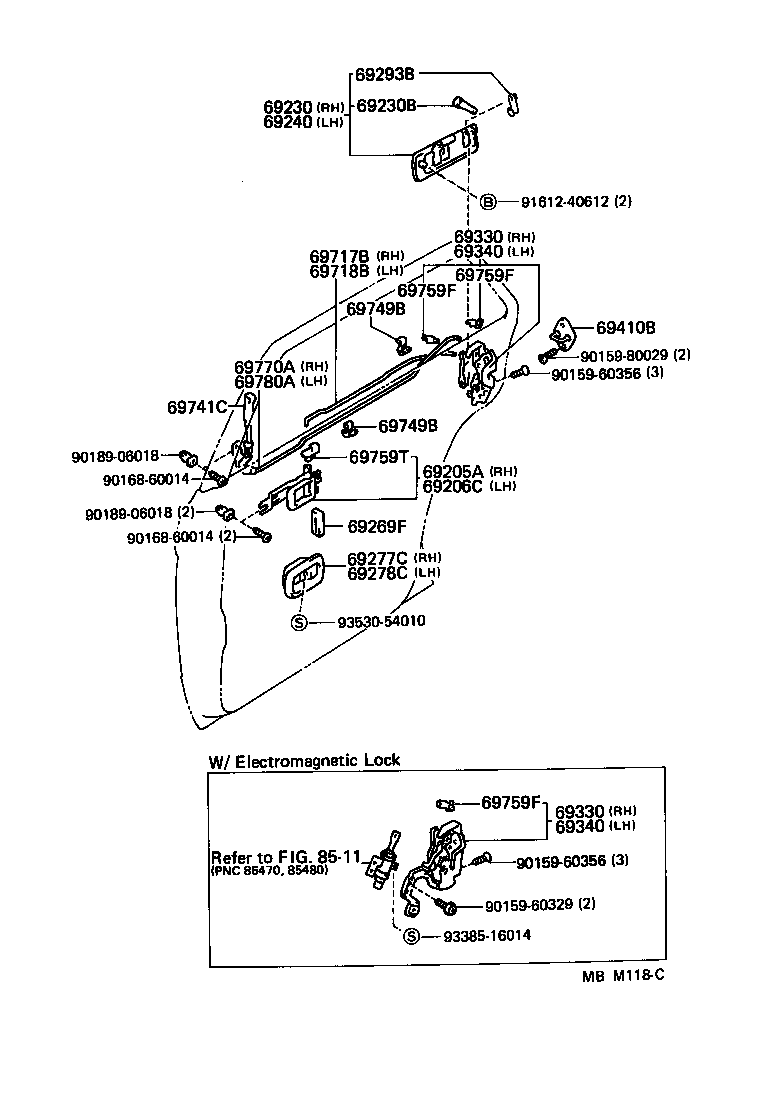

GS130-AEPDE (1987)
Toyota Crown
(8709-8908)SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30040 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69205-30041 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30040 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69206-30041 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
GS13#,LS13#,MS13#,YS130 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69269F - SEAL, REAR DOOR INSIDE HANDLE | ||||
| 69269-30010 |
GS13#,LS13#,MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 69277-3006004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69277-3006004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 69277-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG 右側 |
1 | ||
| 69293-12060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG 左側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-30340 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-30340 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-30340 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-30340 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-3003022 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
2 | ||
| 69741-3003024 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG DARK BLUE,TRIM8# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 69749-30020 |
GS13#,LS13#,MS13#,YS130 |
4 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 69749-30020 |
GS13#,LS13#,MS13#,YS130 |
4 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24060 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX 右側 |
3 | ||
| 69759-24050 |
GS13#,LS13#,MS13#,YS130..SED,V,WG 左側 |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24060 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX 右側 |
3 | ||
| 69759-24050 |
GS13#,LS13#,MS13#,YS130..SED,V,WG 左側 |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24060 |
GS130,LS130..DLX,SDX;GS130,LS130..WG..SALEX 右側 |
3 | ||
| 69759-24050 |
GS13#,LS13#,MS13#,YS130..SED,V,WG 左側 |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-24010 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| 69759-24020 |
GS13#,LS13#,MS13#,YS130 右側 |
1 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-30130 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-30100 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| Common parts | ||||
| 90159-60329 | ||||
| 90159-60356 | ||||
| 90159-80029 | ||||
| 90168-60014 | ||||
| 90189-06018 | ||||
| 91612-40612 | ||||
| 93385-16014 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
