GS130-AEMRK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)

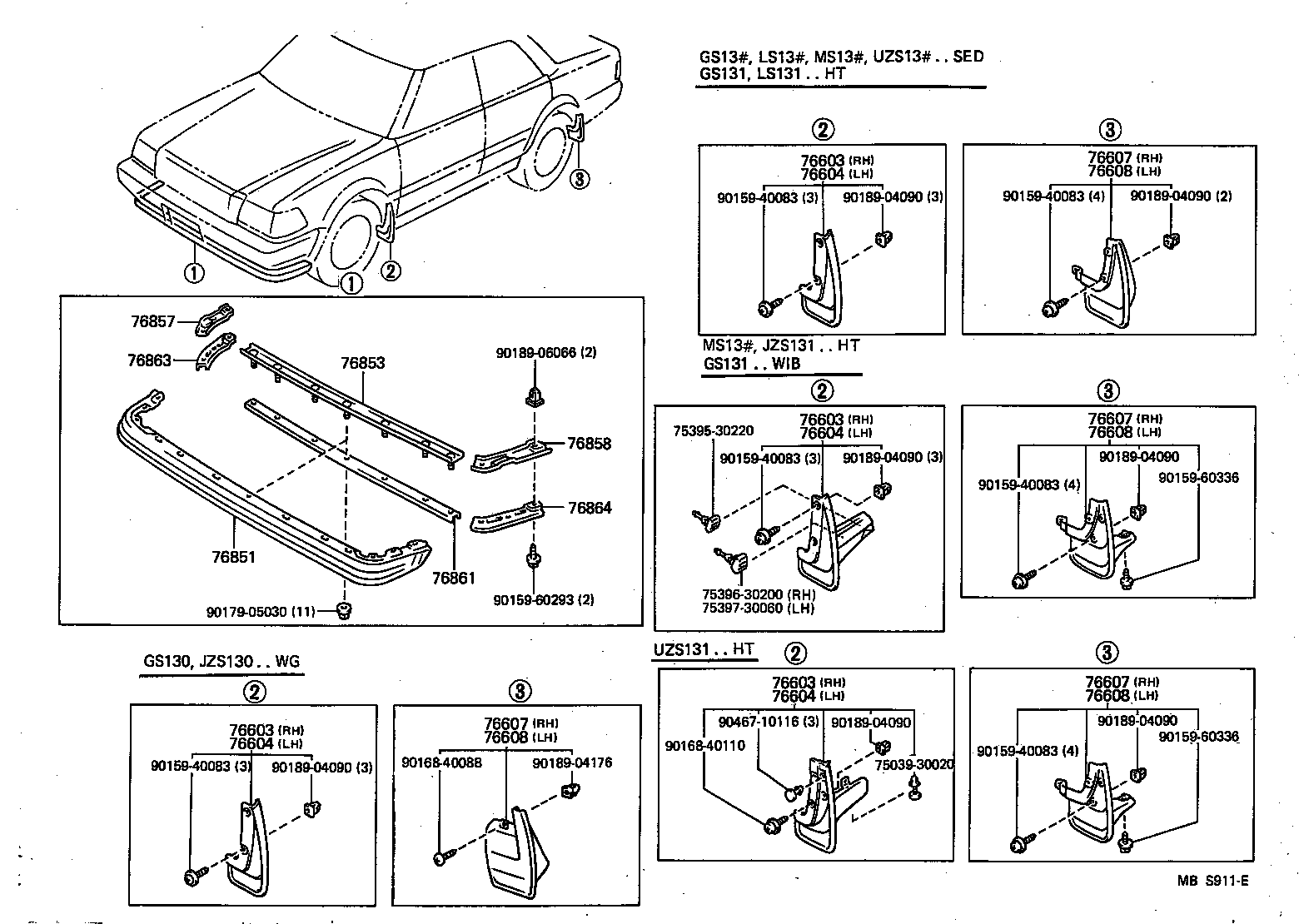

Click highlighted areas on diagram

diagram 76082A 76082A 76603 76604 76607 76608 76851 76851 76853 76855 76855 76861 9015940083 9015940083 9017905004 9017905004 9018904090 9018904090
Part # Description Qty Price
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76625-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76626-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
Common parts
90159-40083
90179-05004
90189-04090

(8908- )

Click highlighted areas on diagram

diagram 7503930020 7539530220 7539630200 7539730060 76603 76603 76603 76603 76604 76604 76604 76604 76607 76607 76607 76607 76608 76608 76608 76608 76851 76853 76857 76858 76861 76863 76864 9015940083 9015940083 9015940083 9015940083 9015940083 9015940083 9015960293 9015960336 9015960336 9016840088 9016840110 9017905030 9018904090 9018904090 9018904090 9018904090 9018904090 9018904090 9018904090 9018904176 9018906066 9046710116
Part # Description Qty Price
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76625-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76625-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76625-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76625-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76626-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76626-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76626-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-3918501

GS130,131,LS130..HT

BLACK,167 ,202 ,3H3 ,869

 1
76626-3918513

GS130,131,LS130,131..HT..NOB

WARM SILVER METALLIC,24G

 1
Common parts
75039-30020
75395-30220
75396-30200
75397-30060
90159-40083
90159-60293
90159-60336
90168-40088
90168-40110
90179-05030
90189-04090
90189-04176
90189-06066
90467-10116
