GS130-AEMRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

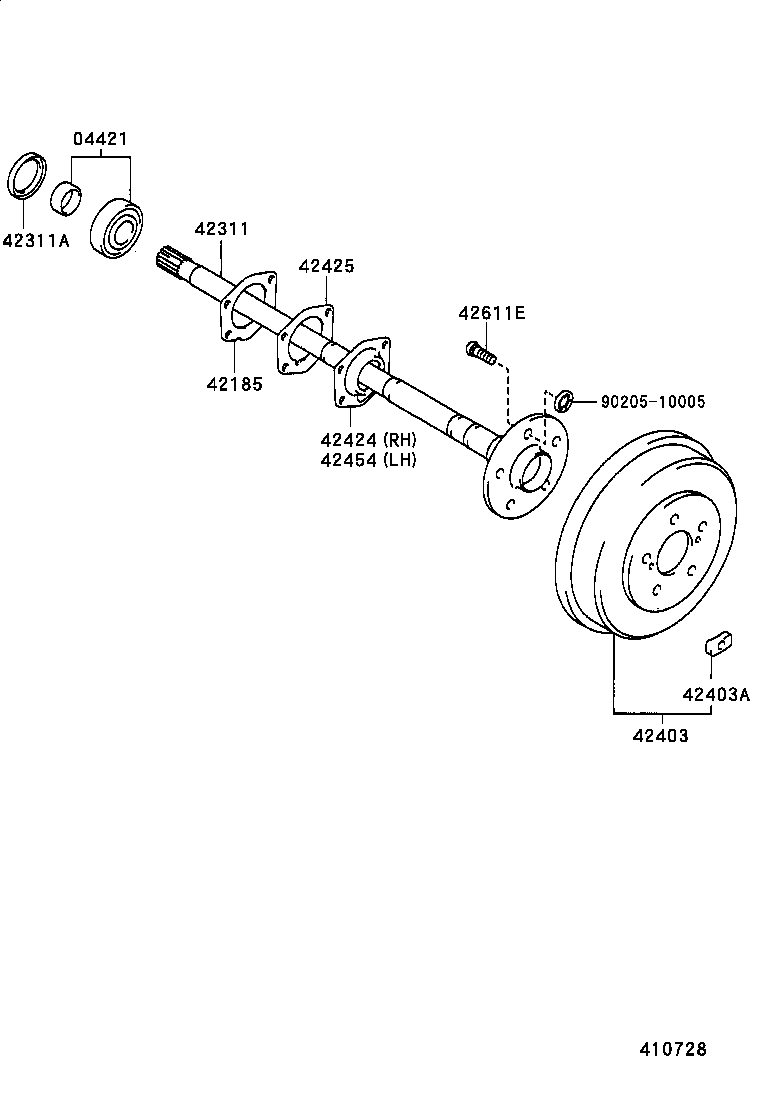

ILLUST NO. 2 OF 2(9110- )GS130,136,JZS130,LS130,136,YS130

Click highlighted areas on diagram

DRUM BRAKE

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E 9020510005
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-30030

GS130,LS130..SED

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-30061

GS130,136,JZS130,LS130,136

 2
42185-30061

GS130,136,JZS130,LS130,136,YS130

 2
42311 - SHAFT, REAR AXLE
42311-30071

GS130,LS130..SED

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

GS130,LS130..SED

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-30110

GS130,136,JZS130,LS130,136

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

GS130,136,JZS130,LS130,136

10G

 1
90937-01118

GS130,136,JZS130,LS130,136

20G

 1
90937-01119

GS130,136,JZS130,LS130,136

30G

 1
90937-01100

GS130,136,JZS130,LS130,136

40.5G

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-30040

GS130,LS130..SED

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-30031

GS130,136,JZS130,LS130,136

 2
42425-30031

GS130,136,JZS130,LS130,136,YS130

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-30040

GS130,LS130..SED

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

GS13#,JZS13#,LS13#

 10
90942-02047

GS13#,JZS13#,LS13#,YS130

 10
Common parts
90205-10005
