GS130-AEMRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE

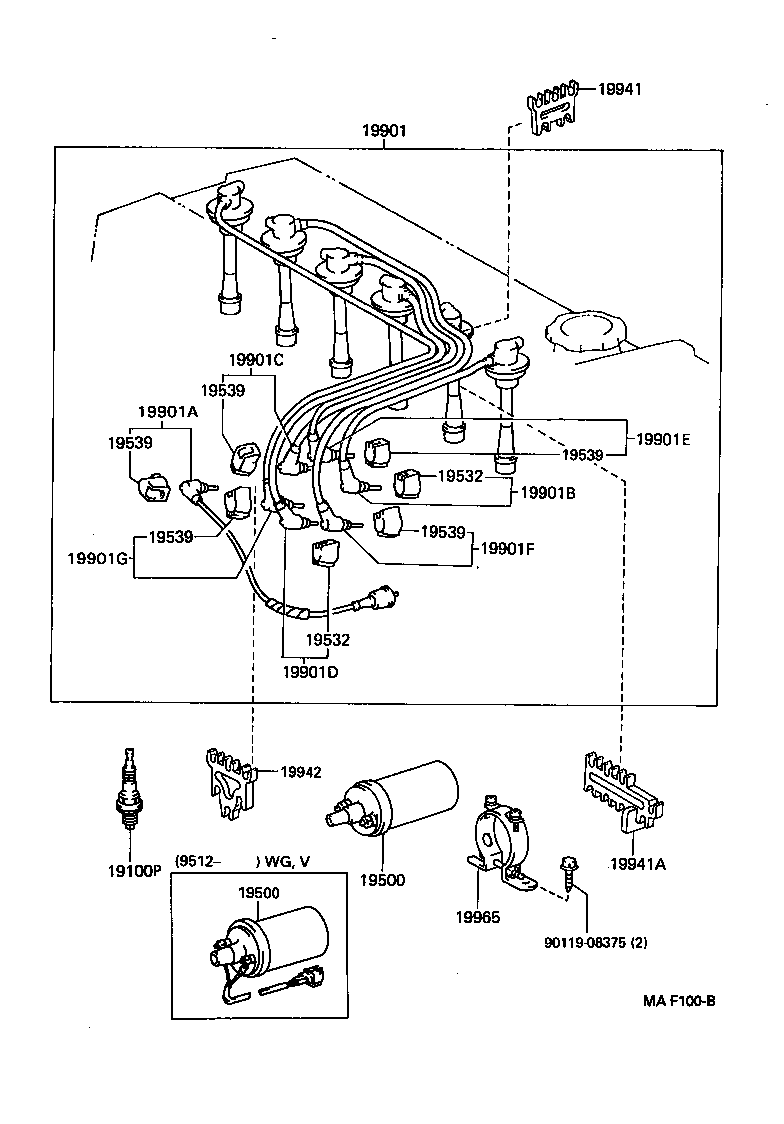

Click highlighted areas on diagram

diagram 19100P 19500 19500 19532 19532 19539 19539 19539 19539 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19941A 19942 19965 9011908375
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

1GFE..GS13#

K16R−U11

 6
19500 - COIL ASSY, IGNITION
90919-02113

1G#..GS13#

 1
19500 - COIL ASSY, IGNITION
90919-02113

1G#..GS13#

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1GFE..GS13#

MARK "E"

 1
19532-50010

1GFE..GS13#

MARK "B"

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1GFE..GS13#

MARK "E"

 1
19532-50010

1GFE..GS13#

MARK "B"

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1GFE..GS13#

MARK "C"

 1
19539-46010

1GFE..GS13#

MARK "A"

 1
19539-62020

1GFE..GS13#

MARK "L"

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1GFE..GS13#

MARK "C"

 1
19539-46010

1GFE..GS13#

MARK "A"

 1
19539-62020

1GFE..GS13#

MARK "L"

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1GFE..GS13#

MARK "C"

 1
19539-46010

1GFE..GS13#

MARK "A"

 1
19539-62020

1GFE..GS13#

MARK "L"

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1GFE..GS13#

MARK "C"

 1
19539-46010

1GFE..GS13#

MARK "A"

 1
19539-62020

1GFE..GS13#

MARK "L"

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1GFE..GS13#

MARK "C"

 1
19539-46010

1GFE..GS13#

MARK "A"

 1
19539-62020

1GFE..GS13#

MARK "L"

 3
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21545

1GFE..GS13#

 1
19901A - CORD, COIL RESISTIVE
90919-13424

1GFE..GS13#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15282

1GFE..GS13#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15283

1GFE..GS13#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15284

1GFE..GS13#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15285

1GFE..GS13#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15286

1GFE..GS13#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15287

1GFE..GS13#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01298

1GFE..GS13#

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90929-01301

1GFE..GS13#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01300

1GFE..GS13#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03086

1GFE..GS13#

 1
Common parts
90119-08375
