GS130-AEMRE (1987)
Toyota Crown

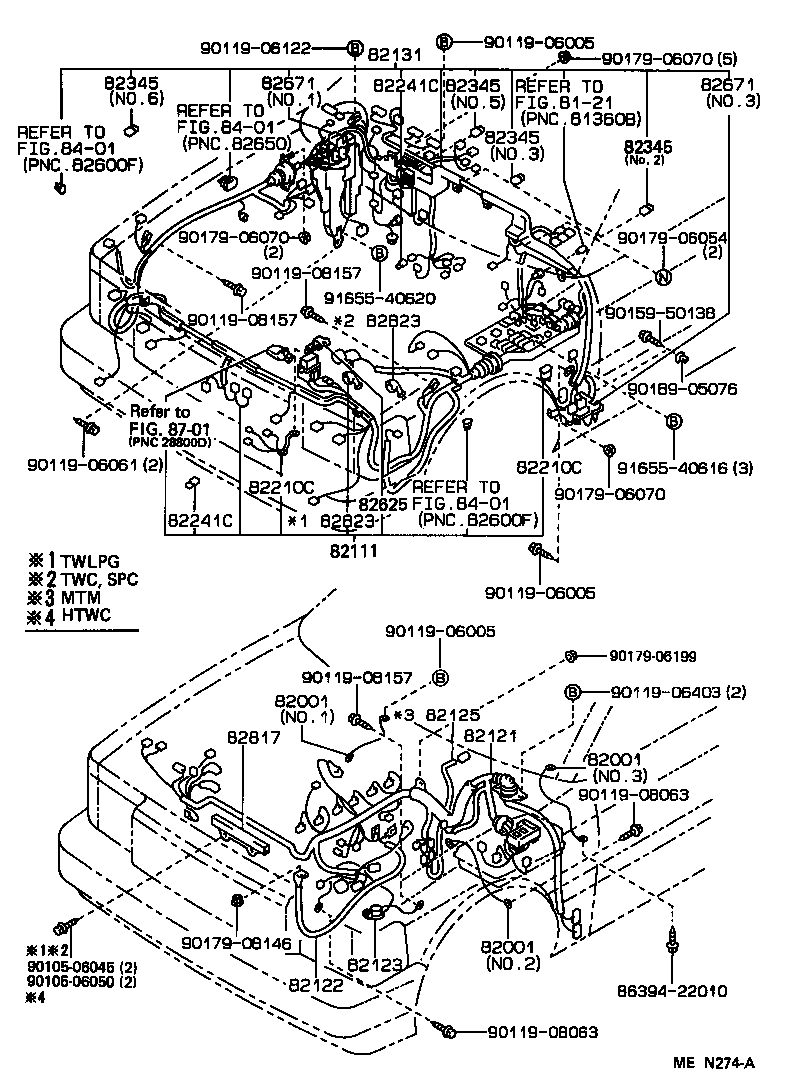

ILLUST NO. 1 OF11(8709- )GS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07309 |
GS130..STD NO.1 |
1 | ||
| 90980-07109 |
GS13#..EFI NO.1 |
1 | ||
| 90980-07109 |
GS130,136..STD NO.1 |
1 | ||
| 90980-07309 |
GS13#..EFI;GS130..STD..HTWC NO.1 |
1 | ||
| 90980-07309 |
GS13#..EFI,HTWC NO.1 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07309 |
GS130,136..STD..EFI NO.1 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07309 |
GS130,136..STD..EFI NO.1 |
1 | ||
| 90980-07309 |
GS130..STD NO.1 |
1 | ||
| 90980-07109 |
GS13#..EFI NO.1 |
1 | ||
| 90980-07109 |
GS130,136..STD NO.1 |
1 | ||
| 90980-07309 |
GS13#..EFI;GS130..STD..HTWC NO.1 |
1 | ||
| 90980-07309 |
GS13#..EFI,HTWC NO.1 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07309 |
GS130..STD NO.1 |
1 | ||
| 90980-07109 |
GS13#..EFI NO.1 |
1 | ||
| 90980-07109 |
GS130,136..STD NO.1 |
1 | ||
| 90980-07309 |
GS13#..EFI;GS130..STD..HTWC NO.1 |
1 | ||
| 90980-07309 |
GS13#..EFI,HTWC NO.1 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07309 |
GS130,136..STD..EFI NO.1 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3A040 |
GS130..STD |
1 | ||
| 82111-3A041 |
GS130..STD..EFI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30420 |
GS130,131..EFI |
1 | ||
| 82121-30421 |
GS130,131..EFI |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30200 |
GS13#..EFI,HTWC |
1 | ||
| 82122-30250 |
GS13#..EFI,HTWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30170 |
GS130,131,JZS13# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-30150 |
GS136..5F..HTWC;GS130,131,LS136..5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3F200 |
GS130..STD..EFI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GS13#,LS13#,MS13#,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GS130,131,MS135,137 100A,ｵｽ端子,青 |
1 | ||
| 90982-08223 |
GS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
GS13#,LS13#,MS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,LS13#,MS13#,YS130 長さ=110,1.0Y |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GS13#,LS13#,MS13#,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GS130,131,MS135,137 100A,ｵｽ端子,青 |
1 | ||
| 90982-08223 |
GS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
GS13#,LS13#,MS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,LS13#,MS13#,YS130 長さ=110,1.0Y |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22020 |
GS130..STD;GS136,YS130..DLX,STD ENGINE WIRE |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22020 |
GS130..STD;GS136,YS130..DLX,STD ENGINE WIRE |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
GS13#,MS130,YS130..EFI,LPG |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
GS13#,MS130,YS130..EFI,LPG |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90105-06045 | ||||
| 90105-06050 | ||||
| 90119-06005 | ||||
| 90119-06061 | ||||
| 90119-06122 | ||||
| 90119-06403 | ||||
| 90119-08063 | ||||
| 90119-08157 | ||||
| 90159-50138 | ||||
| 90179-06054 | ||||
| 90179-06070 | ||||
| 90179-06199 | ||||
| 90179-08146 | ||||
| 90189-05076 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8701 | ||||
ILLUST NO. 2 OF11(8709- )GS130,131,LS130,131,MS13#,UZS131,YS130..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30300 |
GS130,LS130..5F..STD |
1 | ||
| 82141-30301 |
GS130,LS130..5F..STD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30230 |
GS136,LS136;GS130,LS130,YS130..STD |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30110 |
GS136,LS136;GS130,LS130,YS130..STD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-30690 |
GS131..4FC..SSL;GS130,LS130..HT,SED;GS131..(4HC,5F)..(EFI,HTWC) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30280 |
YS130;GS130,LS130..STD |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30130 |
GS136,LS136,YS130..4FC,5F;GS130,LS130,MS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30130 |
GS136,LS136,YS130..4FC,5F;GS130,LS130,MS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30220 |
GS130,LS130..STD |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30010 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-30060 |
GS130..STD;LS130..5F..STD |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-30030 |
GS130,LS130,YS130..STD |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22020 |
GS130..STD;GS136,YS130..DLX,STD ENGINE WIRE |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG RH COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30220 |
GS131..5F..TWC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) CONSOLE REAR NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30090 |
MS137..4FC..WIB;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG RH COWL SIDE NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30850 |
GS136,LS136;GS130,LS130,YS130..STD LH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A020 |
GS136,LS136..DLX,STD;GS130,LS130,YS130..STD RH,FRONT DOOR |
1 | ||
| 82817-3A450 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,TD,TDE) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90159-50138 | ||||
| 90168-50037 | ||||
| 90176-05013 | ||||
| 90189-05070 | ||||
| 90467-10070 | ||||
| 90950-01582 | ||||
| 90950-01583 | ||||
| 91655-40616 | ||||
| 91666-40616 | ||||
| 93510-55012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 8 OF11(8809- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30320 | ||||
| 82715-30340 | ||||
| 82715-30360 | ||||
| 82715-30380 | ||||
| 82715-30390 | ||||
| 82715-30400 | ||||
| 82715-30410 | ||||
| 82715-30450 | ||||
| 82715-30500 | ||||
| 82715-30530 | ||||
| 82715-50020 | ||||
| 82715-50070 | ||||
| 82715-50080 | ||||
| 82715-50100 | ||||
| 82715-50110 | ||||
| 82715-50120 | ||||
| 90119-06311 | ||||
| 90119-08601 | ||||
| 90179-08071 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
ILLUST NO. 9 OF11(8809- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-50130 | ||||
| 82715-50140 | ||||
| 82819-30250 | ||||
| 90119-08684 | ||||
| 90119-08749 | ||||
| 90168-60010 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08483 | ||||
| 90463-12014 | ||||
| 90464-00073 | ||||
| 90464-00137 | ||||
| 90464-00159 | ||||
| 90480-10005 | ||||
| 90480-23006 | ||||
ILLUST NO. 3 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 69749-12010 | ||||
| 82710-22020 | ||||
| 82710-30040 | ||||
| 82710-30080 | ||||
| 82710-30220 | ||||
| 82710-30230 | ||||
| 82710-30240 | ||||
| 82710-30250 | ||||
| 82710-30360 | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-1A210 | ||||
| 82711-22220 | ||||
| 82711-22490 | ||||
| 82711-95J26 | ||||
| 90119-08012 | ||||
| 90119-08683 | ||||
| 90119-08714 | ||||
| 90119-08760 | ||||
| 91611-60814 | ||||
| 91655-40816 | ||||
| 91661-60616 | ||||
ILLUST NO. 4 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24010 | ||||
| 82711-24220 | ||||
| 82711-24240 | ||||
| 82711-24330 | ||||
| 82711-24400 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30020 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30260 | ||||
| 82711-30390 | ||||
| 82711-30520 | ||||
| 82711-30540 | ||||
| 82711-30550 | ||||
| 82711-30580 | ||||
| 90119-06200 | ||||
| 90119-08683 | ||||
| 90119-08684 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91655-40816 | ||||
ILLUST NO. 5 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30600 | ||||
| 82711-30700 | ||||
| 82711-30830 | ||||
| 82711-30860 | ||||
| 82711-30870 | ||||
| 82711-32650 | ||||
| 82711-3A180 | ||||
| 82711-3A200 | ||||
| 82711-3A230 | ||||
| 82711-3A270 | ||||
| 82711-50540 | ||||
| 82711-91703 | ||||
| 82711-95015 | ||||
| 82715-22040 | ||||
| 82715-22080 | ||||
| 82715-22120 | ||||
| 90119-06200 | ||||
| 90179-06158 | ||||
| 91651-40814 | ||||
| 91651-A0614 | ||||
| 91655-40816 | ||||
| 93230-16016 | ||||
| 93510-55012 | ||||
(8709- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..EFI COWL,NO.5 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12050 | ||||
| 82345-22051 | ||||
| 82345-30010 | ||||
| 82345-32020 | ||||
(8709- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-10020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-20020 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82987-30010 | ||||
| 82988-50010 | ||||
ILLUST NO. 6 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-22180 | ||||
| 82715-22280 | ||||
| 82715-22390 | ||||
| 82715-30010 | ||||
| 82715-30020 | ||||
| 82715-30030 | ||||
| 82715-30040 | ||||
| 82715-30060 | ||||
| 82715-30070 | ||||
| 82715-30071 | ||||
| 82715-30080 | ||||
| 82715-30081 | ||||
| 82715-30090 | ||||
| 82715-30100 | ||||
| 82715-30110 | ||||
| 82715-30120 | ||||
| 90119-06200 | ||||
| 90119-08035 | ||||
| 90119-08684 | ||||
| 90179-06158 | ||||
| 90179-06199 | ||||
| 91651-40614 | ||||
| 91651-A0614 | ||||
| 91651-F0612 | ||||
| 91655-40816 | ||||
ILLUST NO. 7 OF11(8809- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30130 | ||||
| 82715-30140 | ||||
| 82715-30150 | ||||
| 82715-30160 | ||||
| 82715-30170 | ||||
| 82715-30180 | ||||
| 82715-30190 | ||||
| 82715-30200 | ||||
| 82715-30210 | ||||
| 82715-30220 | ||||
| 82715-30230 | ||||
| 82715-30240 | ||||
| 82715-30250 | ||||
| 82715-30260 | ||||
| 82715-30270 | ||||
| 82715-30310 | ||||
| 90119-06200 | ||||
| 90119-06474 | ||||
| 90119-08164 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-G0614 | ||||
| 91655-40816 | ||||
| 93385-16012 | ||||
ILLUST NO. 4 OF 8(9110-9512)SED
ﾙ-ﾌ,ﾌﾛｱ & ﾄﾗﾝｸﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06122 | ||||
| 90159-50138 | ||||
| 90168-50037 | ||||
| 90176-05013 | ||||
| 90189-05070 | ||||
| 91661-60616 | ||||
| 93510-55012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
