GS130-AEMRE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS136,LS136..DLX,STD ; (8709- )GS130,LS130,YS130..STD

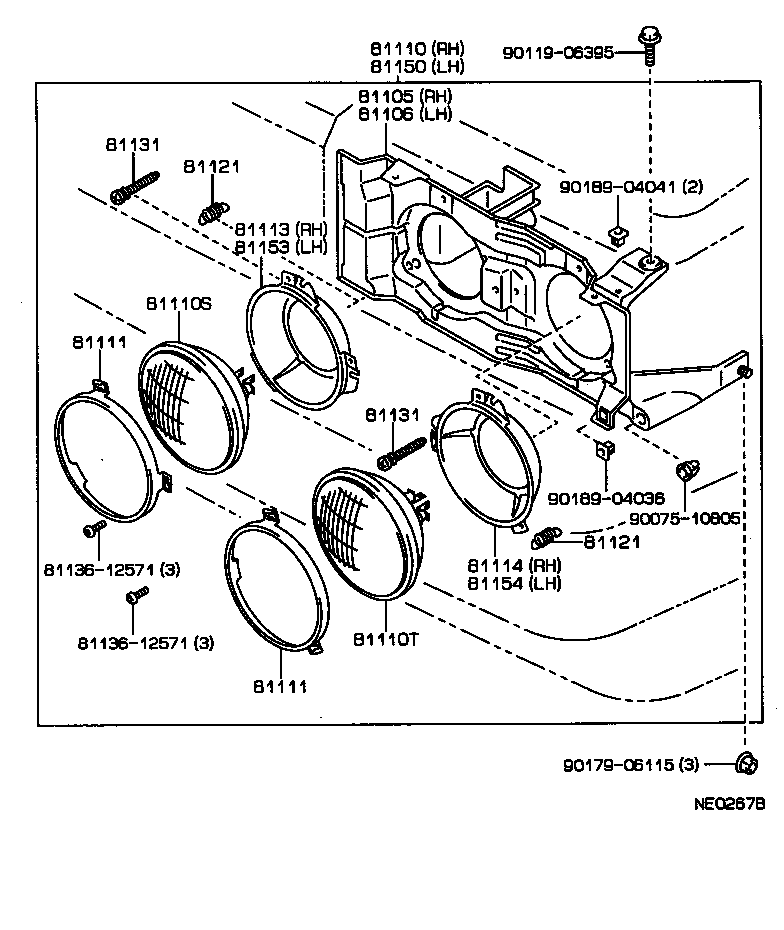

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81110T 81111 81111 81113 81114 81121 81121 81131 81131 8113612571 8113612571 81150 81153 81154 9007510805 9011906395 9017906115 9018904036 9018904041
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-30760

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-30760

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81110 - HEADLAMP ASSY, RH
81110-30760

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02051

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

12V 50W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02052

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

12V 37.5/60W,*WB

 2
81111 - RING, SEALED BEAM RETAINING
81111-20280

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 4
81111 - RING, SEALED BEAM RETAINING
81111-20280

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 4
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-30421

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-30421

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81121 - SPRING, HEADLAMP TENSION
81121-20100

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 4
81121 - SPRING, HEADLAMP TENSION
81121-20100

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 8
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 8
81150 - HEADLAMP ASSY, LH
81150-30760

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-30531

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-30531

GS136,LS136..DLX,STD;GS130,LS130,YS130..STD

 1
Common parts
81136-12571
90075-10805
90119-06395
90179-06115
90189-04036
90189-04041

(9110-9809)GS130,YS130..STD ; (9110-9809)GS136,LS136..DLX,STD

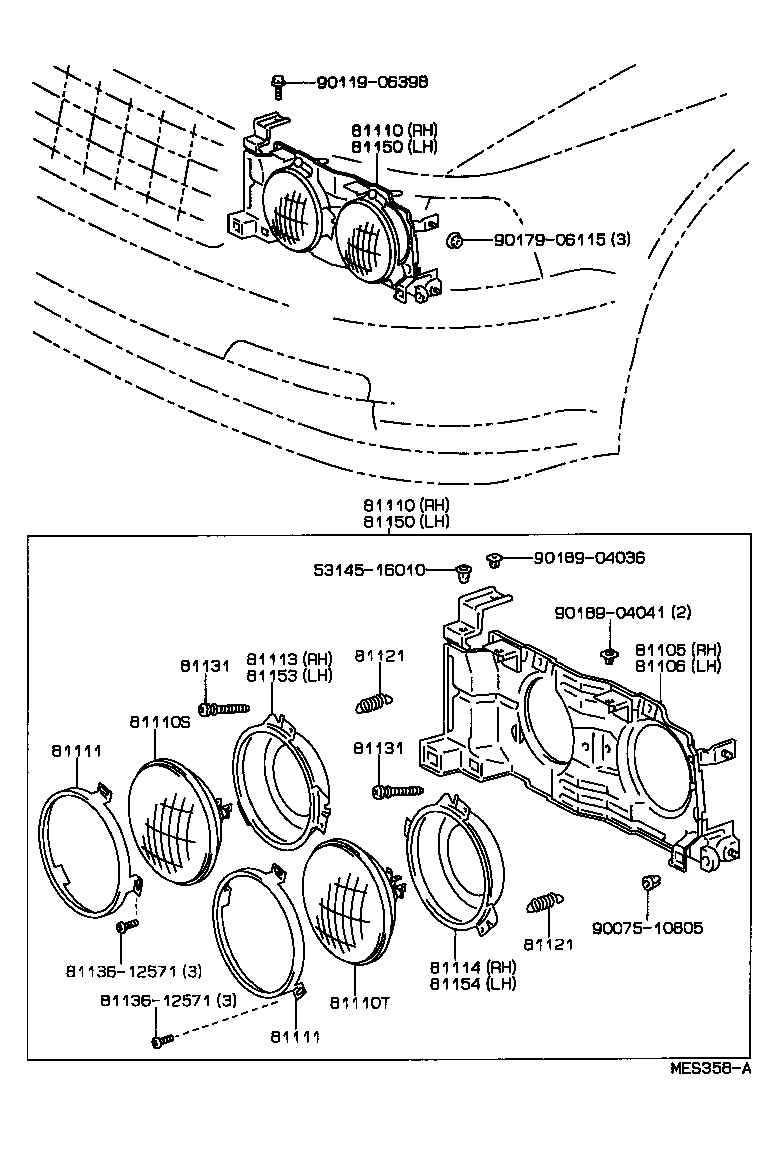

Click highlighted areas on diagram

diagram 5314516010 81105 81106 81110 81110 81110S 81110T 81111 81111 81113 81114 81121 81121 81131 81131 8113612571 8113612571 81150 81150 81153 81154 9007510805 9011906398 9017906115 9018904036 9018904041
Part # Description Qty Price
Common parts
53145-16010
81136-12571
90075-10805
90119-06398
90179-06115
90189-04036
90189-04041
