GS130-AEMRE (1987)
Toyota Crown

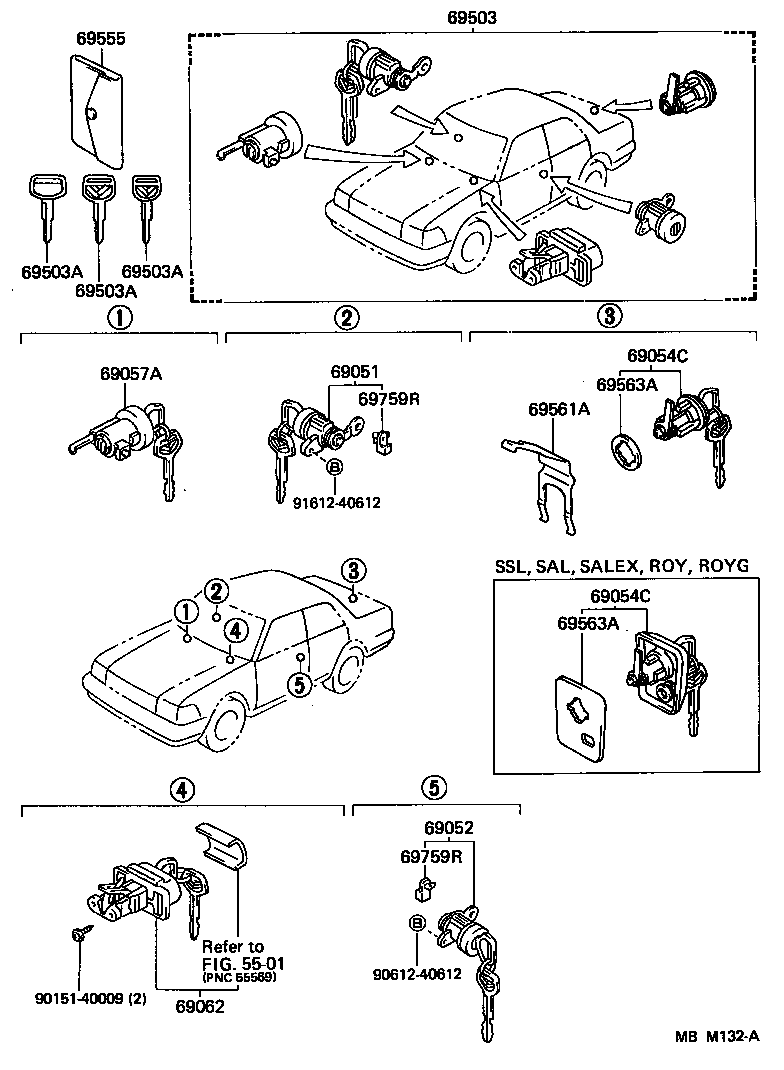

(8709- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-30160 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-30140 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-30140 |
GS130,LS130..(HT,SED)..(DLX,SDX,SPE,STD) |
1 | ||
| 69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-30140 |
GS130,LS130..(HT,SED)..(DLX,SDX,SPE,STD) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-30070 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3010004 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-30430 |
GS130,LS130..SED..(DLX,SDX,STD) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00139 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00130 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00137 |
GS130,131,LS130,MS13#,YS130 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00139 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00130 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00137 |
GS130,131,LS130,MS13#,YS130 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00139 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00130 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00137 |
GS130,131,LS130,MS13#,YS130 ｻﾌﾞｷｰ |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-20010 |
GS130,131,LS130,131,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,STD) |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-20010 |
GS130,131,LS130,131,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,STD) |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
GS13#,LS13#,MS13#,YS130 右側 |
1 | ||
| 69759-30050 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
GS13#,LS13#,MS13#,YS130 右側 |
1 | ||
| 69759-30050 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| Common parts | ||||
| 90151-40009 | ||||
| 90612-40612 | ||||
| 91612-40612 | ||||
| Linked diagrams | ||||
| 5501 | ||||

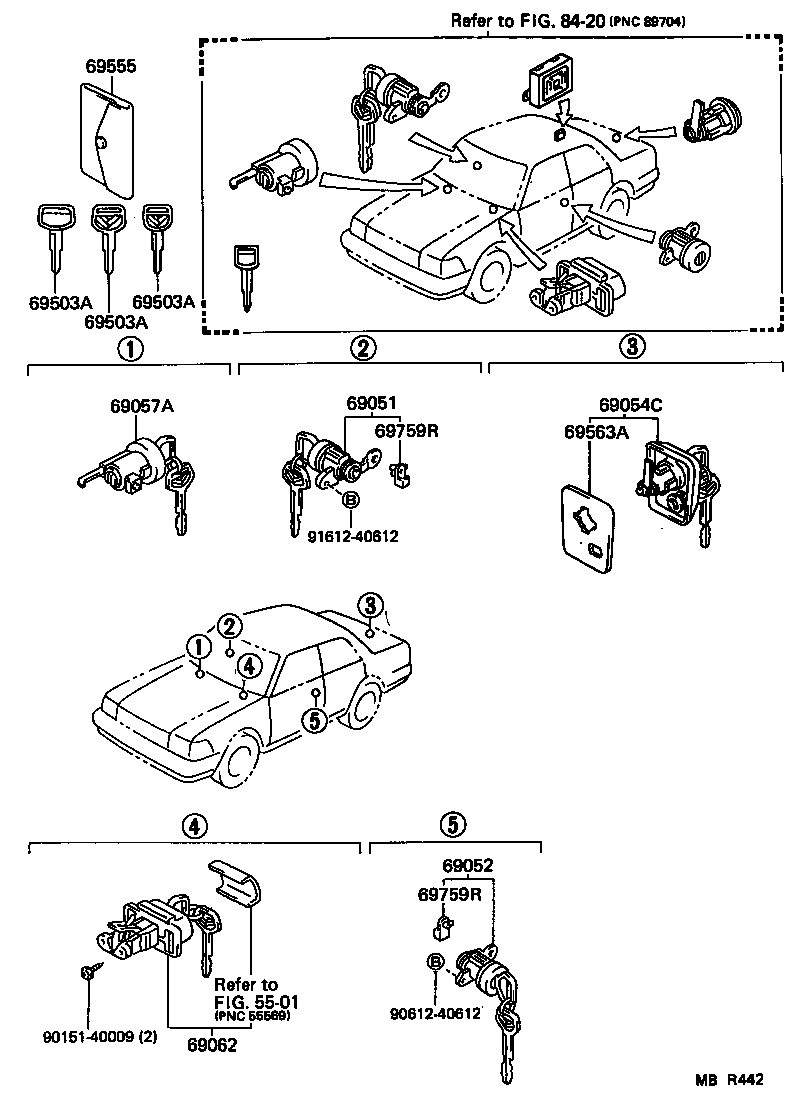

(8709- )HT,SED
W/WIRELESS DOOR LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-30160 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-30140 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-30140 |
GS130,LS130..(HT,SED)..(DLX,SDX,SPE,STD) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-30070 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3010004 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00139 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00130 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00137 |
GS130,131,LS130,MS13#,YS130 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00139 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00130 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00137 |
GS130,131,LS130,MS13#,YS130 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00139 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00130 |
GS13#,LS13#,MS13#,YS130 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00137 |
GS130,131,LS130,MS13#,YS130 ｻﾌﾞｷｰ |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-20010 |
GS130,131,LS130,131,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,STD) |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
GS13#,LS13#,MS13#,YS130 右側 |
1 | ||
| 69759-30050 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
GS13#,LS13#,MS13#,YS130 右側 |
1 | ||
| 69759-30050 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| Common parts | ||||
| 90151-40009 | ||||
| 90612-40612 | ||||
| 91612-40612 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8420 | ||||
