Toyota Crown GS130 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CROWN
GS130-AEMJE (1987)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GS130-AEMJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989

Engine 1GE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8709- )GS131,MS135,137..HTWC,TWC ; (8908-)GS130,LS130,131..SALEX,SDX,SPE,SS

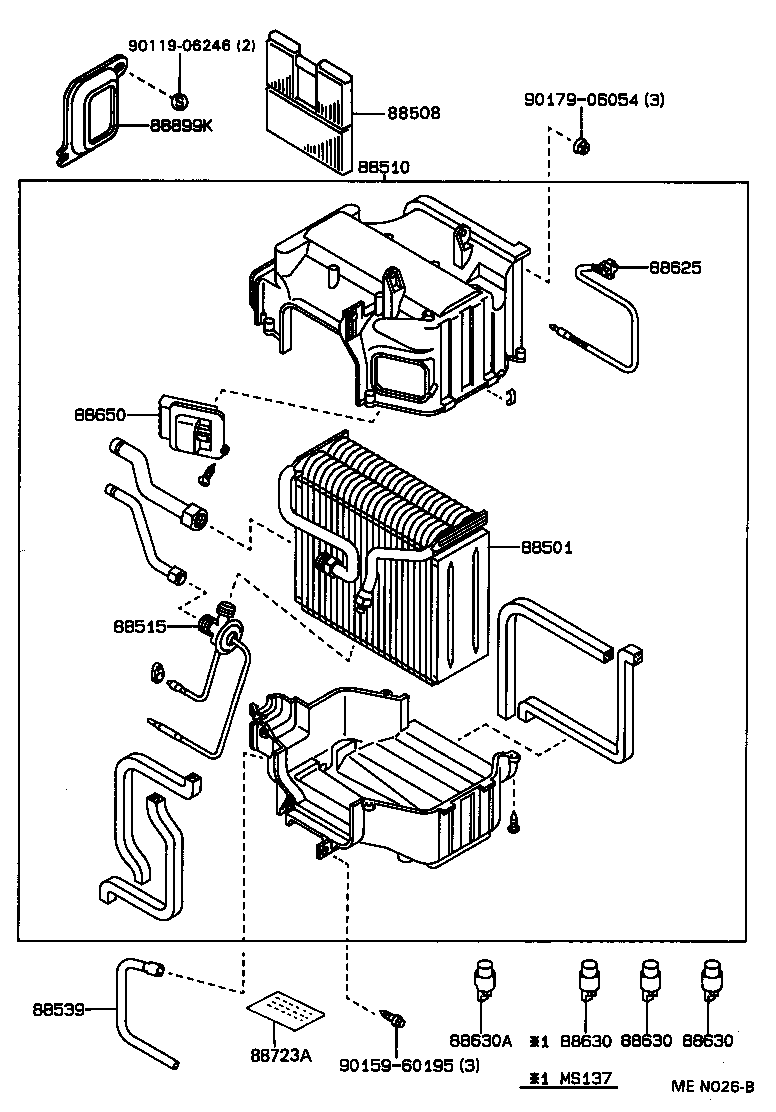

Click highlighted areas on diagram

FRONT (DEALER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) REAR	09/1987 - 01/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88510 - UNIT ASSY, COOLER
88510-3A270	GS131..SSL..SPC;GS130,131,LS130..SALEX FRONT	09/1987 - 08/1989	1
88510-3A270	MS130..SDX;GS130,131,LS130..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) ｵ-ﾄｴｱｺﾝﾃﾞｲｼﾖﾅ,FRONT	09/1987 - 08/1989	1
88510-3A280	MS130..SDX;LS130..DLX,SDX;LS130..(SPE,SSL)..TDE;GS130,131,LS136..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC) ﾏﾆﾕｱﾙｴｱｺﾝﾃﾞｲｼﾖﾅ,FRONT	09/1987 - 08/1989	1
88510-3A310	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30330	LS130..SALEX;GS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL FRONT	09/1987 - 08/1989	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-30750	MS130..SDX;LS130..SALEX;LS130..HT..TD;GS130,YS130..EFI,LPG,SPC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..ROY,ROYG,SALEX,SSL,STD	09/1987 - 08/1989	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88899K - PLATE, COVER
88899-30660	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
Common parts
90119-06246
90159-60195
90179-06054

(8709- )

Click highlighted areas on diagram

FRONT(DEALER OPT)

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	LS136..STD;GS130..EFI;LS130..SALEX;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,MS130,YS130..DLX,SALEX,SDX,SSL,STD FRONT	09/1987 - 08/1989	3
87116-14010	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	12
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) REAR	09/1987 - 01/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88510 - UNIT ASSY, COOLER
88510-3A270	GS131..SSL..SPC;GS130,131,LS130..SALEX FRONT	09/1987 - 08/1989	1
88510-3A270	MS130..SDX;GS130,131,LS130..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) ｵ-ﾄｴｱｺﾝﾃﾞｲｼﾖﾅ,FRONT	09/1987 - 08/1989	1
88510-3A280	MS130..SDX;LS130..DLX,SDX;LS130..(SPE,SSL)..TDE;GS130,131,LS136..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC) ﾏﾆﾕｱﾙｴｱｺﾝﾃﾞｲｼﾖﾅ,FRONT	09/1987 - 08/1989	1
88510-3A310	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30330	LS130..SALEX;GS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL FRONT	09/1987 - 08/1989	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470	GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)	09/1987 - 01/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-30750	MS130..SDX;LS130..SALEX;LS130..HT..TD;GS130,YS130..EFI,LPG,SPC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..ROY,ROYG,SALEX,SSL,STD	09/1987 - 08/1989	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88891 - PACKING (FOR COOLER)
88578-30370	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR,WIRE HARNESS	09/1987 - 01/1991	1
88899K - PLATE, COVER
88899-30660	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
Common parts
88569-30880
88688-3A070
88688-3A080
88899-95A14
90094-90405
90179-08123
93540-14010

(8709- )GS130,131,JZS131,LS130

Click highlighted areas on diagram

REAR(DEALER OPT)

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	LS136..STD;GS130..EFI;LS130..SALEX;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,MS130,YS130..DLX,SALEX,SDX,SSL,STD FRONT	09/1987 - 08/1989	3
87116-14010	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	12
87138C - RESISTOR, BLOWER
87138-30290	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	09/1987 - 01/1991	1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30330	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) REAR	09/1987 - 01/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88510 - UNIT ASSY, COOLER
88510-3A270	GS131..SSL..SPC;GS130,131,LS130..SALEX FRONT	09/1987 - 08/1989	1
88510-3A270	MS130..SDX;GS130,131,LS130..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) ｵ-ﾄｴｱｺﾝﾃﾞｲｼﾖﾅ,FRONT	09/1987 - 08/1989	1
88510-3A280	MS130..SDX;LS130..DLX,SDX;LS130..(SPE,SSL)..TDE;GS130,131,LS136..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC) ﾏﾆﾕｱﾙｴｱｺﾝﾃﾞｲｼﾖﾅ,FRONT	09/1987 - 08/1989	1
88510-3A310	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30330	LS130..SALEX;GS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL FRONT	09/1987 - 08/1989	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88522 - DOOR, COOLING UNIT
88522-3045004	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BLUE,TRIM8#	09/1987 - 08/1989	1
88522-3045006	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 08/1989	1
88522-3045002	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88541 - FAN, BLOWER
88541-30280	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88560 - GRILLE ASSY, COOLER AIR INLET
88561-3032006	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 08/1989	1
88561-3032002	GS130,131,LS130,MS13#..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
88561-3032004	GS130,131,LS130,MS13#..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLUE,TRIM8#	09/1987 - 08/1989	1
88573B - BASE, GRILLE
88573-30500	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)	09/1987 - 08/1989	1
88576E - DUCT, COOLER AIR, NO.1
88576-30770	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88576F - DUCT, COOLER AIR, NO.2
88576-30780	GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)	09/1987 - 01/1991	1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470	GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)	09/1987 - 01/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88690 - VALVE ASSY, COOLER MAGNET
88691-30510	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88891 - PACKING (FOR COOLER)
88578-30370	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR,WIRE HARNESS	09/1987 - 01/1991	1
88921 - FILTER, AIR PURIFIER, NO.1
88926-30130	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88926B - FILTER, AIR PURIFIER
88926-30110	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
Common parts
88467-30280
88467-30290
88469-30310
88519-30250
88569-30720
88688-3A200
88891-30630
90099-00962
90099-00968
90099-02210
90099-05164
90183-04056
90480-25024
93385-16030
93540-54012

ILLUST NO. 1 OF 4(9110-9308)GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ; (9308- )GS130,13

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

Part #	Description	Period	Qty	Price
Common parts
82711-3A690
87116-14010
88626-33010
88688-3A250
90119-06246
90159-60195
90179-06239
93540-14012
93540-15010

ILLUST NO. 1 OF 4(9110- )GS130,136,LS136 ; (9112-9512)YS130

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

Part #	Description	Period	Qty	Price
Common parts
87116-14010
88578-16290
88626-33010
90099-00968
90179-06054
93385-15010
93540-14008
