GS130-AEMJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)EFI

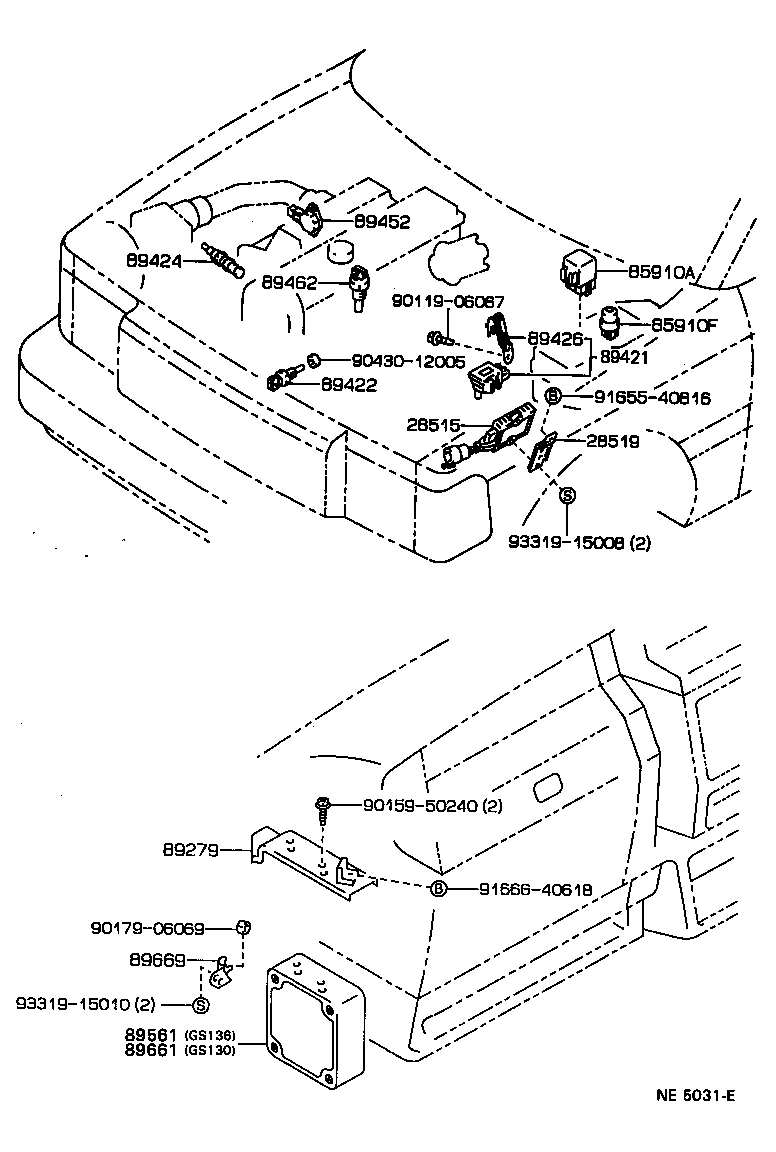

Click highlighted areas on diagram

diagram 28515 28519 85910A 85910F 89279 89421 89422 89424 89426 89452 89462 89561 89661 89669 9011906067 9015950240 9017906069 9043012005 9165540816 9166640618 9331915008 9331915010
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-70040

1GE..GS13#

 1
28515-70040

1GE,1GGZE..GS13#

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70030

1GE,7MGE..GS13#,MS135,137

 1
28519-70030

1GE,1GG#,7MGE..GS13#,MS135,137

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

GS136..HTWC;GS130,131,JZS13#,MS135,137,UZS131..EFI,HTWC,TWC

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-30030

GS13#,MS135,137

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-30010

GS130,131..EFI,HTWC,TWC

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

MS135;GS13#,MS137..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,TWC)

 1
89422-30020

GS13#,MS135,137

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

GS136..HTWC;GS130,131,YS130..EFI,HTWC,LPEFI,TWC

 1
89426 - BRACKET, VACUUM SENSOR
89426-30040

GS130,131..EFI,HTWC,TWC

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28040

GS130,131..EFI

 1
89452-20060

GS130,131..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-20020

GS13#..EFI

 1
89462-40010

GS13#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-30230

GS130,131..EFI

NIPPONDENSO

 1
89661-30240

GS130,131..EFI

TEN

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30020

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
Common parts
90119-06067
90159-50240
90179-06069
90430-12005
91655-40816
91666-40618
93319-15008
93319-15010
