GS130-AEMJE (1987)
Toyota Crown
(8709- )GS130,136,JZS130,LS130,136,YS130
4-LINK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30220 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30220 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30220 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90507-20018 |
LS136,YS130;GS130,136,LS130,MS130..MTM |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90507-20018 |
LS136,YS130;GS130,136,LS130,MS130..MTM |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
YS130..5F;GS131,LS131..ATM;GS130,136,JZS13#,LS130,136,MS13#,UZS131..4FC,4HC,5F |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30100 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30100 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30100 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-31010 |
GS130,136,LS13#,MS130,YS130 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-31010 |
GS130,136,LS13#,MS130,YS130 |
2 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30370 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08059 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30042 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90109-08102 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90461-12019 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91656-40822 | ||||
| 94110-40600 | ||||
| 94611-10601 | ||||
| 96115-40616 | ||||
(8709- )LS136 ; (8709- )GS13#,LS130,131,MS130,YS130..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3006112 |
GS130..5F..(DLX,SAL,SALEX,SDX,SPE);GS136,LS13#..(4FC,5F)..(DLX,SDX,SPE,SSL)..(DSL,EFI,TD) MAROON,TRIM3# |
1 | ||
| 46201-3006116 |
GS130,LS130..5F..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 46201-3006124 |
LS136..DLX;GS130,136,LS130,YS130..5F BLUE,TRIM8# |
1 | ||
| 46201-3006216 |
GS130,LS130..5F..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 46201-3006212 |
GS130..5F..(SAL,SALEX,SDX,SPE)..HTWC;GS130..5F..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS136,LS13#..(4FC,5F)..(DLX,SDX,SPE,SSL)..(DSL,EFI,TD) MAROON,TRIM3# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002020 |
LS136..DLX;GS13#,LS130,YS130..5F BLUE,TRIM8# |
1 | ||
| 46217-2002042 |
GS13#,LS130..5F..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 46217-2002054 |
LS136..DLX;GS13#,LS130,YS130..5F DARK BLUE,TRIM8# |
1 | ||
| 46217-2002020 |
GS130..5F..(SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 46217-1002042 |
LS136..DLX;GS13#,LS130..5F..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 46217-1002010 |
GS130,131,LS130..5F..(ROY,SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 46217-12020D0 |
LS136..DLX;GS130..5F..(SAL,SALEX,SDX,SPE)..HTWC;GS130..5F..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS130..5F..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10085 |
LS136..DLX;GS13#,LS130,131,YS130..5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-30010 |
LS136..DLX;GS13#,LS130,131,YS130..5F |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-30010 |
LS136..DLX;GS13#,LS130,131,YS130..5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30480 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30480 |
LS136..DLX;GS130,136,LS130,YS130..5F |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
LS136..DLX;GS13#,LS130,131,YS130..5F |
1 | ||
| 46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1 | ||||
| 46451-30080 |
GS131..5F;GS131..SSL..SPC;GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1 | ||||
| 46451-30080 |
GS131..5F;GS131..SSL..SPC;GS130,136,LS13#,MS130,YS130 |
1 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90119-08146 | ||||
| 90179-08146 | ||||
| 90463-12570 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01106 | ||||
| 91651-40816 | ||||
| 94611-10800 | ||||
| 95381-02520 | ||||

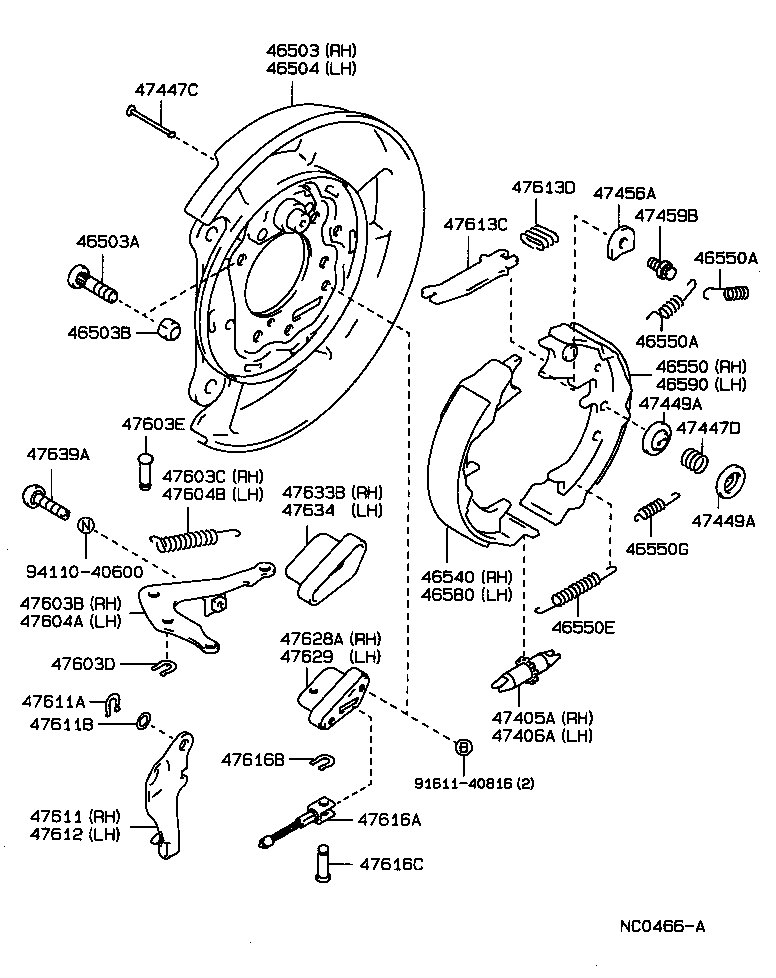

(8709-8908)GS130,LS130..SAL,SALEX
4-LINK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30040 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 42184-30030 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
8 | ||
| 46503B - NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 90179-10030 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
8 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30040 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-30021 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-30021 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20031 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20031 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14033 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12029 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46580-30021 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-30021 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22010 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16050 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
8 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
8 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 47603B - CRANK SUB-ASSY, PARKING BRAKE BELL, RH | ||||
| 47603-30010 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47603C - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH) | ||||
| 90506-20001 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47603D - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47603E - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08075 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47604A - CRANK SUB-ASSY, PARKING BRAKE BELL,LH | ||||
| 47604-30010 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47604B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH) | ||||
| 90506-20002 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-30050 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 厚さ=0.3 |
1 | ||
| 90564-09185 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 厚さ=0.6 |
1 | ||
| 90564-09186 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 厚さ=0.9 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-30050 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47613-30040 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90501-12043 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47616A - WIRE, PARKING BRAKE | ||||
| 47616-30050 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47616B - WASHER, TYPE C(FOR PARKING BRAKE WIRE) | ||||
| 90213-04008 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47616C - PIN(FOR PARKING BRAKE WIRE) | ||||
| 90249-07074 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| 47628A - BRACKET, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47628-30060 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47629 - BRACKET, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47629-30050 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47633B - BOOT, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47633-30040 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47634 - BOOT, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47634-30030 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
1 | ||
| 47639A - BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE) | ||||
| 47639-30020 |
GS130,LS130..(HT,SED)..(SAL,SALEX) |
2 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-40600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
