GS130-AEMJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)1GE

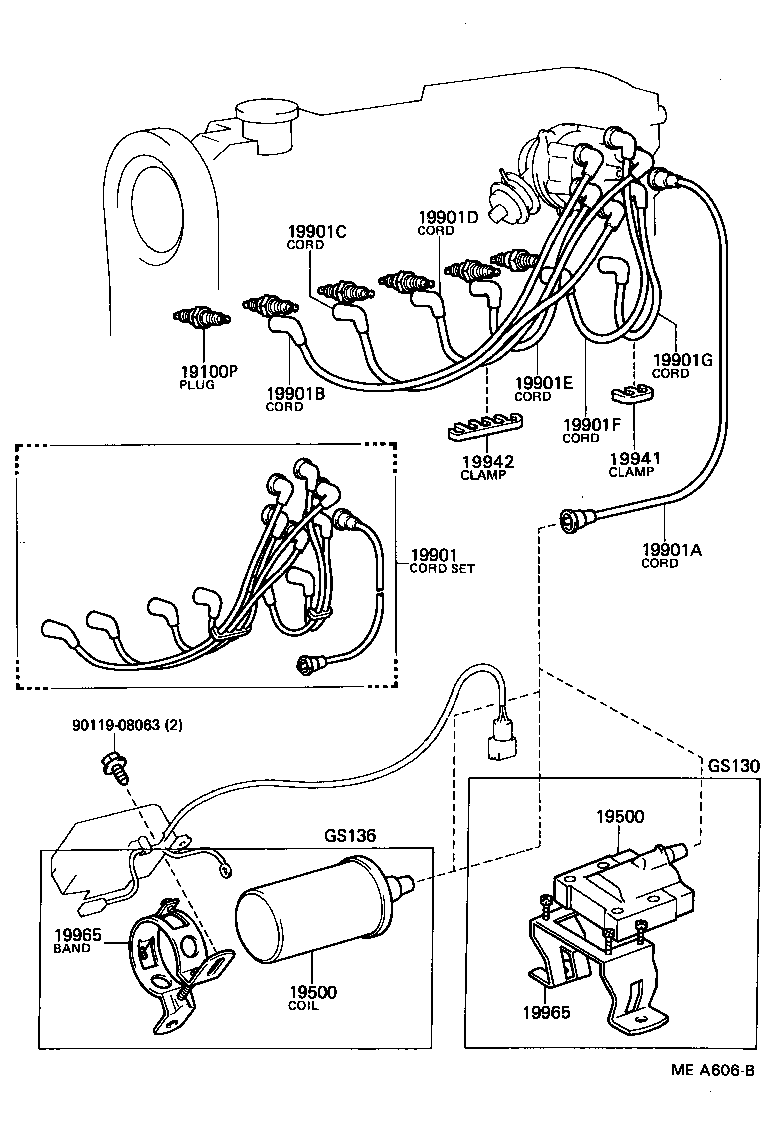

Click highlighted areas on diagram

diagram 19100P 19500 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19965 19965 9011908063
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01120

1GE..GS13#

BRE529Y

 6
90919-01119

1GE..GS13#

J16BR−U

 6
19500 - COIL ASSY, IGNITION
90919-02175

1GE,1GGE..GS130,131

 1
19500 - COIL ASSY, IGNITION
90919-02175

1GE,1GGE..GS130,131

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21254

1GE..GS13#

 1
19901A - CORD, COIL RESISTIVE
90919-13093

1GE..GS13#

SUMITOMO

 1
90919-13153

1GE..GS13#

YAZAKI

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12336

1GE..GS13#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12337

1GE..GS13#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12338

1GE..GS13#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12339

1GE..GS13#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12340

1GE..GS13#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12341

1GE..GS13#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00208

1GE..GS13#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00214

1GE..GS13#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03105

1GE,1GGE..GS130,131

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03105

1GE,1GGE..GS130,131

 1
Common parts
90119-08063
