GS130-AEMFK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE

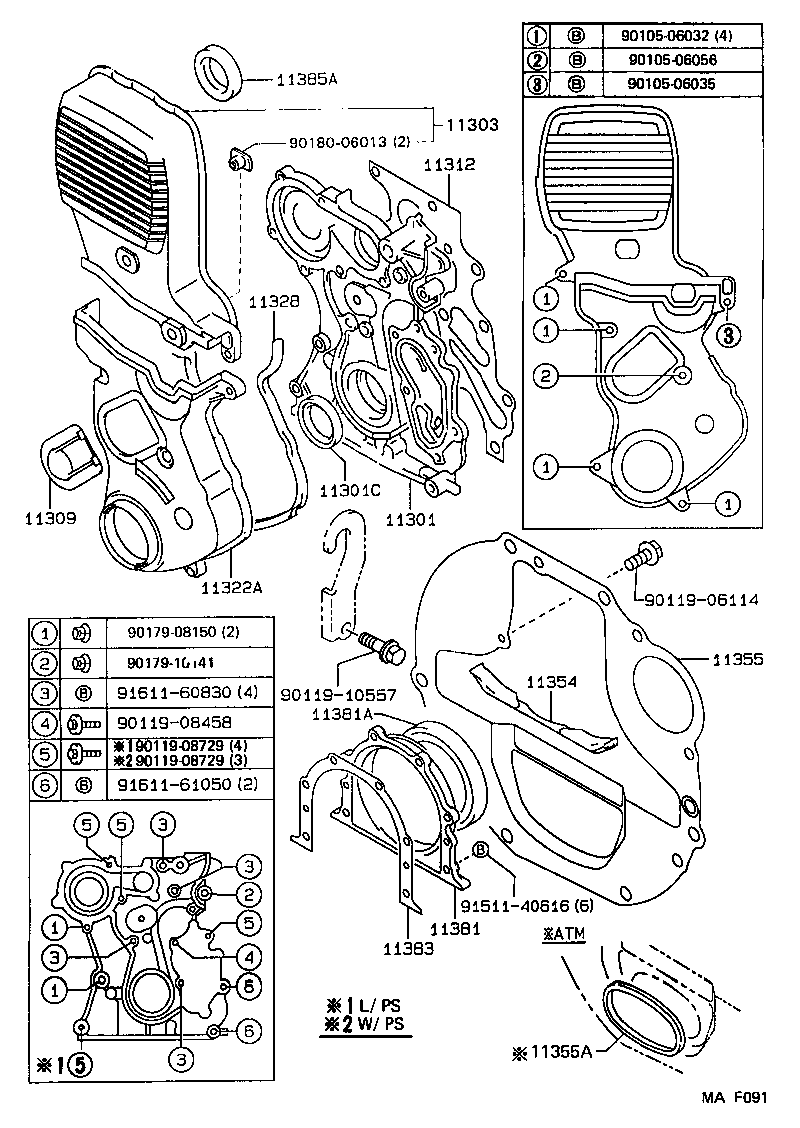

Click highlighted areas on diagram

diagram 11301 11301C 11303 11309 11312 11322A 11328 11354 11355 11355A 11381 11381A 11383 11385A 9010506032 9010506035 9010506056 9011906114 9011908458 9011908729 9011908729 9011910557 9017908150 9017910141 9018006013 9151140616 9161160830 9161161050
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-70040

1GFE..GS13#

 1
11311-79035

1GFE..GS13#

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003

1GE,1GFE,1GGZE,1GGE..GS13#

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-70020

1GFE..GS13#

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-88300

1GFE,1GGZE,1GGE..GS13#

 1
11312 - GASKET, FRONT END PLATE
11312-70014

1GFE,1GGP,1GGZE..GS13#

 1
11322A - COVER, TIMING BELT, NO.1
11302-70040

1GFE..GS13#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70030

1GFE..GS13#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1GE,1GFE,1GG#..GS13#

 1
11355 - PLATE, REAR END
11355-70010

1GE,1GFE,1GGP,1GGE..GS13#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1GE,1GFE,1GG#..GS13#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75004

1GE,1GFE,1GG#..GS13#

 1
90311-75007

1GFE,1GGP,1GGZE..GS13#

 1
90311-75007

1GFE,1GG#..GS13#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70010

1GE,1GFE,1GGP,1GGZE..GS13#

 1
11383-70011

1GFE,1GGP,1GGZE..GS13#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35008

1GFE..GS13#

 1
90311-35022

1GFE..GS13#

NOK

 1
90311-35013

1GFE..GS13#

ARS

 1
Common parts
90105-06032
90105-06035
90105-06056
90119-06114
90119-08458
90119-08729
90119-10557
90179-08150
90179-10141
90180-06013
91511-40616
91611-60830
91611-61050
