GS130-AEMFK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE

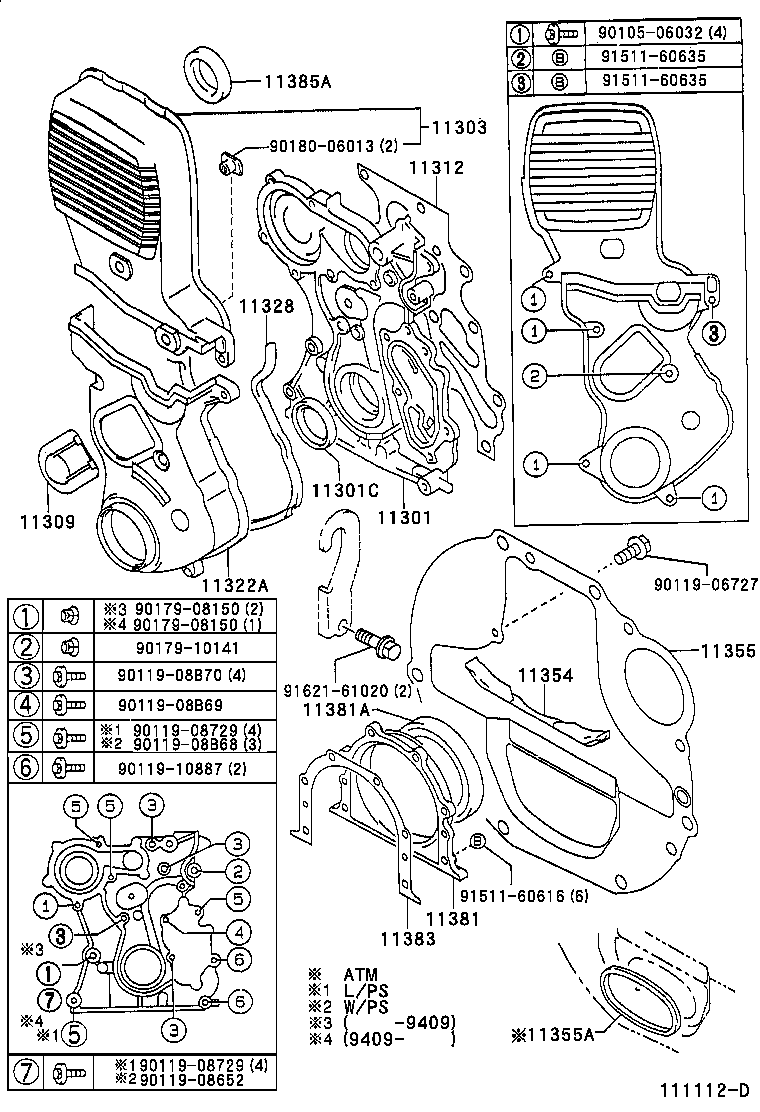

Click highlighted areas on diagram

diagram 11301 11301C 11303 11309 11312 11322A 11328 11354 11355 11355A 11381 11381A 11383 11385A 9010506032 9011906727 9011908652 9011908729 9011908729 9011908B68 9011908B69 9011908B70 9011910887 9017908150 9017908150 9017910141 9018006013 9151160616 9151160635 9151160635 9162161020
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-79035

1GFE..GS13#

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003

1GFE..GS13#

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-70020

1GFE..GS13#

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-88300

1GFE..GS13#

 1
11312 - GASKET, FRONT END PLATE
11312-70014

1G#..GS13#

 1
11322A - COVER, TIMING BELT, NO.1
11302-70040

1GFE..GS13#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70030

1GFE..GS13#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1G#..GS13#

 1
11355 - PLATE, REAR END
11355-70010

1G#..GS130,136..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1G#..GS13#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75007

1G#..GS13#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70011

1G#..GS13#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35013

1GFE..GS13#

ARS

 1
90311-35022

1GFE..GS13#

NOK

 1
Common parts
90105-06032
90119-06727
90119-08652
90119-08729
90119-08B68
90119-08B69
90119-08B70
90119-10887
90179-08150
90179-10141
90180-06013
91511-60616
91511-60635
91621-61020
