GS130-AEMDK (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
1GFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )DLX,SALEX,SDX..HTWC

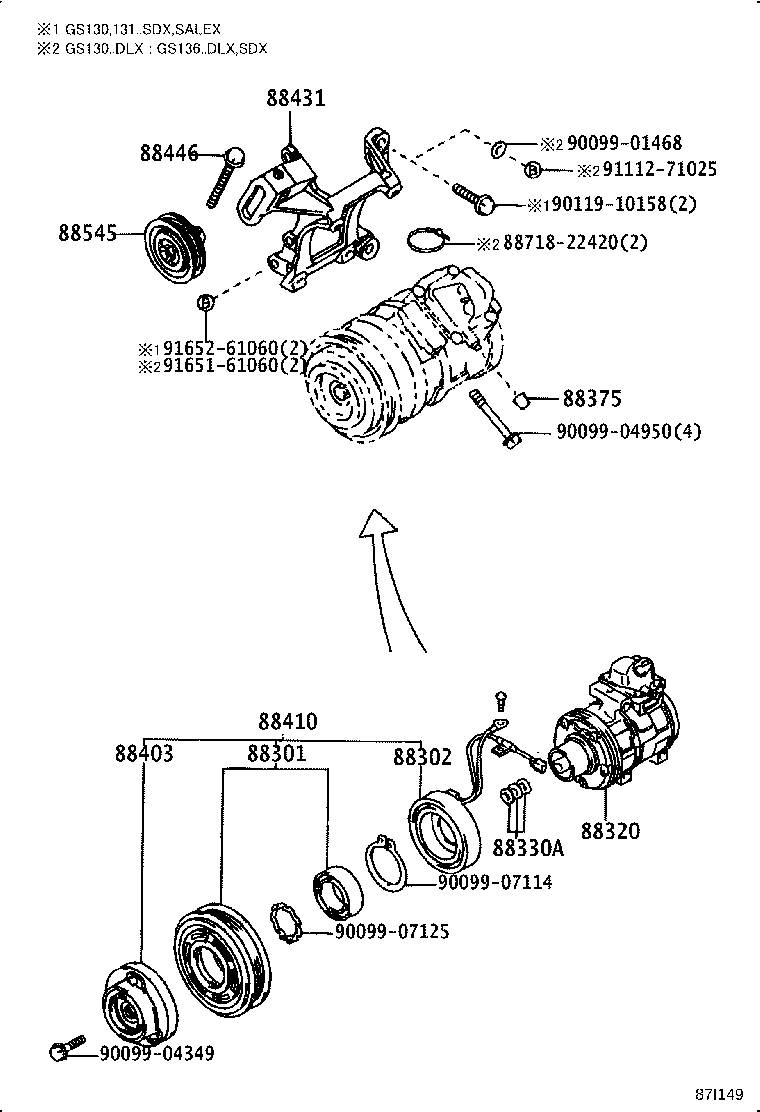

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12160 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30510 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 88411-2B040 |
GS13#..HTWC |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30421 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GS13#,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
GS13#,JZS130,131,LS130,131..HTWC,TDE,TWC |
1 | ||
| 88403-16011 |
GS13#,JZS130,131,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88403-3A040 |
GS13#..HTWC |
1 | ||
| 88403-30290 |
GS13#,LS13#..HTWC,TDE |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-30590 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 88410-3A040 |
GS13#..HTWC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24060 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 90099-04306 |
GS13#,YS130 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
GS13#..(DLX,SALEX,SDX)..HTWC |
1 | ||
| Common parts | ||||
| 88718-22420 | ||||
| 90099-01468 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-10158 | ||||
| 91112-71025 | ||||
| 91651-61060 | ||||
| 91652-61060 | ||||
