GS130-AEMDK (1991)
Toyota Crown

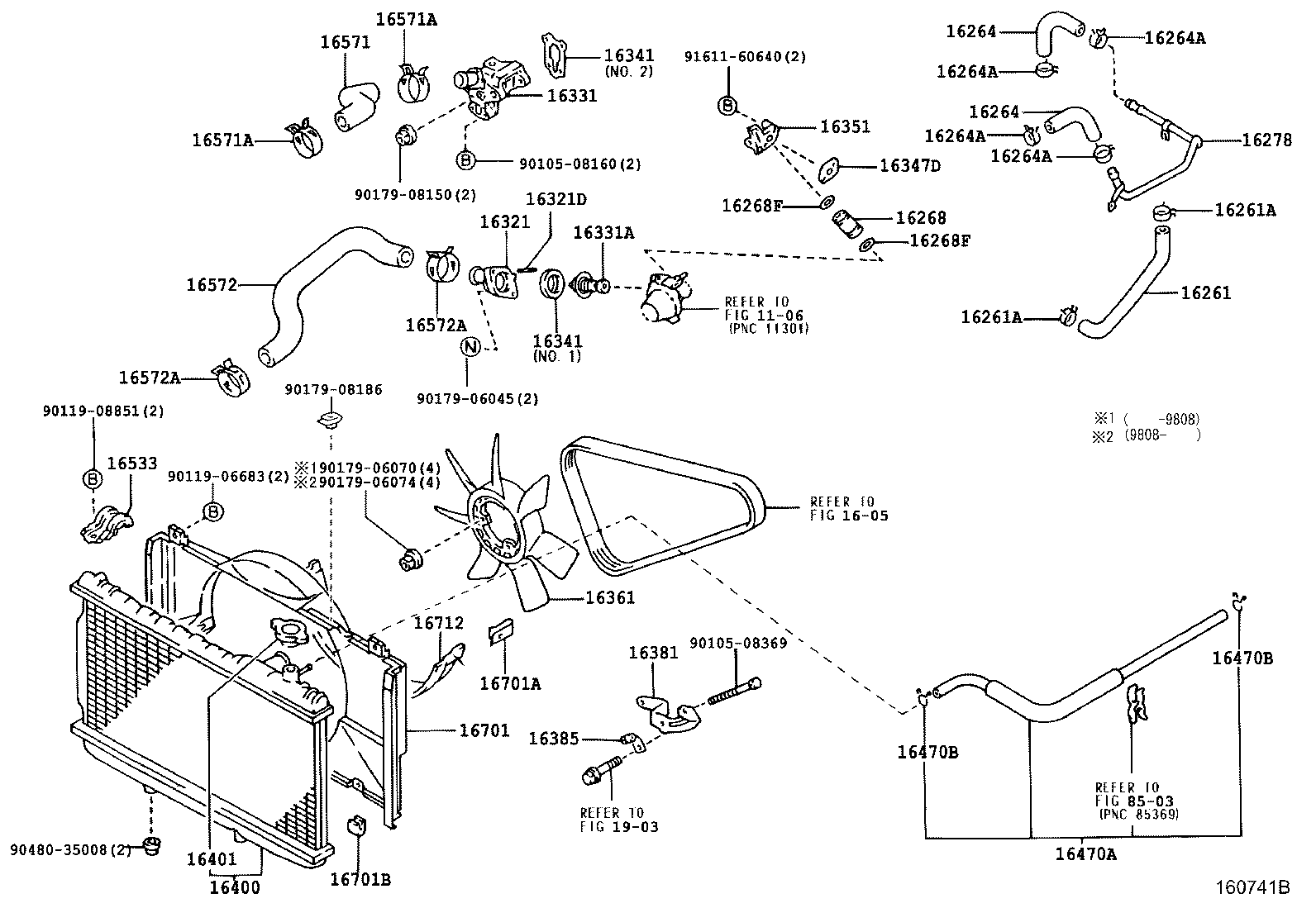

ILLUST NO. 1 OF 2(9110- )1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70051 |
1GFE..GS13# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13051 |
1GFE..GS13# |
2 | ||
| 90467-13001 |
1GFE..GS13# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13051 |
1GFE..GS13# |
2 | ||
| 90467-13001 |
1GFE..GS13# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70060 |
1GFE..GS13# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70060 |
1GFE..GS13# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GFE..GS13# |
4 | ||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GFE..GS13# |
4 | ||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GFE..GS13# |
4 | ||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GFE..GS13# |
4 | ||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-70031 |
1GFE..GS13# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-17009 |
1G#..GS13# |
2 | ||
| 96761-24018 |
1G#..GS13# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-17009 |
1G#..GS13# |
2 | ||
| 96761-24018 |
1G#..GS13# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70061 |
1GFE..GS13# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-70030 |
1GFE..GS13# |
1 | ||
| 16321D - BOLT, STUD(FOR WATER INLET) | ||||
| 16193-63010 |
1GFE..GS13# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-70070 |
1GFE..GS13# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03081 |
1GFE..GS13# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1GFE..GS13# NO.1 |
1 | ||
| 16341-70031 |
1GFE..GS13# NO.2 |
1 | ||
| 16341-35010 |
1GFE..GS13# NO.1 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1GFE..GS13# NO.1 |
1 | ||
| 16341-70031 |
1GFE..GS13# NO.2 |
1 | ||
| 16341-35010 |
1GFE..GS13# NO.1 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-70021 |
1GFE..GS13# |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-70010 |
1GFE..GS13# |
1 | ||
| 16361 - FAN | ||||
| 16361-70040 |
1GFE..GS13# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-70050 |
1GFE..GS13# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70020 |
1GFE..GS13# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70440 |
1GFE..GS130,136..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1G#..GS13# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85319-30120 |
1G#..GS13# |
1 | ||
| 85399-30280 |
1G#..GS13# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GS13# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GS13# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70040 |
1G#..GS13# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70260 |
1GFE..GS13# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1G#..GS13# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1G#..GS13# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70200 |
1GFE..GS13# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37006 |
1G#..GS13# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37006 |
1G#..GS13# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70070 |
1GFE..GS13# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1G#..GS13# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1G#..GS13# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70050 |
1G#..GS13# |
1 | ||
| Common parts | ||||
| 90105-08160 | ||||
| 90105-08369 | ||||
| 90119-06683 | ||||
| 90119-08851 | ||||
| 90179-06045 | ||||
| 90179-06070 | ||||
| 90179-06074 | ||||
| 90179-08150 | ||||
| 90179-08186 | ||||
| 90480-35008 | ||||
| 91611-60640 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 1903 | ||||
| 8503 | ||||
ILLUST NO. 2 OF 2(9110- )1G#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-70440 |
1GFE..GS130,136..MTM |
1 | ||
| 16400-70440 |
1GFE..GS130,136..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1G#..GS13# |
1 | ||
| 23322-54010 |
1G#..GS13# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1G#..GS13# |
1 | ||
| 96711-19007 |
1G#..GS13# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1G#..GS13# |
1 | ||
| 16401-72090 |
1G#..GS13# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-46080 |
1GFE..GS130,131;1GFE..GS136..MTM |
1 | ||
| 16403-46080 |
1GFE..GS130,131;1GFE..GS136..MTM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-70410 |
1G#..GS130,131;1GFE..GS136..MTM |
1 | ||
| 16442-70410 |
1G#..GS130,131;1GFE..GS136..MTM |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-70410 |
1G#..GS130,131;1GFE..GS136..MTM |
1 | ||
| 16451-70410 |
1G#..GS130,131;1GFE..GS136..MTM |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-70410 |
1GFE..GS130,131;1G#..GS130,136..MTM |
1 | ||
| 16452-70410 |
1GFE..GS130,131;1G#..GS130,136..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-70410 |
1GFE..GS130,131;1G#..GS130,136..MTM |
1 | ||
| 16462-70410 |
1GFE..GS130,131;1G#..GS130,136..MTM |
1 | ||
