GS130-AEMDK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE

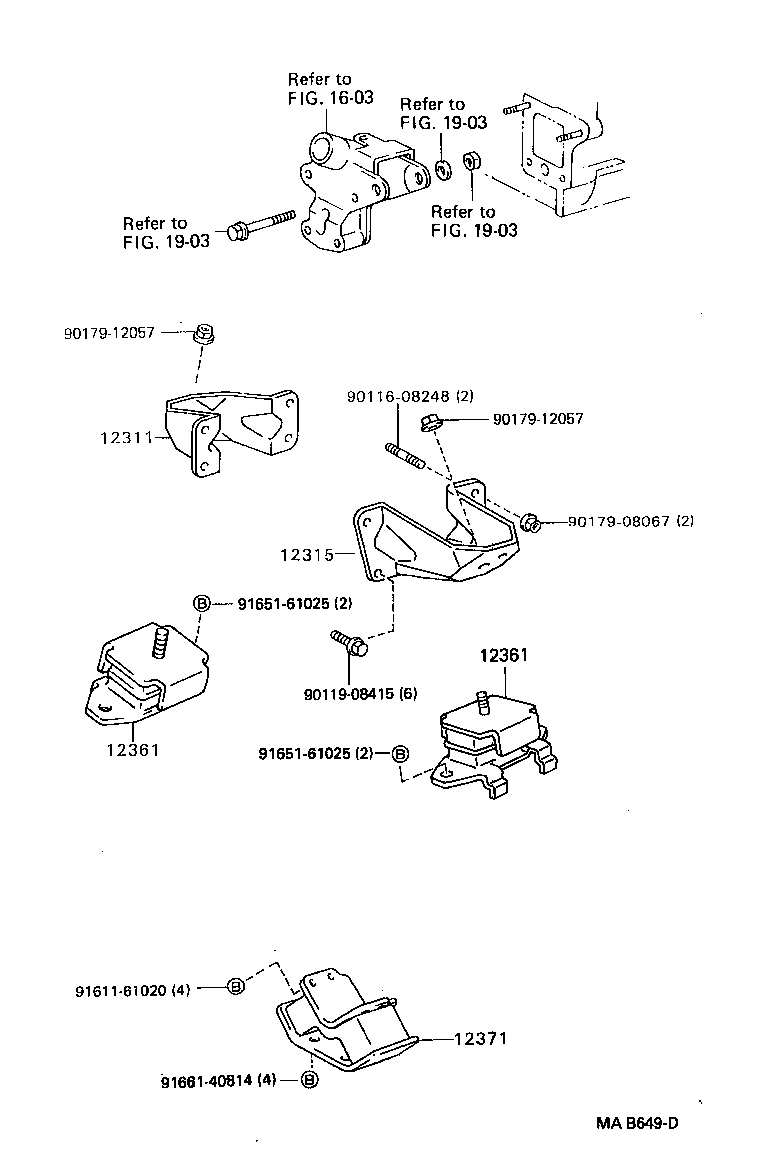

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 1603 1903 1903 1903 9011608248 9011908415 9017908067 9017912057 9017912057 9161161020 9165161025 9165161025 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70100

1G#..GS13#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70070

1G#..GS13#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70142

1GFE..GS13#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70142

1GFE..GS13#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-70040

1G#..GS13#

 1
12371-70041

1G#..GS13#

 1
Common parts
90116-08248
90119-08415
90179-08067
90179-12057
91611-61020
91651-61025
91661-40814
Linked diagrams
1603
1903
