GS130-AEMDK (1988)
Toyota Crown
(8709-8908)GS13#

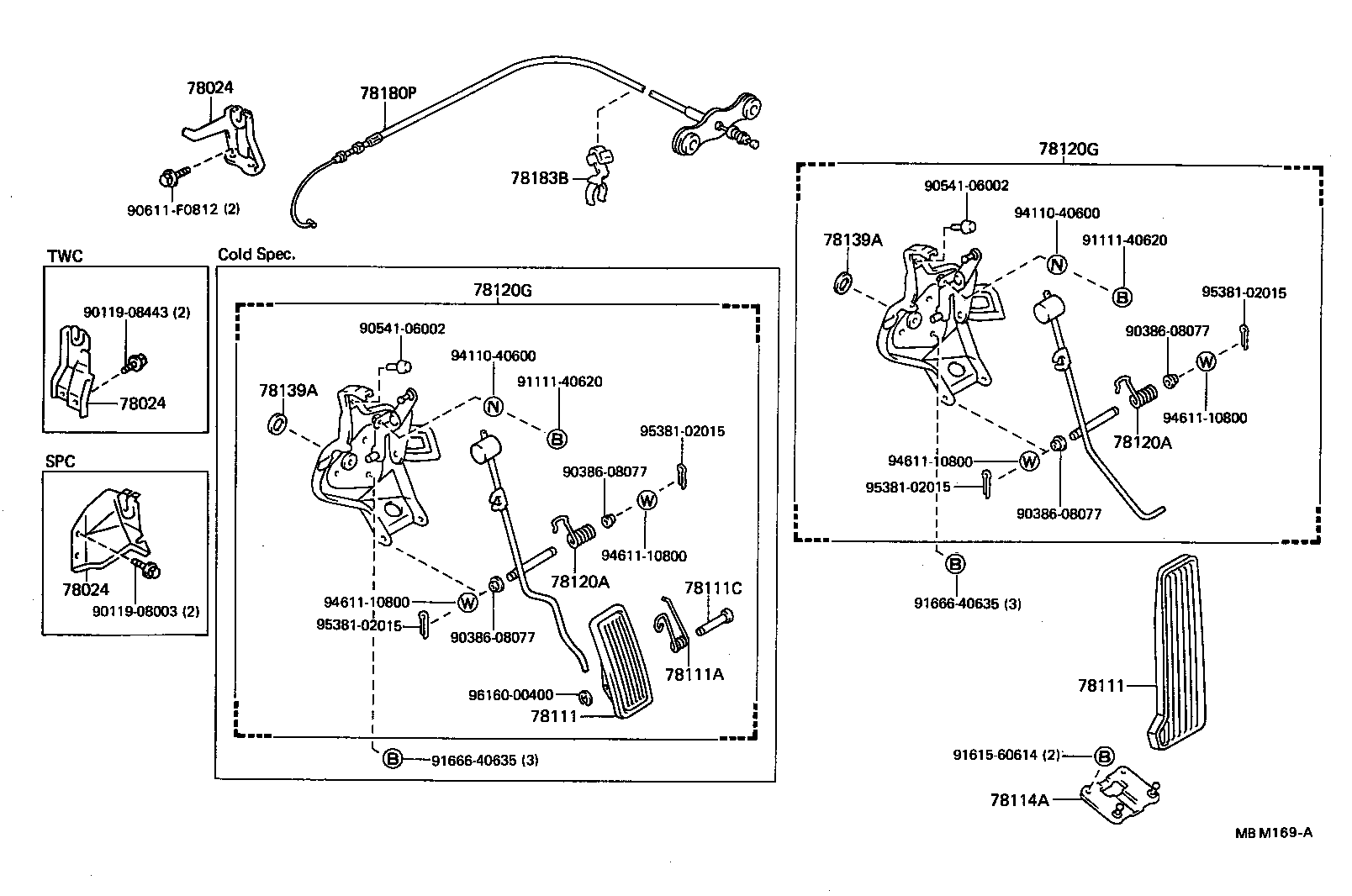

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30100 |
GS13#..HTWC |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30100 |
GS13#..HTWC |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30100 |
GS13#..HTWC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18071 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05043 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-28003 |
GS13#..MTM |
1 | ||
| 90508-29010 |
GS13#..MTM..(EFI,HTWC,TWC) |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-28003 |
GS13#..MTM |
1 | ||
| 90508-29010 |
GS13#..MTM..(EFI,HTWC,TWC) |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30560 |
GS13#..MTM |
1 | ||
| 78120-30600 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 78120-30630 |
GS13#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30640 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30531 |
GS13#..MTM..(HTWC,TWC) |
1 | ||
| 78120-30691 |
GS13#..MTM..(HTWC,TWC) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30560 |
GS13#..MTM |
1 | ||
| 78120-30600 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 78120-30630 |
GS13#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30640 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30531 |
GS13#..MTM..(HTWC,TWC) |
1 | ||
| 78120-30691 |
GS13#..MTM..(HTWC,TWC) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2 | ||||
| 78139-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2 | ||||
| 78139-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-30730 |
GS130,131..HTWC |
1 | ||
| 78180-30731 |
GS13#..HTWC |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-30090 |
GS130,131,LS13#,MS13#,YS130..DSL,LPG,SPC,TD,TDE,TWC |
1 | ||
| 78183-30070 |
GS13#,JZS13#,LS13#,MS135,YS130 |
1 | ||
| Common parts | ||||
| 90119-08003 | ||||
| 90119-08443 | ||||
| 90386-08077 | ||||
| 90541-06002 | ||||
| 90611-F0812 | ||||
| 91111-40620 | ||||
| 91615-60614 | ||||
| 91666-40635 | ||||
| 94110-40600 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
(8908- )GS13#..HTWC,SPC,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30100 |
GS13#..HTWC |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30100 |
GS13#..HTWC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18071 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05043 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-28003 |
GS13#..MTM |
1 | ||
| 90508-29010 |
GS13#..MTM..(EFI,HTWC,TWC) |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-28003 |
GS13#..MTM |
1 | ||
| 90508-29010 |
GS13#..MTM..(EFI,HTWC,TWC) |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30560 |
GS13#..MTM |
1 | ||
| 78120-30600 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 78120-30630 |
GS13#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30640 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30531 |
GS13#..MTM..(HTWC,TWC) |
1 | ||
| 78120-30691 |
GS13#..MTM..(HTWC,TWC) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30560 |
GS13#..MTM |
1 | ||
| 78120-30600 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 78120-30630 |
GS13#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30640 |
GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30531 |
GS13#..MTM..(HTWC,TWC) |
1 | ||
| 78120-30691 |
GS13#..MTM..(HTWC,TWC) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2 | ||||
| 78139-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2 | ||||
| 78139-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-30730 |
GS130,131..HTWC |
1 | ||
| 78180-30731 |
GS13#..HTWC |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-30090 |
GS130,131,LS13#,MS13#,YS130..DSL,LPG,SPC,TD,TDE,TWC |
1 | ||
| 78183-30070 |
GS13#,JZS13#,LS13#,MS135,YS130 |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 90386-08077 | ||||
| 90541-06002 | ||||
| 91111-40620 | ||||
| 91611-F0812 | ||||
| 91611-F0814 | ||||
| 91615-60614 | ||||
| 91666-40635 | ||||
| 94110-40600 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
