GS130-AEMDE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

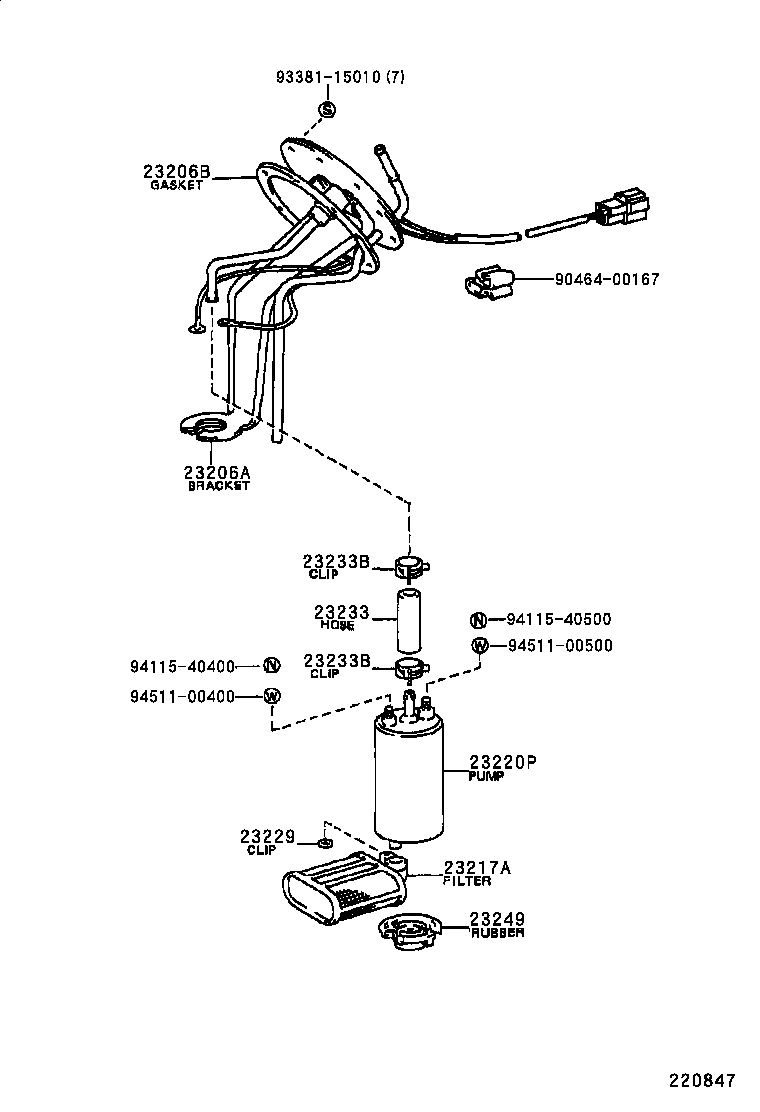

ILLUST NO. 3 OF 3(8709- )1GE,1GFE,1GG#..GS130,131..HT,SED

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9046400167 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23206A - BRACKET, FUEL PUMP
23206-70220

1GE,1GFE..GS130..HT,SED

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23217A - FILTER, FUEL PUMP
23217-16030

1GE,1GFE,1GG#..GS130,131..HT,SED

 1
23220P - PUMP ASSY, FUEL
23220-43070

1GE,1GFE,1GGE..GS130,131..HT,SED

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23233 - HOSE, FUEL PUMP
23239-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
Common parts
90464-00167
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500

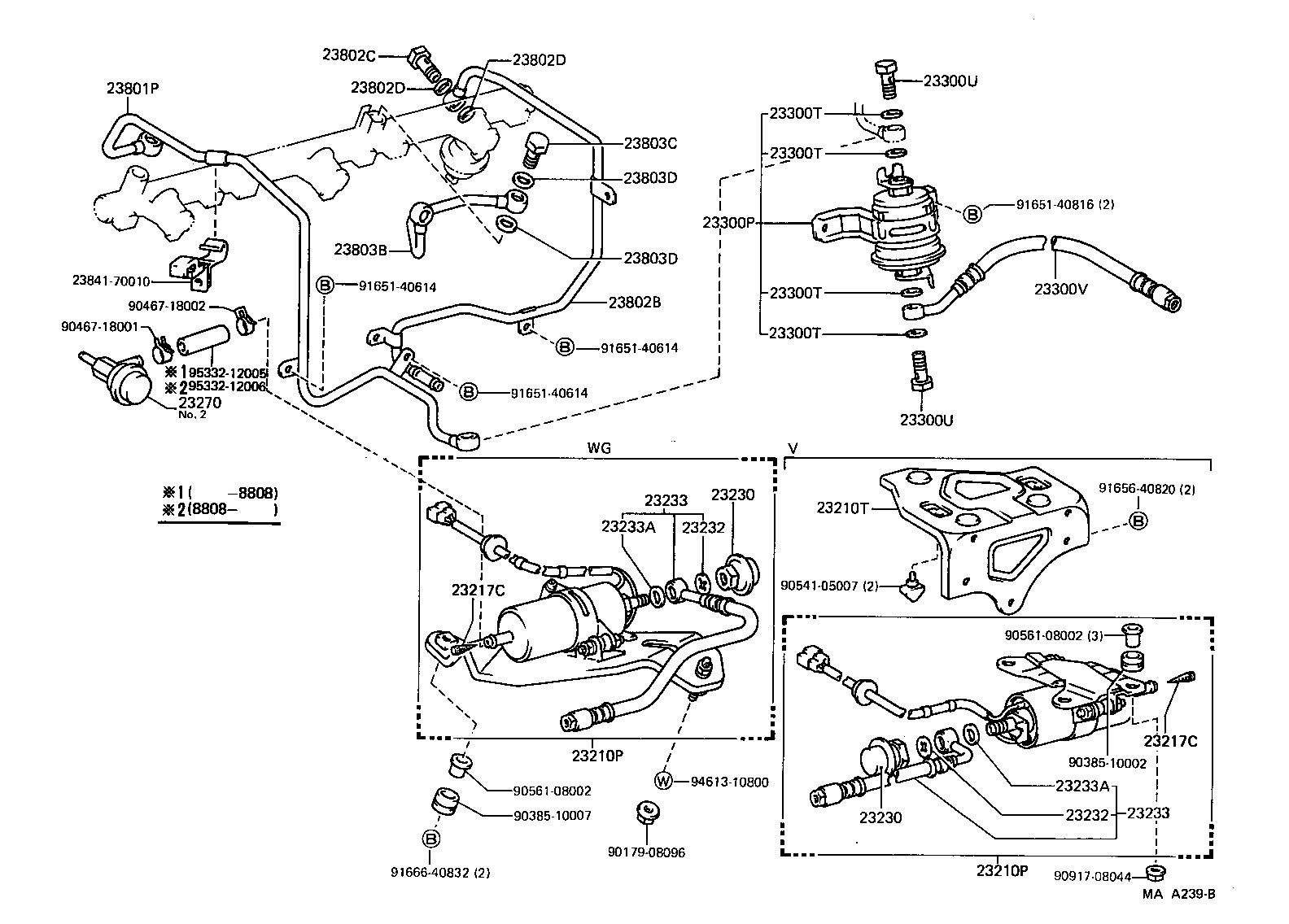

ILLUST NO. 2 OF 3(8709-8908)1GE

Click highlighted areas on diagram

diagram 23210P 23210P 23210T 23217C 23217C 23230 23230 23232 23232 23233 23233 23233A 23233A 23270 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23801P 23802B 23802C 23802D 23802D 23803B 23803C 23803D 23803D 2384170010 9017908096 9038510002 9038510007 9046718001 9046718002 9054105007 9056108002 9056108002 9091708044 9165140614 9165140614 9165140614 9165140816 9165640820 9166640832 9461310800 9533212005 9533212006
Part # Description Qty Price
23233 - HOSE, FUEL PUMP
23239-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23233 - HOSE, FUEL PUMP
23239-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70050

1GE..GS130,131

NO.1

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79015

1GE,1GFE..GS13#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE..GS13#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE..GS13#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE..GS13#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE..GS13#

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GE..GS13#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GE..GS13#

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01346

1GE,1GFE,1GGZE,1GGE..GS13#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70030

1GE..GS13#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-70040

1GE..GS13#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08006

1GE..GS13#

 1
90401-08003

1GE..GS13#

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08005

1GE..GS13#

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08005

1GE..GS13#

 2
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70030

1GE..GS13#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GE,1GG#..GS13#

 2
90401-08006

1GE,1GGE..GS13#

 2
90401-08003

1GE..GS13#

 3
90401-08006

1GE,1GFE,1GG#..GS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GG#..GS13#

 4
90430-08005

1GE,1GFE,1GG#..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GG#..GS13#

 4
90430-08005

1GE,1GFE,1GG#..GS13#

 4
Common parts
23841-70010
90179-08096
90385-10002
90385-10007
90467-18001
90467-18002
90541-05007
90561-08002
90917-08044
91651-40614
91651-40816
91656-40820
91666-40832
94613-10800
95332-12005
95332-12006

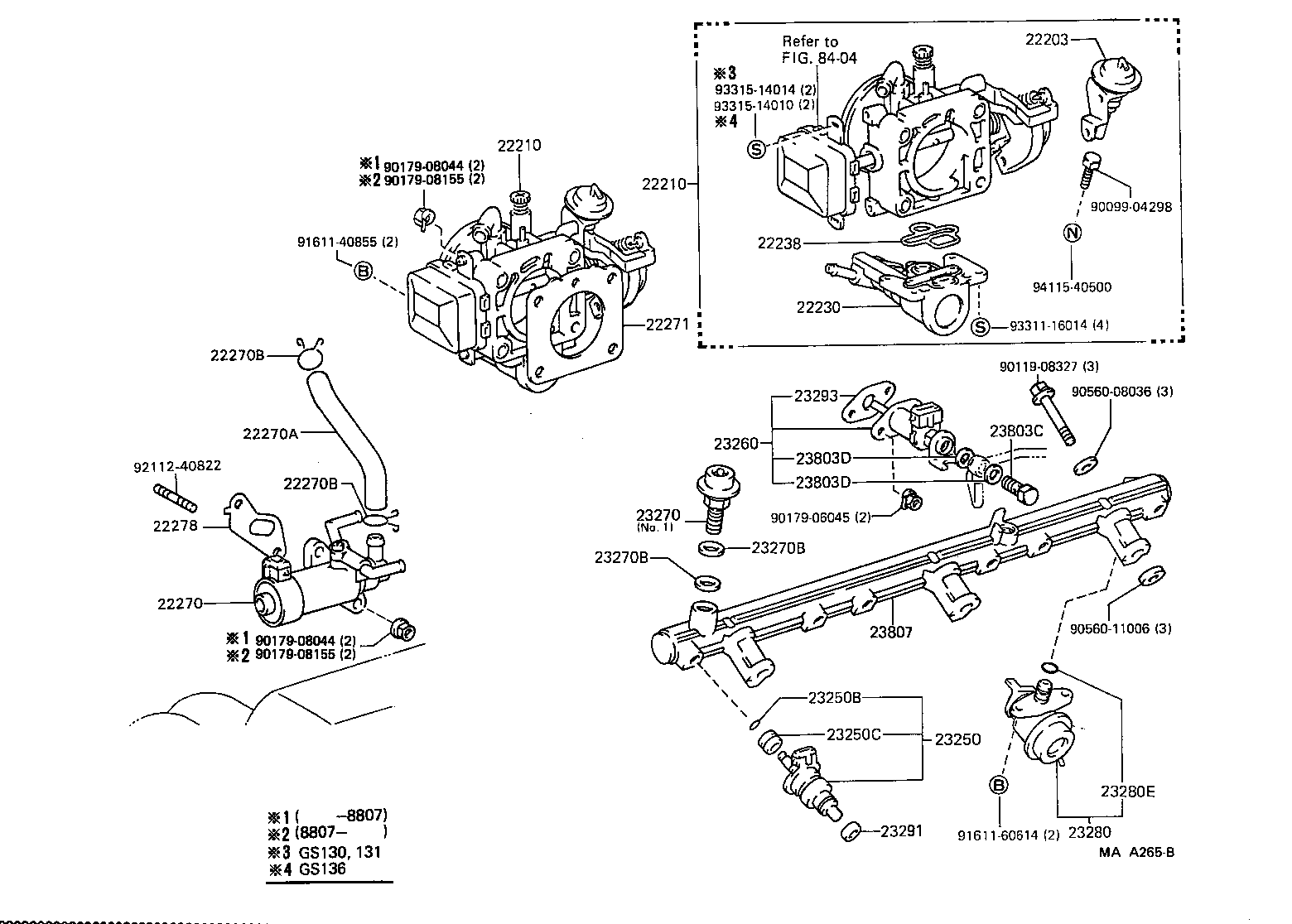

ILLUST NO. 1 OF 3(8709-8908)1GE

Click highlighted areas on diagram

diagram 22203 22210 22210 22230 22238 22270 22270A 22270B 22270B 22271 22278 23250 23250B 23250C 23260 23270 23270B 23270B 23280 23280E 23291 23293 23803C 23803D 23803D 23807 8404 9009904298 9011908327 9017906045 9017908044 9017908044 9017908155 9017908155 9056008036 9056011006 9161140855 9161160614 9211240822 9331116014 9331514010 9331514014 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70030

1GE..GS13#

 1
22210 - BODY ASSY, THROTTLE
22210-70080

1GE..GS130,131

 1
22210 - BODY ASSY, THROTTLE
22210-70080

1GE..GS130,131

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-70040

1GE..GS13#

 1
22238 - GASKET, AUXILIARY AIR VALVE
22238-70010

1GE..GS13#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70040

1GE..GS130,131

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
17343-70020

1GE..GS130,131

 1
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GE..GS130,131

 2
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GE..GS130,131

 2
22271 - GASKET, THROTTLE BODY
22271-70010

1GE..GS13#

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-70010

1GE..GS130,131

 1
23250 - INJECTOR ASSY, FUEL
23209-70010

1GE..GS13#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GE,1GG#..GS13#

 6
90480-13005

1GE,1GFE..GS13#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-79075

1GE..GS13#

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70050

1GE..GS130,131

NO.1

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-14002

1GE..GS13#

DELIVERY PIPE SIDE

 1
90430-17002

1GE..GS13#

DAMPER SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-14002

1GE..GS13#

DELIVERY PIPE SIDE

 1
90430-17002

1GE..GS13#

DAMPER SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70050

1GE..GS130,131

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GE,1GFE..GS13#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23293 - GASKET, COLD START INJECTOR
23293-70020

1GE,1GFE..GS13#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GE,1GG#..GS13#

 2
90401-08006

1GE,1GGE..GS13#

 2
90401-08003

1GE..GS13#

 3
90401-08006

1GE,1GFE,1GG#..GS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GG#..GS13#

 4
90430-08005

1GE,1GFE,1GG#..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GG#..GS13#

 4
90430-08005

1GE,1GFE,1GG#..GS13#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70020

1GE..GS13#

 1
Common parts
90099-04298
90119-08327
90179-06045
90179-08044
90179-08155
90560-08036
90560-11006
91611-40855
91611-60614
92112-40822
93311-16014
93315-14010
93315-14014
94115-40500
Linked diagrams
