GS130-AEJRK (1991)
Toyota Crown
(9211- )HTWC

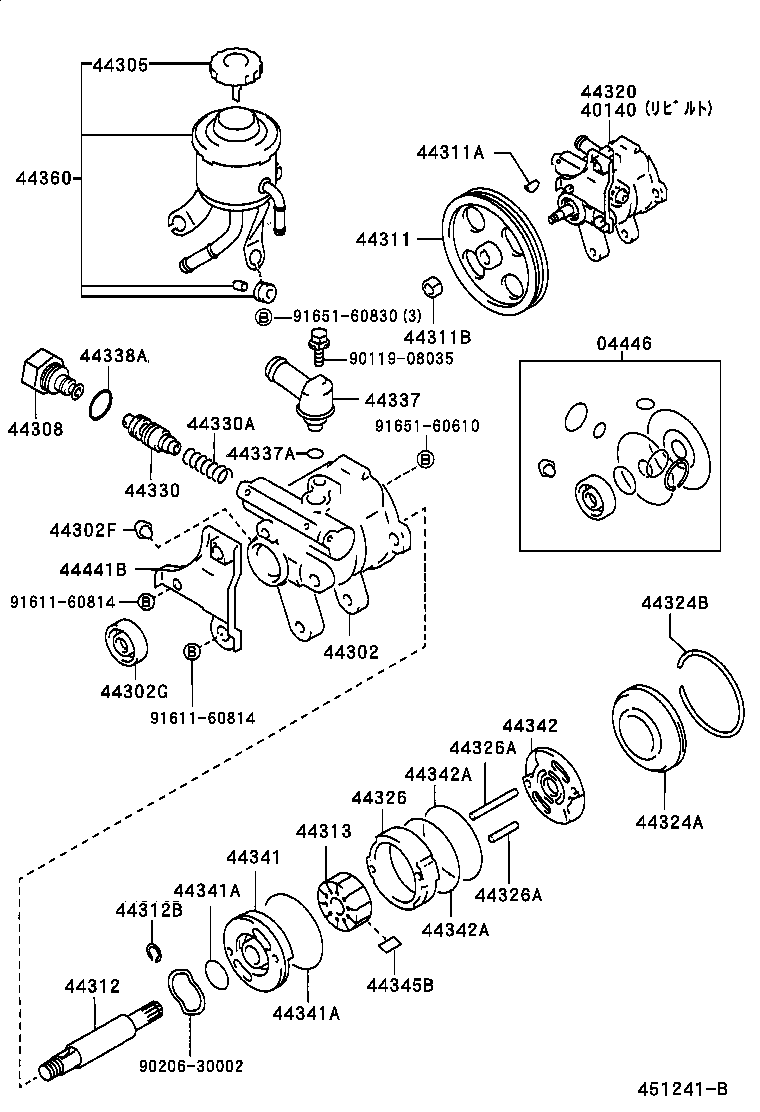

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30151 |
GS13#..HTWC |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-30360 |
GS13#..HTWC TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22050 |
GS13#..HTWC |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GS13#,YS130 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
GS13#..HTWC |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
GS13#,LS13#,YS130 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-30080 |
GS13#..HTWC |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22050 |
GS13#..HTWC |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GS13#,LS13# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GS13#,JZS13#,YS130 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
GS13#..HTWC |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GS13# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
GS13#,LS13#,YS130 ﾏｰｸ無し |
1 | ||
| 44313-22060 |
GS13#,LS13#,YS130 ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
GS13#,LS13#,YS130 ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
GS13#,LS13#,YS130 ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
GS13#,LS13#,YS130 ﾏｰｸ 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30360 |
GS13#..HTWC |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
GS13#..HTWC |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
GS13#..HTWC |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30130 |
GS13#..HTWC ﾏｰｸ 3 |
1 | ||
| 44325-30120 |
GS13#..HTWC ﾏｰｸ 2 |
1 | ||
| 44325-30110 |
GS13#..HTWC ﾏｰｸ 1 |
1 | ||
| 44325-30100 |
GS13#..HTWC ﾏｰｸ無し |
1 | ||
| 44325-30140 |
GS13#..HTWC ﾏｰｸ 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GS13#..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GS13#..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GS13#..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GS13#..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-32170 |
GS13#,LS13#,YS130 ﾏｰｸ E |
1 | ||
| 44330-32150 |
GS13#,LS13#,YS130 ﾏｰｸ C |
1 | ||
| 44330-32160 |
GS13#,LS13#,YS130 ﾏｰｸ D |
1 | ||
| 44330-32130 |
GS13#,LS13#,YS130 ﾏｰｸ A |
1 | ||
| 44330-32140 |
GS13#,LS13#,YS130 ﾏｰｸ B |
1 | ||
| 44330-32180 |
GS13#,LS13#,YS130 ﾏｰｸ F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GS13#,LS13#,YS130 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22060 |
GS13#..HTWC |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
GS13#..HTWC |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
GS13#,JZS13#..HTWC,TWC 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
GS13#..HTWC |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GS13#..HTWC 外側 |
1 | ||
| 90301-25001 |
GS13#..HTWC 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GS13#..HTWC 外側 |
1 | ||
| 90301-25001 |
GS13#..HTWC 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
GS13#..HTWC |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GS13#..HTWC |
2 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GS13#..HTWC |
2 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
GS13#,LS13#,YS130 長さ=14.997 |
10 | ||
| 44345-12030 |
GS13#,LS13#,YS130 長さ=14.993 |
10 | ||
| 44345-12020 |
GS13#,LS13#,YS130 長さ=14.995 |
10 | ||
| 44345-12050 |
GS13#,LS13#,YS130 長さ=14.989 |
10 | ||
| 44345-12040 |
GS13#,LS13#,YS130 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-30120 |
GS13# |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-22030 |
GS13#..HTWC |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90206-30002 | ||||
| 91611-60814 | ||||
| 91651-60610 | ||||
| 91651-60830 | ||||
(9110-9211)HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30151 |
GS13#..HTWC |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-30360 |
GS13#..HTWC TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22050 |
GS13#..HTWC |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GS13#,YS130 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
GS13#..HTWC |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
GS13#,LS13#,YS130 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-30080 |
GS13#..HTWC |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22050 |
GS13#..HTWC |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GS13#,LS13# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GS13#,JZS13#,YS130 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
GS13#..HTWC |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GS13# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
GS13#,LS13#,YS130 ﾏｰｸ無し |
1 | ||
| 44313-22060 |
GS13#,LS13#,YS130 ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
GS13#,LS13#,YS130 ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
GS13#,LS13#,YS130 ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
GS13#,LS13#,YS130 ﾏｰｸ 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30360 |
GS13#..HTWC |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
GS13#..HTWC |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
GS13#..HTWC |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30130 |
GS13#..HTWC ﾏｰｸ 3 |
1 | ||
| 44325-30120 |
GS13#..HTWC ﾏｰｸ 2 |
1 | ||
| 44325-30110 |
GS13#..HTWC ﾏｰｸ 1 |
1 | ||
| 44325-30100 |
GS13#..HTWC ﾏｰｸ無し |
1 | ||
| 44325-30140 |
GS13#..HTWC ﾏｰｸ 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GS13#..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GS13#..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GS13#..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GS13#..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-32170 |
GS13#,LS13#,YS130 ﾏｰｸ E |
1 | ||
| 44330-32150 |
GS13#,LS13#,YS130 ﾏｰｸ C |
1 | ||
| 44330-32160 |
GS13#,LS13#,YS130 ﾏｰｸ D |
1 | ||
| 44330-32130 |
GS13#,LS13#,YS130 ﾏｰｸ A |
1 | ||
| 44330-32140 |
GS13#,LS13#,YS130 ﾏｰｸ B |
1 | ||
| 44330-32180 |
GS13#,LS13#,YS130 ﾏｰｸ F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GS13#,LS13#,YS130 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDEC |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22060 |
GS13#..HTWC |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
GS13#..HTWC |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
GS13#,JZS13#..HTWC,TWC 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
GS13#..HTWC |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GS13#..HTWC 外側 |
1 | ||
| 90301-25001 |
GS13#..HTWC 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GS13#..HTWC 外側 |
1 | ||
| 90301-25001 |
GS13#..HTWC 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
GS13#..HTWC |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GS13#..HTWC |
2 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GS13#..HTWC |
2 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
GS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDEC |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
GS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDEC |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
GS13#,LS13#,YS130 長さ=14.997 |
10 | ||
| 44345-12030 |
GS13#,LS13#,YS130 長さ=14.993 |
10 | ||
| 44345-12020 |
GS13#,LS13#,YS130 長さ=14.995 |
10 | ||
| 44345-12050 |
GS13#,LS13#,YS130 長さ=14.989 |
10 | ||
| 44345-12040 |
GS13#,LS13#,YS130 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-30120 |
GS13# |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-22030 |
GS13#..HTWC |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90206-30002 | ||||
| 91611-60814 | ||||
| 91651-60610 | ||||
| 91651-60830 | ||||
