GS130-AEJRE (1987)
Toyota Crown
ILLUST NO. 1 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57422 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57445 - REINFORCEMENT, NO.5 BODY MOUNTING, RH | ||||
| 57445-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57446 - REINFORCEMENT, NO.5 BODY MOUNTING, LH | ||||
| 57446-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57455A - BRACKET, FRONT FLOOR CROSSMEMBER | ||||
| 57455-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH | ||||
| 57457-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-30060 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-30010 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-30010 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 57487-30011 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57505-30020 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-30270 |
GS131..HT..4HC;GS131,136..(SED,V)..(4H,4HC)..(EFI,SPC);GS130,LS130,136,MS13#,YS130..(4H,4HC)..(DSL,EFI,HTWC,LPG,TWC) |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-30040 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-30040 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
5 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-30070 |
LS136..STD;GS130,136,JZS130,LS130,MS130,YS130..4FC,4H,4HC |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-30030 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 58212-30030 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-30020 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH | ||||
| 58216-30010 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 58225 - HOLDER, REAR SEAT CUSHION | ||||
| 58225-30040 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 58241D - GUSSET, WHEELHOUSE INNER, FRONT RH | ||||
| 58241-30030 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 58105-30010 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 58242D - GUSSET, WHEELHOUSE INNER, FRONT LH | ||||
| 58106-30020 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 58242-30040 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-30050 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 | ||||
| 58265-30030 |
GS131,LS131..5F;GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58272-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
LS136..DLX;GS130,136,LS130,MS130,YS130 ﾀｲﾌﾟ A |
2 | ||
| 58369-32010 |
GS130,131,LS130,MS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS130,LS130,MS130,YS130..HT,SED ﾀｲﾌﾟ B |
2 | ||
| 58605A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH | ||||
| 58631-30020 |
GS130,LS130,YS130..STD |
1 | ||
| 58606A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH | ||||
| 58632-30010 |
GS130,LS130,YS130..STD |
1 | ||
| 58607A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH | ||||
| 58633-30020 |
GS130,LS130,YS130..STD |
1 | ||
| 58608 - PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH | ||||
| 58634-30010 |
GS130,LS130,YS130..STD |
1 | ||
| Common parts | ||||
| 83791-30101 | ||||
| 90119-06352 | ||||
| 90119-06353 | ||||
| 90176-05007 | ||||
| 90176-05013 | ||||
| 90463-12020 | ||||
| 90467-10070 | ||||
| 90950-01005 | ||||
| 90950-01167 | ||||
| 90950-01241 | ||||
| 90950-01269 | ||||
| 90950-01311 | ||||
| 90950-01370 | ||||
| 90950-01453 | ||||
| 90950-01611 | ||||
| 90950-01612 | ||||
| 90959-01117 | ||||
| 91651-40614 | ||||
| 91666-40618 | ||||

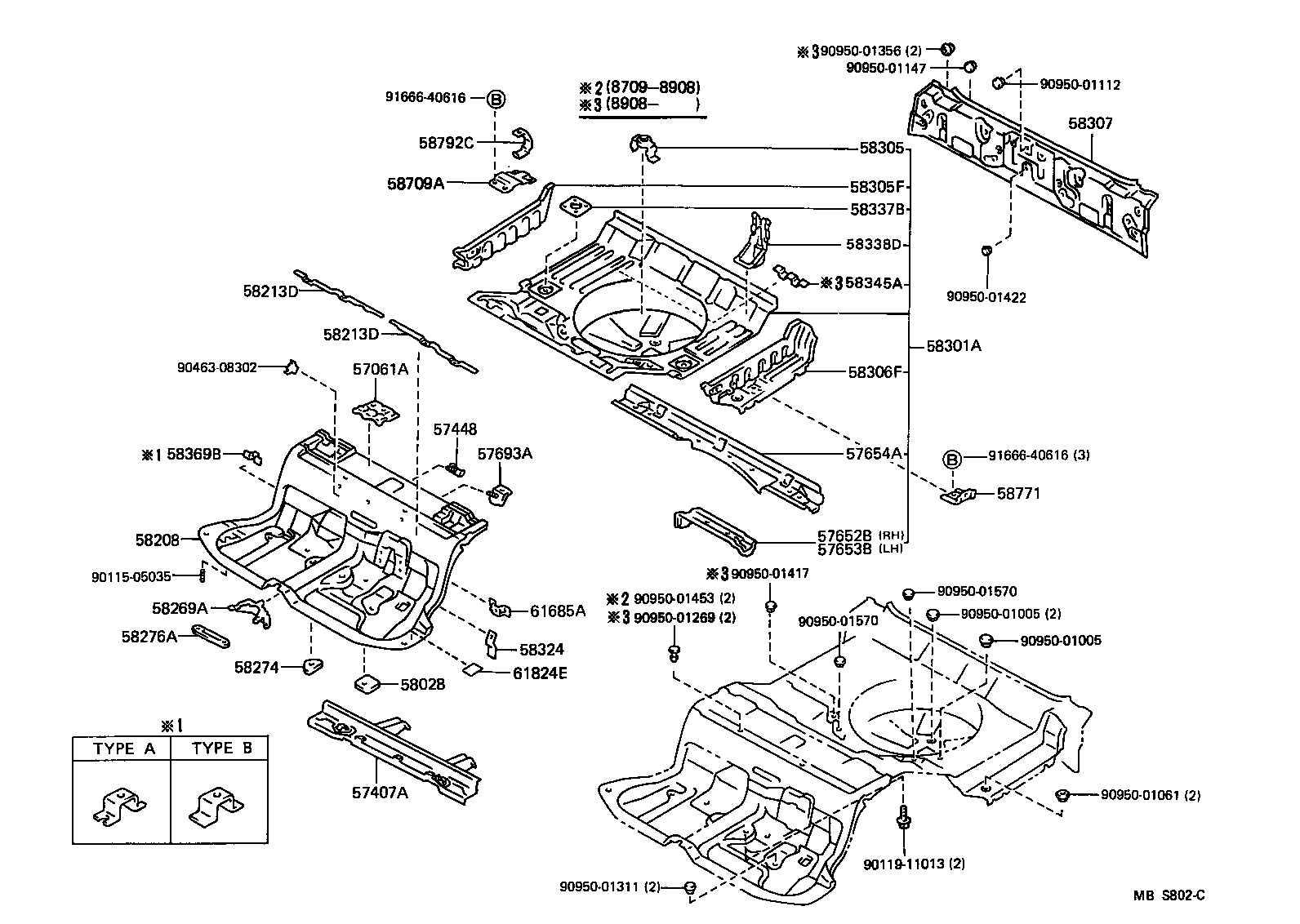

ILLUST NO. 2 OF 2(8709- )GS130,LS130,MS130,YS130..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-30070 |
GS130,LS130,MS130,YS130..HT,SED |
1 | ||
| 57448 - RETAINER, CENTER FLOOR CROSSMEMBER | ||||
| 57448-30010 |
GS130,LS130,MS130,YS130..HT,SED |
1 | ||
| 57652B - MEMBER, REAR FLOOR CROSS, FRONT RH | ||||
| 57652-30050 |
GS130,LS130,MS130,YS130..HT,SED |
1 | ||
| 57653B - MEMBER, REAR FLOOR CROSS, FRONT LH | ||||
| 57653-30070 |
GS130,LS130,MS130,YS130..HT,SED |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 57693A - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, RH | ||||
| 57693-30050 |
GS130,LS130,MS130,YS130..HT,SED |
2 | ||
| 58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2 | ||||
| 58028-30090 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30160 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-30040 |
GS130,JZS130,LS130,MS130,YS130 右側 |
1 | ||
| 58214-30020 |
GS130,JZS130,LS130,MS130,YS130 左側 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-30040 |
GS130,JZS130,LS130,MS130,YS130 右側 |
1 | ||
| 58214-30020 |
GS130,JZS130,LS130,MS130,YS130 左側 |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-30090 |
YS130..4H,4HC;GS130,LS130,MS130..4H |
1 | ||
| 58274 - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1 | ||||
| 58274-30020 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 58276A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 LH | ||||
| 58276-30010 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-30460 |
GS130,LS130..HT,SED |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30480 |
GS130..DLX..TWLPG;GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC) |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 47351-30230 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 58337B - REINFORCEMENT, NO.7 BODY MOUNTING | ||||
| 58337-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
2 | ||
| 58338D - REINFORCEMENT, TAIL END BODY MOUNTING | ||||
| 58338-30040 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
2 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
LS136..DLX;GS130,136,LS130,MS130,YS130 ﾀｲﾌﾟ A |
2 | ||
| 58369-32010 |
GS130,131,LS130,MS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS130,LS130,MS130,YS130..HT,SED ﾀｲﾌﾟ B |
2 | ||
| 58771 - CLAMP, JACK, NO.1 | ||||
| 58795-30010 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 61685A - BRACKET, REAR SEAT BACK MOUNTING | ||||
| 61685-30020 |
LS130..HT..SALEX;GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
1 | ||
| 61824E - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 90115-05035 | ||||
| 90119-11013 | ||||
| 90463-08302 | ||||
| 90950-01005 | ||||
| 90950-01061 | ||||
| 90950-01112 | ||||
| 90950-01147 | ||||
| 90950-01269 | ||||
| 90950-01311 | ||||
| 90950-01356 | ||||
| 90950-01417 | ||||
| 90950-01422 | ||||
| 90950-01453 | ||||
| 90950-01570 | ||||
| 91666-40616 | ||||
