GS130-AEJRE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

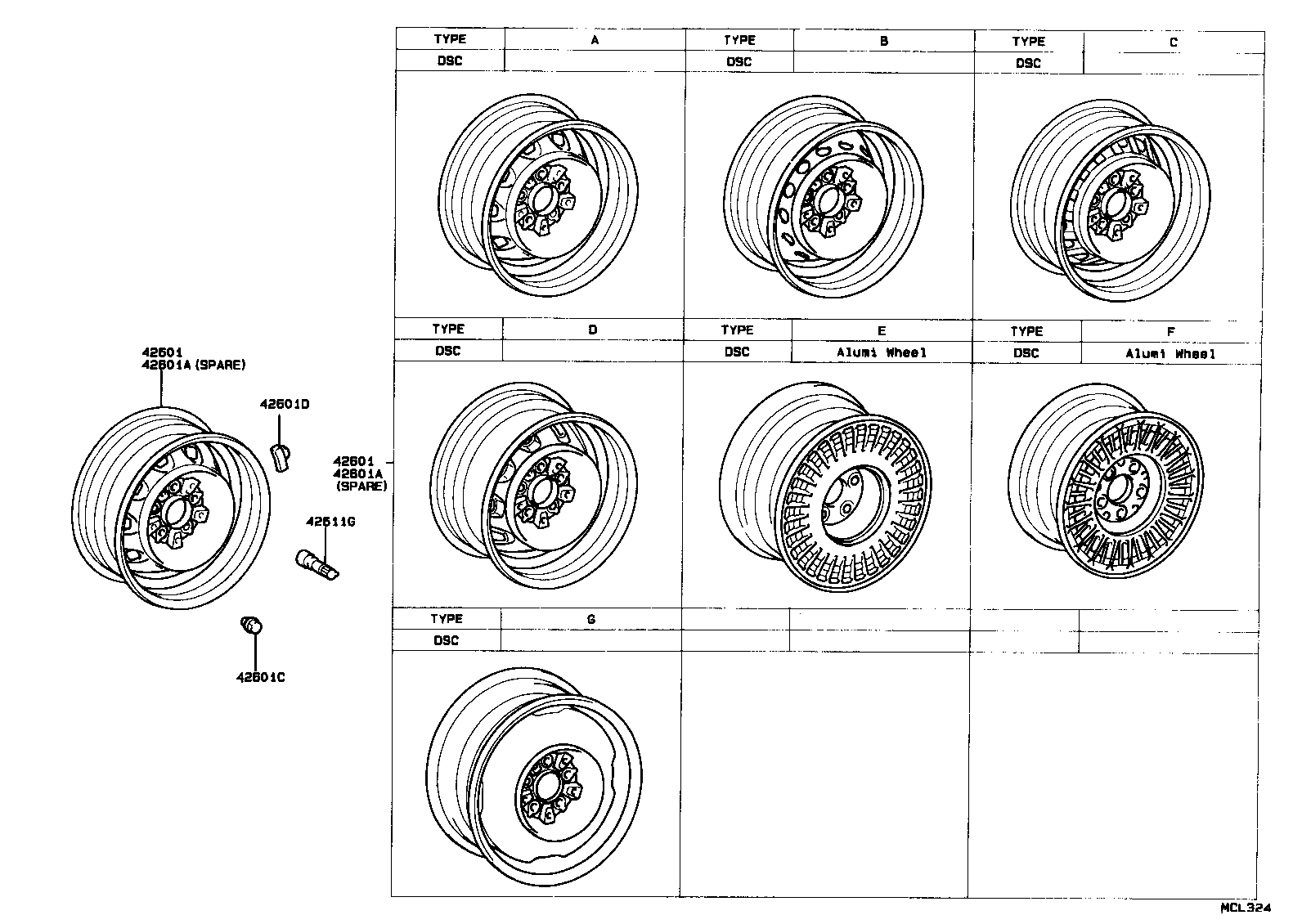

ILLUST NO. 1 OF 2(8709- )

Click highlighted areas on diagram

diagram 42601 42601 42601A 42601A 42601C 42601D 42611G
Part # Description Qty Price
42601 - WHEEL, DISC
42611-3042003

GS136..DLX,STD;GS130,LS130..STD;GS136..SDX..HTWC;GS130,LS136,MS130,YS130..DSL,LPEFI,LPG,TWLPG

5JX14,TYPE A,SILVER

 4
42601 - WHEEL, DISC
42611-3042003

GS136..DLX,STD;GS130,LS130..STD;GS136..SDX..HTWC;GS130,LS136,MS130,YS130..DSL,LPEFI,LPG,TWLPG

5JX14,TYPE A,SILVER

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-3042003

GS136..DLX,STD;GS130,LS130..STD;GS136..SDX..HTWC;GS130,LS136,MS130,YS130..DSL,LPEFI,LPG,TWLPG

5JX14,TYPE A,SILVER

 1
42601A - WHEEL, DISC (FOR SPARE)
42611-3042003

GS136..DLX,STD;GS130,LS130..STD;GS136..SDX..HTWC;GS130,LS136,MS130,YS130..DSL,LPEFI,LPG,TWLPG

5JX14,TYPE A,SILVER

 1
42601C - NUT, HUB (FOR AXLE)
90942-01021

GS130,136,LS130,136,YS130..STD

 20
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

20G,厚さ=8

 1
90942-03027

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

60G,厚さ=9.5

 1
90942-03022

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

40G,厚さ=9.5

 1
90942-03029

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

70G,厚さ=9.5

 1
90942-03031

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

80G,厚さ=9.5

 1
90942-03041

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

10G,厚さ=7.5

 1
90942-03020

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

30G,厚さ=10

 1
90942-03025

GS131..SED..ROY;GS131..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB

50G,厚さ=9.5

 1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05004

GS130..TWLPG;GS130,LS130..STD;GS136,LS136,MS130,YS130

 5

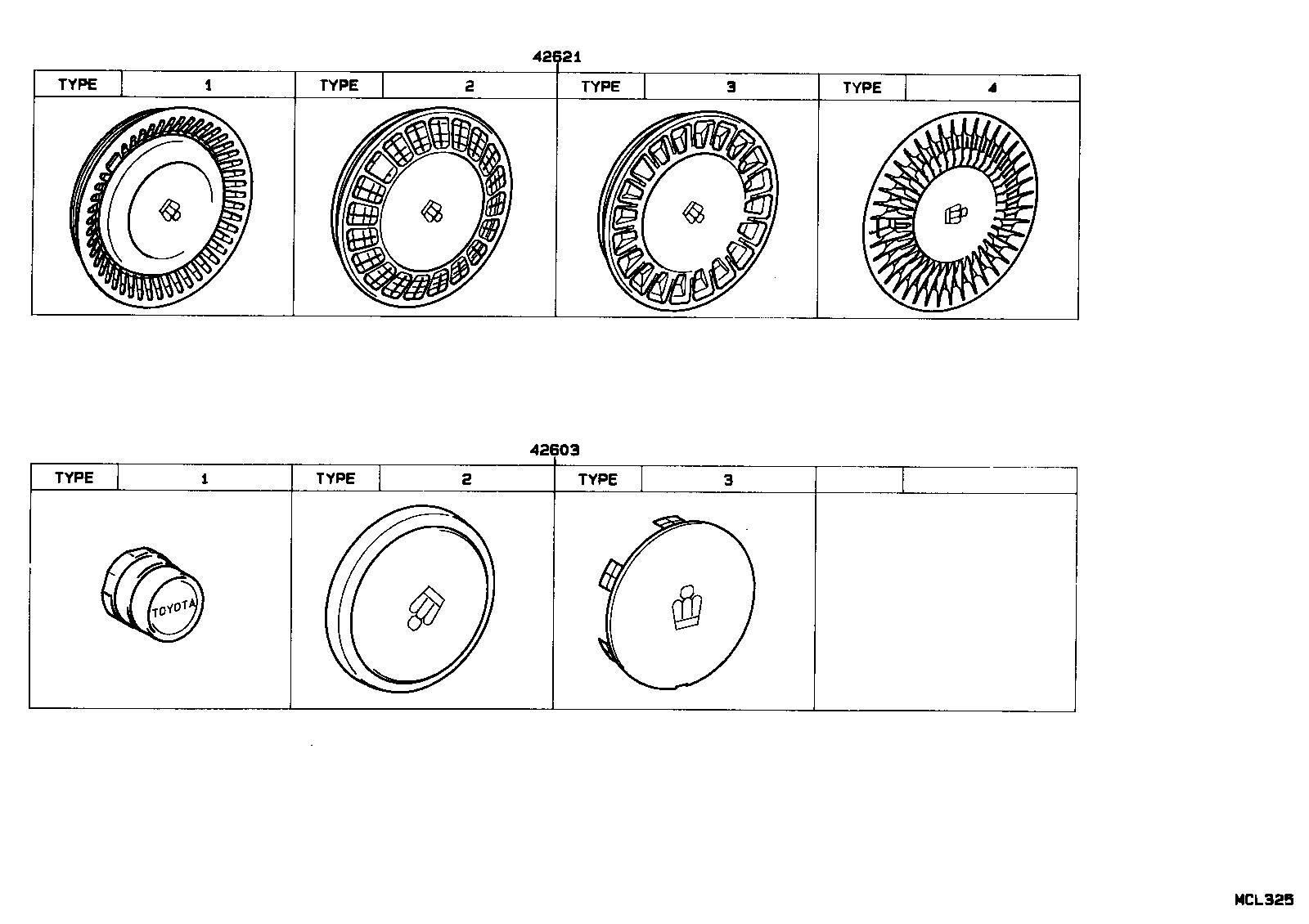

ILLUST NO. 2 OF 2(8709- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30100

GS130,136,LS130,136,YS130..STD

*STE,TYPE 1

 4
