GS130-AEJFD (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 1GGP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1GGP

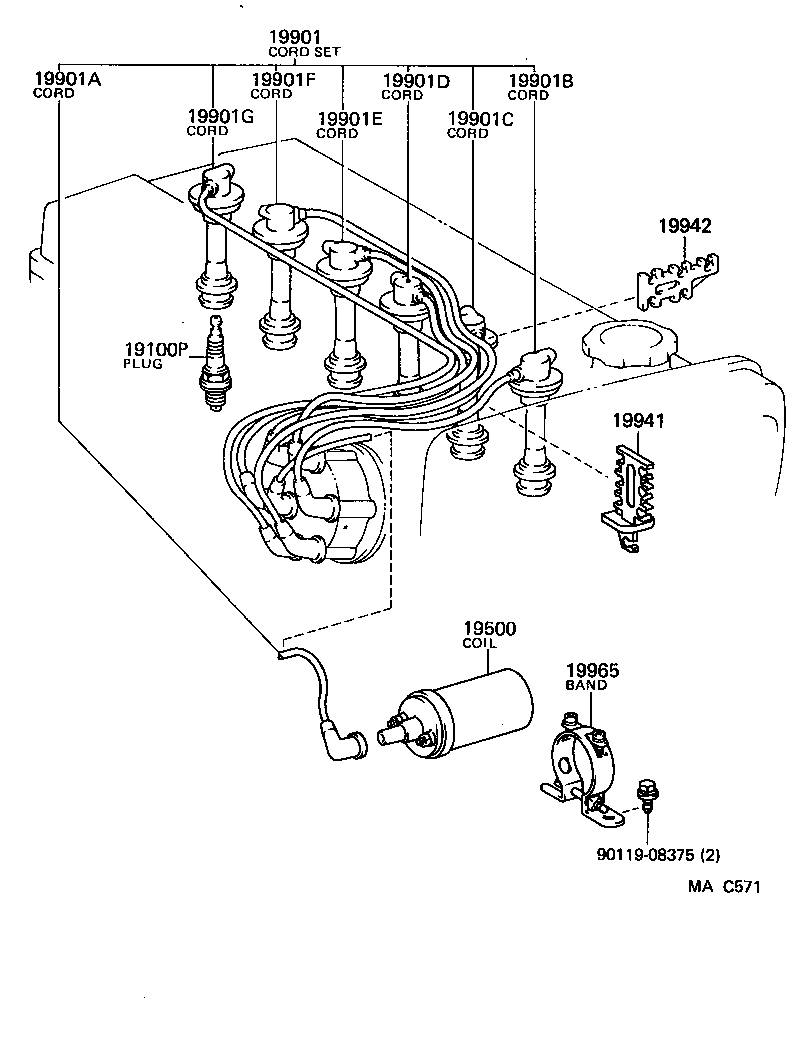

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19965 9011908375
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01162

1GGP..GS130

BCPR6EP−8,NGK

 6
90919-01161

1GGP..GS130

PQ20R8,ND

 6
19500 - COIL ASSY, IGNITION
90919-02113

1GE..GS136;1GFE,1GGP..GS13#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21490

1GGP..GS130

 1
19901A - CORD, COIL RESISTIVE
90919-13216

1GGP..GS130

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15070

1GGP..GS130

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15071

1GGP..GS130

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15072

1GGP..GS130

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15073

1GGP..GS130

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15074

1GGP..GS130

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15075

1GGP..GS130

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01252

1GGP..GS130

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01044

1GGP..GS130

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03119

1GGP..GS130

 1
Common parts
90119-08375
