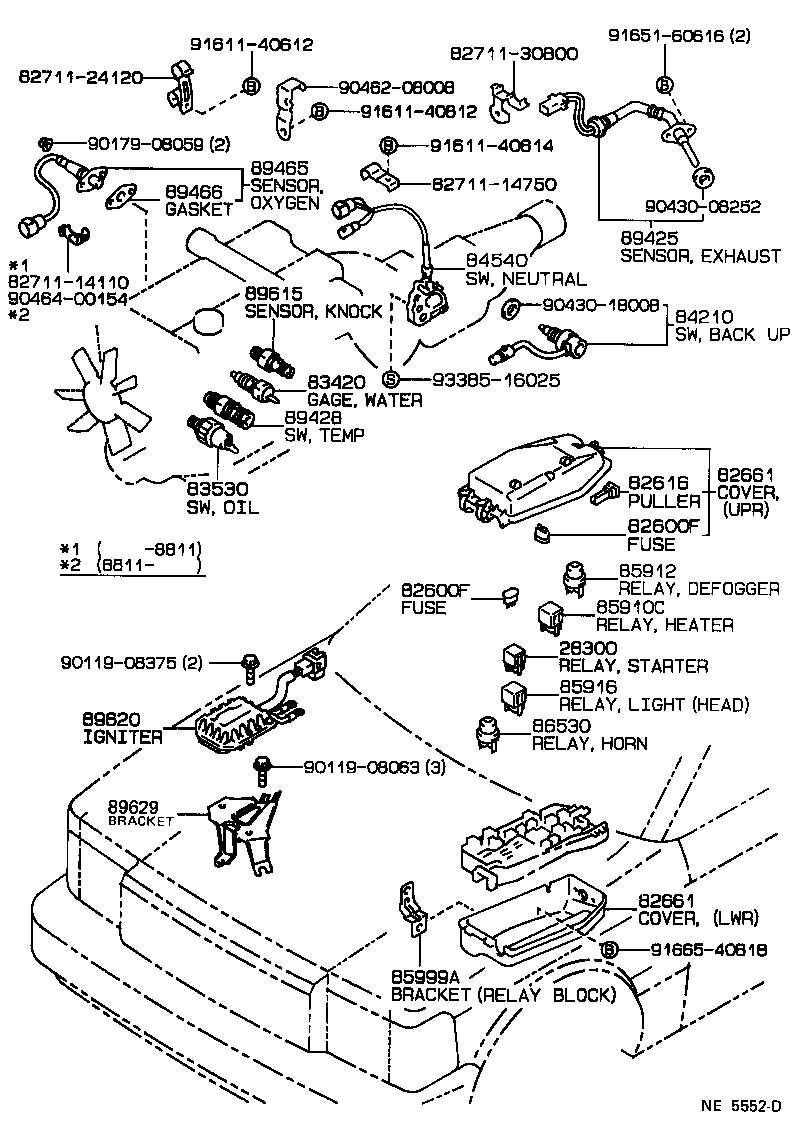

Toyota Crown GS130 SWITCH & RELAY & COMPUTER

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-16010	1GE,1GFE..GS131;1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,STD	09/1987 - 08/1989	1
28300-16010	1GFE,1GG#,1JZGE,7MGE,1UZFE,3YPE..GS13#,JZS13#,MS13#,UZS131,YS130	08/1989 - 10/1991	1
82600F - FUSE, FUSE BLOCK
90982-09005	GS13#,LS13#,MS13#,UZS131,YS130 7.5A	09/1987 - 12/1989	1
90982-09003	GS13#,LS13#,MS13#,YS130 15A	09/1987 - 08/1989	1
90982-09001	GS130,131..HTWC 5A	09/1988 - 08/1989	1
90982-09003	GS13#,LS13#,MS13#,UZS131,YS130 15A	08/1989 - 12/1989	1
90982-09004	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄	09/1987 - 10/1991	1
90982-09003	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A	12/1989 - 10/1991	1
90982-09005	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A	12/1989 - 10/1991	1
82600F - FUSE, FUSE BLOCK
90982-09005	GS13#,LS13#,MS13#,UZS131,YS130 7.5A	09/1987 - 12/1989	1
90982-09003	GS13#,LS13#,MS13#,YS130 15A	09/1987 - 08/1989	1
90982-09001	GS130,131..HTWC 5A	09/1988 - 08/1989	1
90982-09003	GS13#,LS13#,MS13#,UZS131,YS130 15A	08/1989 - 12/1989	1
90982-09004	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄	09/1987 - 10/1991	1
90982-09003	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A	12/1989 - 10/1991	1
90982-09005	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A	12/1989 - 10/1991	1
82616 - PULLER, FUSE
82616-12010	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
82661 - COVER, RELAY BLOCK, NO.1
82663-30020	UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER	09/1987 - 10/1991	1
82662-30050	GS13#,MS135,137..EFI,HTWC,TWC UPPER	09/1987 - 08/1989	1
82662-30051	UZS131..4HC;GS13#,JZS13#,MS13#..HTWC,TWC UPPER	08/1989 - 10/1991	1
82661 - COVER, RELAY BLOCK, NO.1
82663-30020	UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER	09/1987 - 10/1991	1
82662-30050	GS13#,MS135,137..EFI,HTWC,TWC UPPER	09/1987 - 08/1989	1
82662-30051	UZS131..4HC;GS13#,JZS13#,MS13#..HTWC,TWC UPPER	08/1989 - 10/1991	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	GS13#,JZS13#,LS13#,MS13#,YS130	09/1987 - 10/1991	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30042	GS13#	09/1987 - 09/1988	1
83530-30051	GS13#,MS13#	04/1991 - 10/1991	1
83530-30050	GS13#,MS13#	09/1988 - 04/1991	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
85912 - RELAY, DEFOGGER
90987-02004	GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130	09/1987 - 10/1991	1
85916 - RELAY, LIGHT CONTROL
90987-02004	GS13#,LS13#,MS13#,YS130 TAIL LAMP	09/1987 - 08/1989	1
90987-02006	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP	09/1987 - 10/1991	1
90987-02008	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP	08/1989 - 10/1991	1
85999A - BRACKET, RELAY, NO.2
85999-30260	GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER	09/1987 - 08/1989	1
85999-30250	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER	09/1987 - 10/1991	1
85999-30261	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER	08/1989 - 10/1991	1
85999-30281	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT	03/1990 - 10/1991	1
85999-30310	GS130,131,MS135,137..SPC,TWC E/G RELAY BLOCK	09/1987 - 08/1988	1
85999-30280	GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT	09/1987 - 03/1990	1
86530 - RELAY ASSY, HORN
90987-02004	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-39135	GS130,131,MS135,137	09/1987 - 08/1989	1
89425-39285	GS13#,JZS13#,MS13#,UZS131	08/1989 - 10/1991	1
89465 - SENSOR, OXYGEN
89465-29176	GS13#..HTWC,TWC	07/1989 - 10/1991	1
89465-29175	GS130,131..HTWC,TWC	09/1987 - 07/1989	1
89466 - GASKET, OXYGEN SENSOR
89466-30030	GS13#..EFI,HTWC,TWC	07/1989 - 10/1991	1
89466-32010	GS13#..EFI,HTWC,TWC	09/1987 - 07/1989	1
89615 - SENSOR, KNOCK CONTROL
89615-30020	GS130,131,MS135,137..HTWC,TWC	09/1987 - 03/1989	1
89615-30020	GS13#,MS13#..HTWC,TWC	08/1989 - 07/1991	1
89615-33010	GS13#..HTWC MATSUSHITA	07/1991 - 10/1991	1
89615-33020	GS13#..HTWC NIPPONDENSO	07/1991 - 08/1991	1
89615-33020	GS13#,MS13#..HTWC,TWC NIPPONDENSO	08/1991 - 10/1991	1
89615-20030	GS13#..HTWC TOYOTA	07/1991 - 10/1991	1
89615-30020	GS130,131..HTWC,SPC	03/1989 - 08/1989	2
89620 - IGNITER ASSY
89621-30010	GS130,131,MS135,137..EFI,TWC	09/1987 - 08/1989	1
89620-10100	GS13#..HTWC	09/1988 - 10/1991	1
89629 - BRACKET, IGNITER ASSY
89629-30020	GS13#..HTWC	09/1988 - 10/1991	1
89629-30031	GS130,131,JZS13#,MS135,137..SPC,TWC	09/1987 - 10/1991	1
Common parts
82711-14110
82711-14750
82711-24120
82711-30800
90119-08063
90119-08375
90179-08059
90430-08252
90430-18008
90462-08008
90464-00154
91611-40612
91611-40812
91611-40814
91651-60616
91665-40818
93385-16025

GS130-AEJDK (1988)

ILLUST NO. 1 OF 8(8809- )GS13#..HTWC

ILLUST NO. 3 OF 8(9110-9512)GS136..SDX,STD ; (9110-9512)GS130,YS130..DLX,DLXA,STD
