GS130-AEJDK (1988)
Toyota Crown

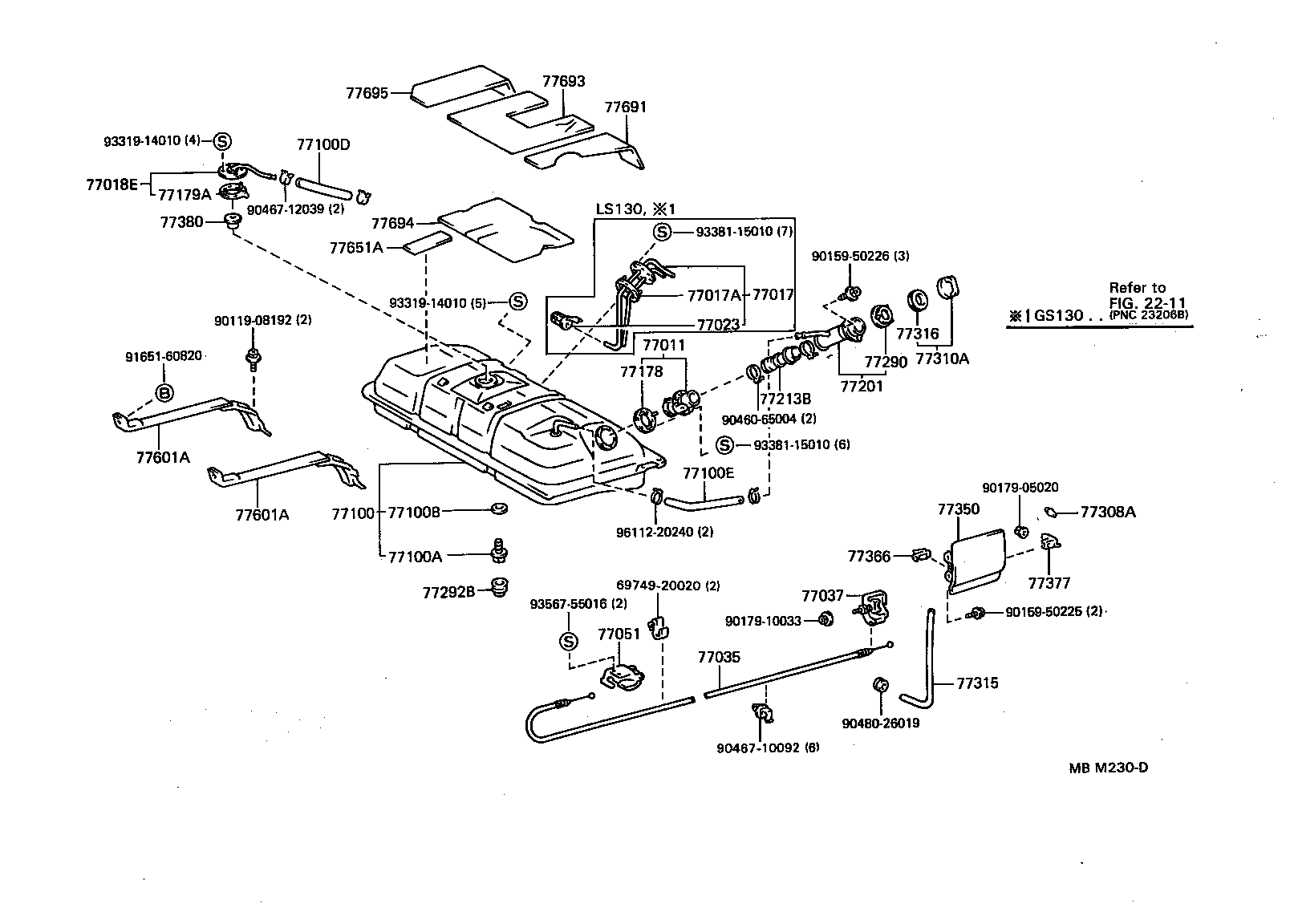

ILLUST NO. 1 OF 2(8709-8908)GS130,LS130..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30050 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30120 |
GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035-30120 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77035-30130 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035-30130 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14010 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
GS13#,LS13#,MS135,137 BLUE,TRIM8# |
1 | ||
| 77051-3006004 |
MS137..4HC..WIB;GS13#,LS13#,MS135 BLUE,TRIM8# |
1 | ||
| 77051-3006002 |
GS13#,JZS13#,LS13#,MS13#,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DSL,HTWC,SPC,TD,TDE,TWC BLUE,TRIM8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30935 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS13#,JZS131,LS13#,MS135,137,UZS131..(HT,SED,V)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) *H,L=200 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22016 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) 長さ=220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30170 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77201-30171 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30080 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) 長さ=222.8 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30030 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08016 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
2 | ||
| 90541-08016 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS13#,JZS13#,MS135,137,UZS131..EFI,HTWC,SPC,TWC |
1 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09012 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT 長さ=675 |
1 | ||
| 90446-09011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED 長さ=590 |
1 | ||
| 90446-09011 |
GS130,131,LS130,MS13#,YS130..HT,SED 長さ=590 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30130 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 77350-30140 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 77350-30131 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30120 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30120 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30070 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
4 | ||
| 77691 - SHEET, FUEL TANK SILENCER, UPPER NO.1 | ||||
| 77691-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77693 - SHEET, FUEL TANK SILENCER, UPPER NO.2 | ||||
| 77693-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77694 - SHEET, FUEL TANK SILENCER, LOWER NO.2 | ||||
| 77694-30020 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77695 - SHEET, FUEL TANK SILENCER, UPPER NO.3 | ||||
| 77695-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| Common parts | ||||
| 69749-20020 | ||||
| 90119-08192 | ||||
| 90159-50225 | ||||
| 90159-50226 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90460-65004 | ||||
| 90467-10092 | ||||
| 90467-12039 | ||||
| 90480-26019 | ||||
| 91651-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 2211 | ||||

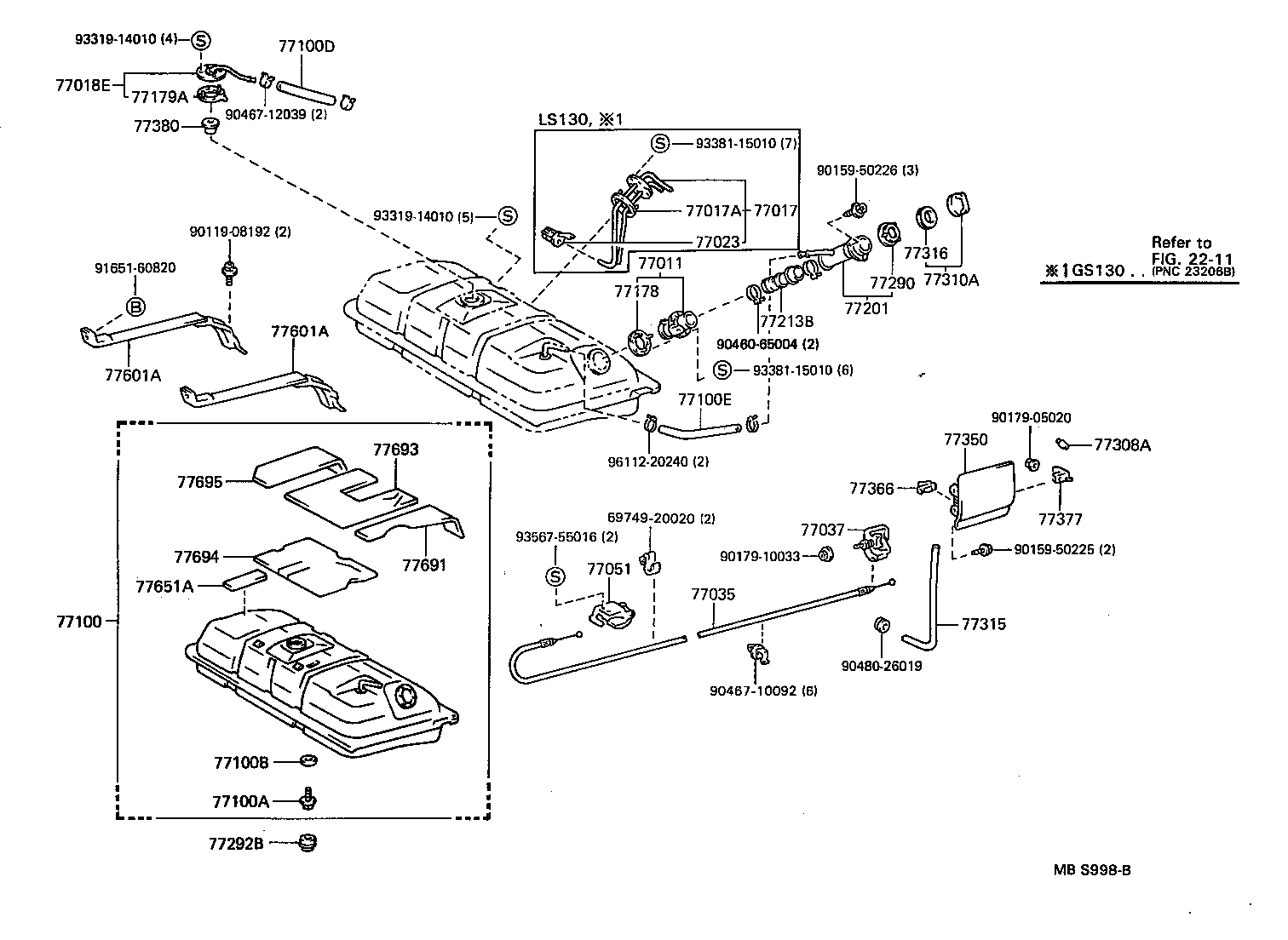

(8908- )GS130,LS130..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30050 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30120 |
GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035-30120 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77035-30130 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035-30130 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14010 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
GS13#,LS13#,MS135,137 BLUE,TRIM8# |
1 | ||
| 77051-3006004 |
MS137..4HC..WIB;GS13#,LS13#,MS135 BLUE,TRIM8# |
1 | ||
| 77051-3006002 |
GS13#,JZS13#,LS13#,MS13#,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DSL,HTWC,SPC,TD,TDE,TWC BLUE,TRIM8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30935 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS13#,JZS131,LS13#,MS135,137,UZS131..(HT,SED,V)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) *H,L=200 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22016 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) 長さ=220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30170 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77201-30171 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30080 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) 長さ=222.8 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30030 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08016 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
2 | ||
| 90541-08016 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS13#,JZS13#,MS135,137,UZS131..EFI,HTWC,SPC,TWC |
1 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09012 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT 長さ=675 |
1 | ||
| 90446-09011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED 長さ=590 |
1 | ||
| 90446-09011 |
GS130,131,LS130,MS13#,YS130..HT,SED 長さ=590 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30130 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 77350-30140 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 77350-30131 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30120 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30120 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30070 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
4 | ||
| 77691 - SHEET, FUEL TANK SILENCER, UPPER NO.1 | ||||
| 77691-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77693 - SHEET, FUEL TANK SILENCER, UPPER NO.2 | ||||
| 77693-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77694 - SHEET, FUEL TANK SILENCER, LOWER NO.2 | ||||
| 77694-30020 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77695 - SHEET, FUEL TANK SILENCER, UPPER NO.3 | ||||
| 77695-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| Common parts | ||||
| 69749-20020 | ||||
| 90119-08192 | ||||
| 90159-50225 | ||||
| 90159-50226 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90460-65004 | ||||
| 90467-10092 | ||||
| 90467-12039 | ||||
| 90480-26019 | ||||
| 91651-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
