GS130-AEJDK (1988)
Toyota Crown

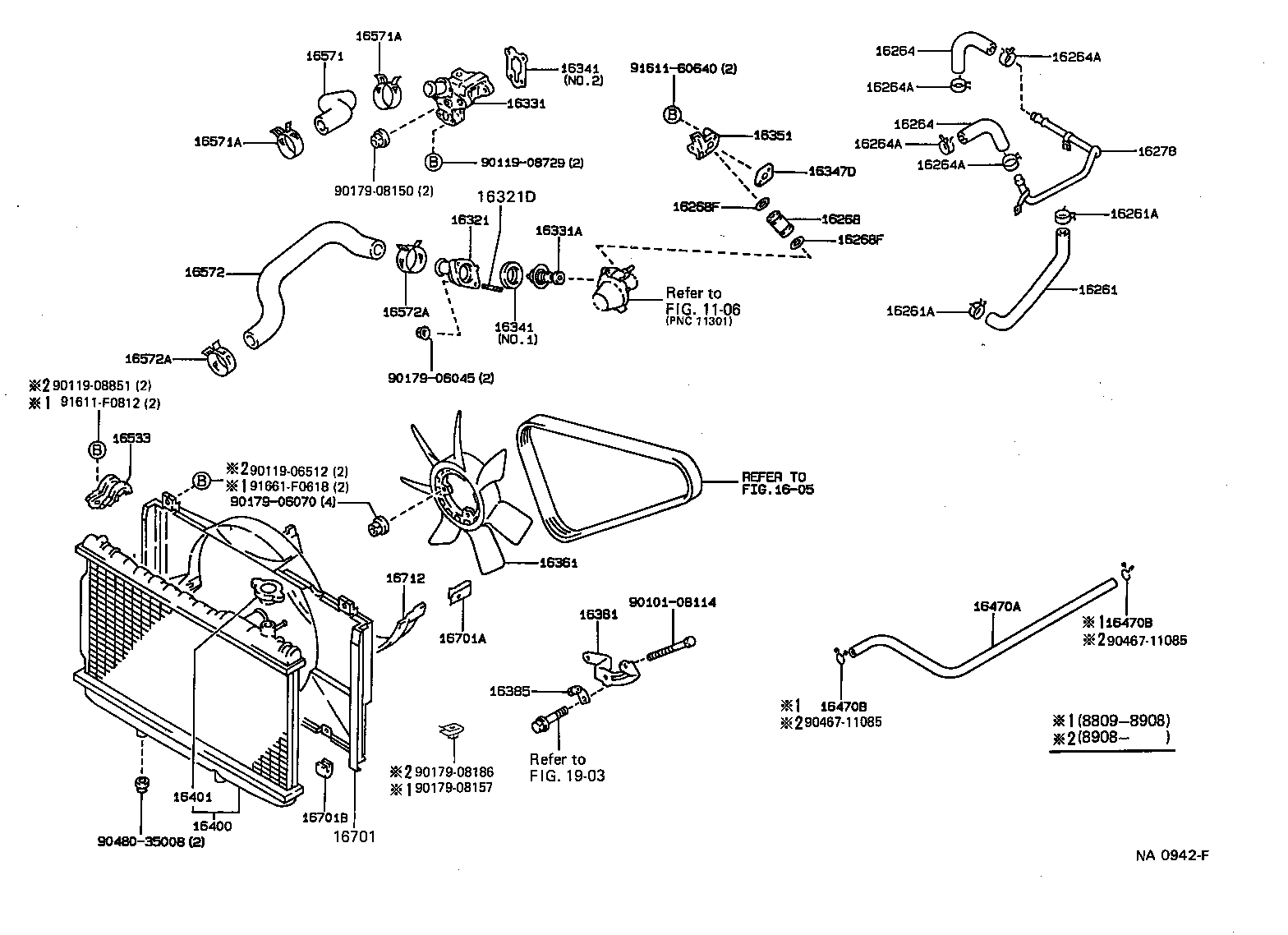

ILLUST NO. 1 OF 2(8809- )1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70050 |
1GFE..GS13# |
1 | ||
| 16261-70050 |
1GFE..GS130,131 |
1 | ||
| 16261-70051 |
1GFE..GS13# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13051 |
1GFE..GS13# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13051 |
1GFE..GS13# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70060 |
1GFE..GS13# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70060 |
1GFE..GS13# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13051 |
1GFE..GS13# |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-70030 |
1GFE..GS13# |
1 | ||
| 16268-70031 |
1GFE..GS13# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GFE,1GGP,1GGE..GS13# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GFE,1GGP,1GGE..GS13# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70060 |
1GFE..GS13# |
1 | ||
| 16278-70061 |
1GFE..GS13# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-70030 |
1GFE..GS13# |
1 | ||
| 16321D - BOLT, STUD(FOR WATER INLET) | ||||
| 16193-63010 |
1GFE..GS13# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-70060 |
1GFE..GS13# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03081 |
1GFE..GS13# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-70030 |
1GFE..GS130,131 NO.2 |
1 | ||
| 16341-35010 |
1GFE..GS130,131 |
1 | ||
| 16341-35010 |
1GFE..GS13# NO.1 |
1 | ||
| 16341-70030 |
1GFE..GS13# |
1 | ||
| 16341-70031 |
1GFE..GS13# NO.2 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-70030 |
1GFE..GS130,131 NO.2 |
1 | ||
| 16341-35010 |
1GFE..GS130,131 |
1 | ||
| 16341-35010 |
1GFE..GS13# NO.1 |
1 | ||
| 16341-70030 |
1GFE..GS13# |
1 | ||
| 16341-70031 |
1GFE..GS13# NO.2 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-70021 |
1GFE..GS13# |
1 | ||
| 16347-70020 |
1GFE..GS13# |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-70010 |
1GFE..GS13# |
1 | ||
| 16361 - FAN | ||||
| 16361-70040 |
1GFE..GS13# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-70050 |
1GFE..GS13# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70020 |
1GFE..GS13# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-43210 |
1GE,1GFE,1GGE..GS130,131..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1GFE,1GGZE,1GGE..GS130,131 |
1 | ||
| 16401-63010 |
1GE,1GFE,1GG#..GS130,131 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85343-30270 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| 85319-30280 |
1GFE,1GG#..GS13# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| 90467-11085 |
1GFE,1GG#..GS13# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| 90467-11085 |
1GFE,1GG#..GS13# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
1GE,1GFE,1GGZE,1GGE..GS13# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70260 |
1GFE..GS13# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1GFE..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1GFE..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70200 |
1GFE..GS13# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GFE..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GGP..GS130..SED |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GFE..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GGP..GS130..SED |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70070 |
1GE,1GFE,1GGZE,1GGE..GS13# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1GE,1GFE,1GG#..GS13# |
2 | ||
| 90468-06013 |
1GFE,1GG#..GS13# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1GE,1GFE,1GG#..GS13# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70050 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| Common parts | ||||
| 90101-08114 | ||||
| 90119-06512 | ||||
| 90119-08729 | ||||
| 90119-08851 | ||||
| 90179-06045 | ||||
| 90179-06070 | ||||
| 90179-08150 | ||||
| 90179-08157 | ||||
| 90179-08186 | ||||
| 90467-11085 | ||||
| 90480-35008 | ||||
| 91611-60640 | ||||
| 91611-F0812 | ||||
| 91661-F0618 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 1903 | ||||
