GS130-AEJDK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1G#

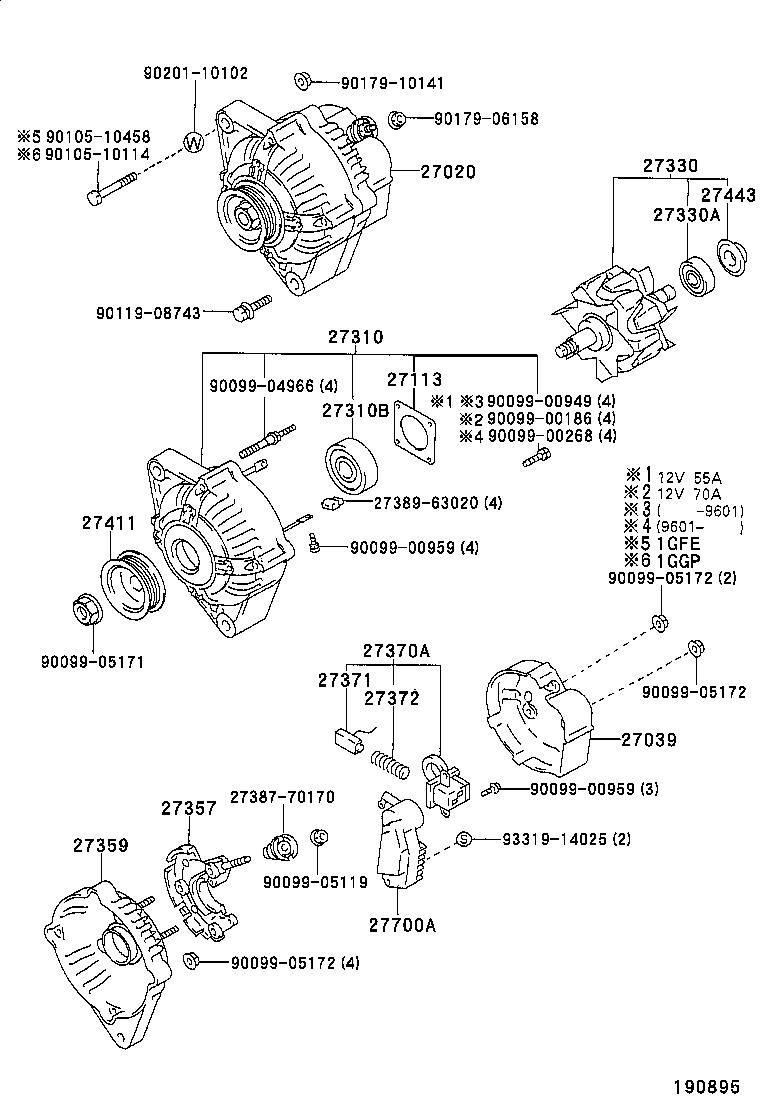

Click highlighted areas on diagram

12V 55A,70A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370A 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900186 9009900268 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9010510114 9010510458 9011908743 9017906158 9017910141 9020110102 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-70280

1GFE..GS130,131

12V 70A

 1
27060-70410

1GFE..GS130,131

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-15170

1GFE,2L..GS130,131,LS136

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200

1GFE..GS130,131

 1
27312-70200

1G#,3YPE..GS130,131,YS130

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70100

1GFE..GS130,131

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

1GFE..GS130,131

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

1GFE..GS130,131

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1GFE,2L#..GS13#,LS13#

 1
90099-10140

1G#,2LT#,2L,3YPE..GS13#,LS13#,YS130

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1G#,2L,3YPE..GS130,131,LS136,YS130

 1
27357-63020

1GFE,2L..GS130,131,LS136

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70260

1GFE..GS130,131

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

1GFE..GS13#

 1
27370-70300

1GFE..GS13#

 1
27371 - BRUSH, ALTERNATOR
27371-70300

1GFE,2L..GS13#,LS136

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1GFE,2L..GS13#,LS136

 2
27411 - PULLEY, ALTERNATOR
27411-70261

1GFE..GS13#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GFE,1JZGE,2JZGE,2L#..GS13#,JZS13#,LS13#

 1
27443-63020

1G#,1JZGE,2JZGE,2LT#,2L,3YPE..GS13#,JZS13#,LS13#,YS130

 1
27700A - REGULATOR ASSY, GENERATOR
27700-76020

1GFE..GS130,131

 1
27700-35040

1GFE..GS130,131

 1
Common parts
27387-70170
27389-63020
90099-00186
90099-00268
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10114
90105-10458
90119-08743
90179-06158
90179-10141
90201-10102
93319-14025
