GS121-STSQR (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 1GGZEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )SPC

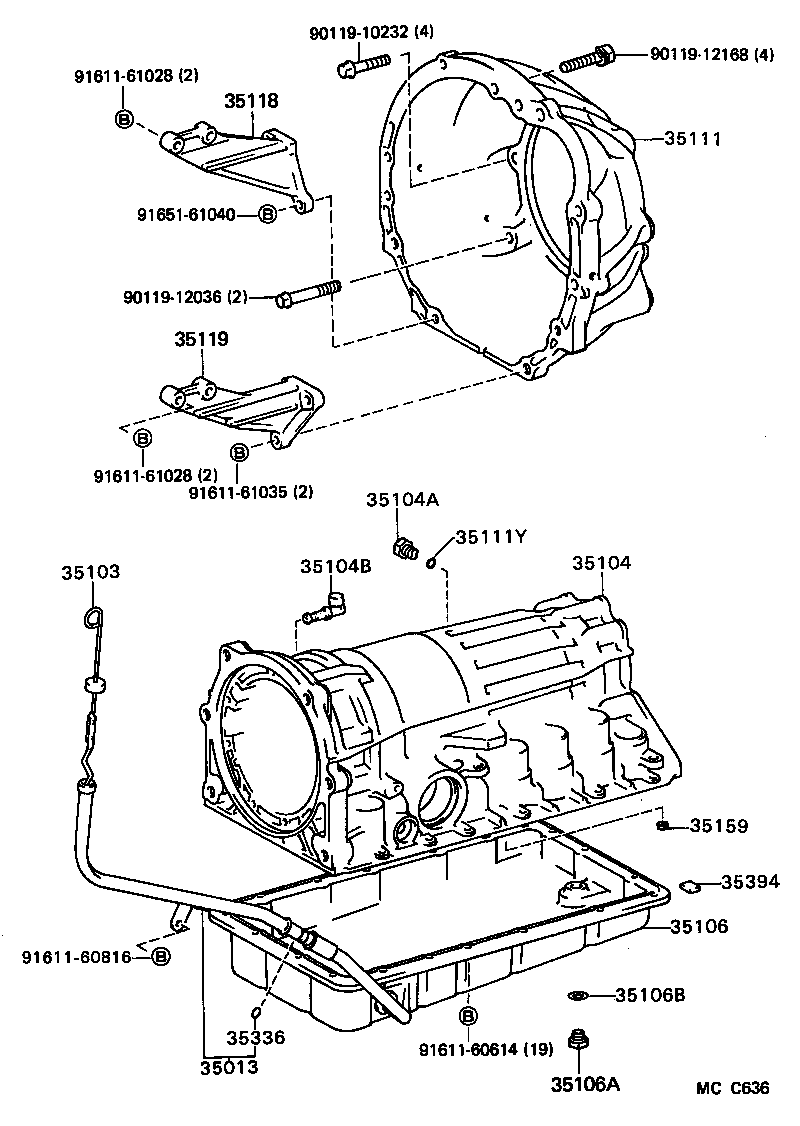

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111Y 35118 35119 35159 35336 35394 9011910232 9011912036 9011912168 9161160614 9161160816 9161161028 9161161028 9161161035 9165161040
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30110

GS121..ATM

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30133

GS121..SPC

 1
35104-30132

MS125;GS121..SPC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GS120,121,LS12#,MS12#..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

GS120,121,LS12#,MS12#..ATM

 1
90930-03108

GS120,121,LS12#,MS12#..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30100

GS121,MS125

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

GS120,121,LS12#,MS12#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GS120,121,LS12#,MS12#..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-24030

GS121..SPC

 1
35111-24031

GS121..SPC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS120,121,LS12#,MS12#..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-22050

GS120,121..ATM

 1
33118-22051

GS120,121..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-22042

GS120,121..ATM

 1
33119-22041

GS120,121..ATM

 1
35159 - GASKET, BRAKE DRUM
35159-30010

GS121,MS125

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

GS120,121,LS12#,MS12#..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

GS120,121,LS12#,MS12#..ATM

 4
Common parts
90119-10232
90119-12036
90119-12168
91611-60614
91611-60816
91611-61028
91611-61035
91651-61040
