GS121-STSQR (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 1GGZEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

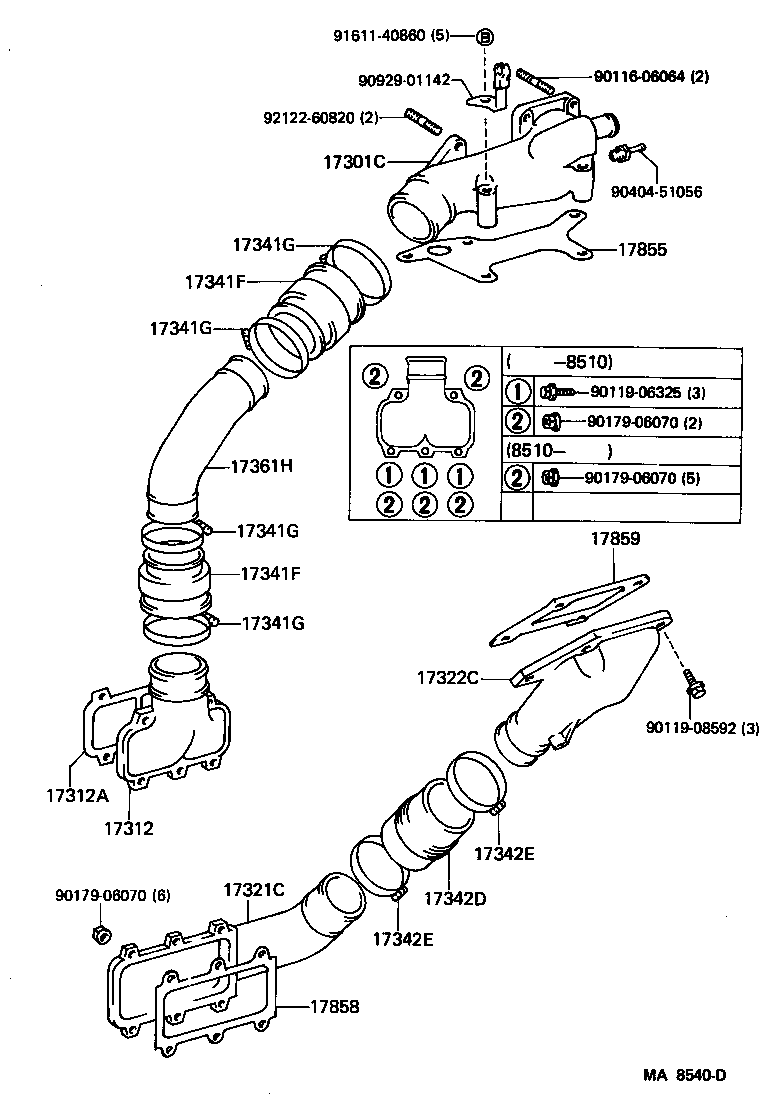

ILLUST NO. 2 OF 2(8509- )1GGZEU

Click highlighted areas on diagram

diagram 17301C 17312 17312A 17321C 17322C 17341F 17341F 17341G 17341G 17341G 17341G 17342D 17342E 17342E 17361H 17855 17858 17859 9011606064 9011906325 9011908592 9017906070 9017906070 9017906070 9040451056 9092901142 9161140860 9212260820
Part # Description Qty Price
17301C - DUCT SUB-ASSY, AIR INLET, NO.1
17301-70010

1GGZEU..GS121

 1
17312 - DUCT, AIR INLET, NO.2
17312-70010

1GGZEU..GS121

 1
17312A - GASKET, AIR INLET DUCT, NO.2
17857-70010

1GGZEU..GS121

 1
17321C - DUCT, AIR OUTLET, NO.1
17321-70010

1GGZEU..GS121

 1
17322C - DUCT, AIR OUTLET, NO.2
17322-70010

1GGZEU..GS121

 1
17341F - HOSE, AIR, NO.1
17341-70070

1GGZEU..GS121

 2
17341F - HOSE, AIR, NO.1
17341-70070

1GGZEU..GS121

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002

1GGZEU..GS121

 4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002

1GGZEU..GS121

 4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002

1GGZEU..GS121

 4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002

1GGZEU..GS121

 4
17342D - HOSE, AIR, NO.2
17342-70060

1GGZEU..GS121

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002

1GGZEU..GS121

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002

1GGZEU..GS121

 2
17361H - TUBE, AIR(FOR SUPERCHARGER)
17361-70010

1GGZEU..GS121

 1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-70010

1GGZEU..GS121

 1
17858 - GASKET, AIR OUTLET DUCT, NO.1
17858-70010

1GGZEU..GS121

 1
17859 - GASKET, AIR OUTLET DUCT, NO.2
17859-70010

1GGZEU..GS121

 1
Common parts
90116-06064
90119-06325
90119-08592
90179-06070
90404-51056
90929-01142
91611-40860
92122-60820

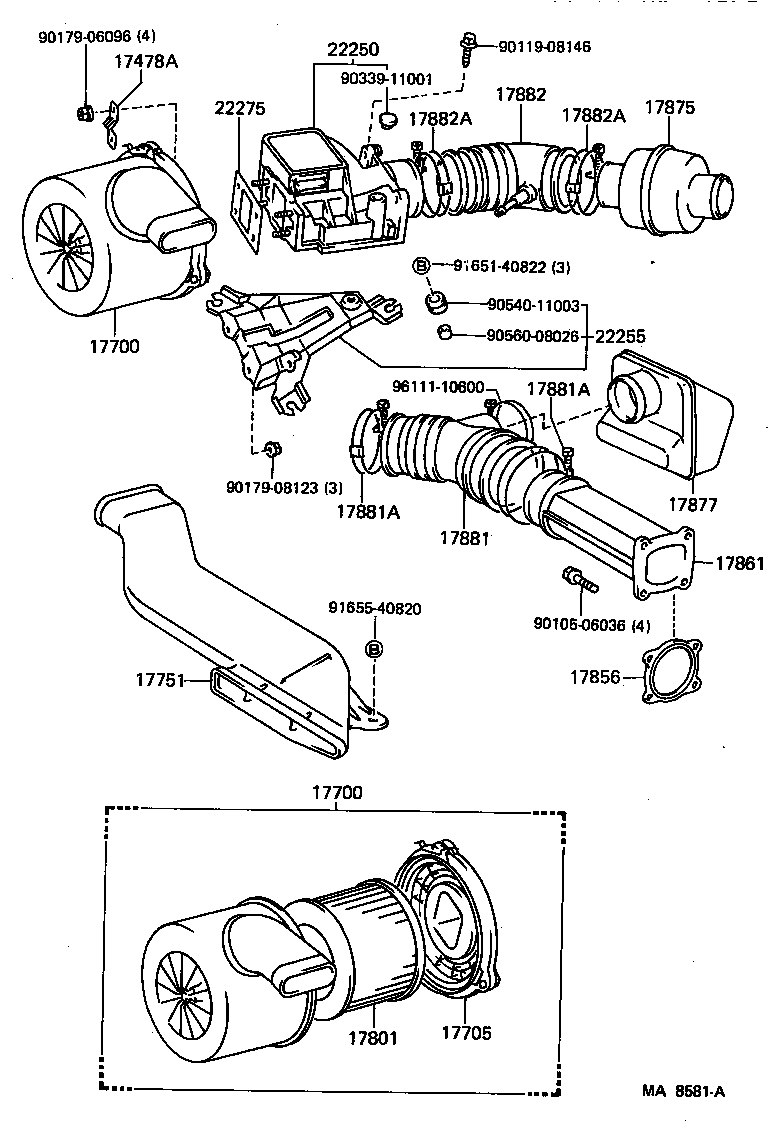

ILLUST NO. 1 OF 2(8509- )1GGZEU

Click highlighted areas on diagram

diagram 17478A 17700 17700 17705 17751 17801 17856 17861 17875 17877 17881 17881A 17881A 17882 17882A 17882A 22250 22255 22275 9010506036 9011908146 9017906096 9017908123 9033911001 9054011003 9056008026 9165140822 9165540820 9611110600
Part # Description Qty Price
17478A - PLATE, LOCK
17478-43010

1GGZEU,1GEJ..GS121,126

 2
17478-43010

1GGZEU,1GEJ..GS121,126

 2
17700 - CLEANER ASSY, AIR
17700-42190

1GG#..GS121

 1
17700-70070

1GGZEU..GS121

 1
17700 - CLEANER ASSY, AIR
17700-42190

1GG#..GS121

 1
17700-70070

1GGZEU..GS121

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43050

1GG#..GS121

 1
17751 - INLET, AIR CLEANER, NO.1
53299-30150

1GG#,1GEJ..GS121,126

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

1GEU,1GG#,1GEJ..GS12#

 1
17856 - GASKET, AIR INTAKE FLANGE
17856-88300

1GG#..GS121

 1
17861 - CONNECTOR, INTAKE AIR
17861-88301

1GG#..GS121

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-43060

1GG#..GS121

 1
17877 - PIPE, INTAKE AIR CONNECTOR, NO.2
17877-70020

1GGZEU..GS121

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70140

1GGZEU..GS121

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10950

1GG#..GS121

THROTTLE BODY SIDE

 1
96111-10830

1GG#..GS121

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10950

1GG#..GS121

THROTTLE BODY SIDE

 1
96111-10830

1GG#..GS121

PIPE SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-70060

1GG#..GS121

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

1GG#..GS121

AIR FLOW METER SIDE

 1
96111-10830

1GG#..GS121

PIPE SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

1GG#..GS121

AIR FLOW METER SIDE

 1
96111-10830

1GG#..GS121

PIPE SIDE

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-70160

1GGZEU..GS121

 1
22255 - BRACKET, AIR FLOW METER
22209-43020

1GG#,1GEJ..GS121,126

 1
22275 - GASKET, AIR FLOW METER
22275-43010

1GG#..GS121

 1
Common parts
90105-06036
90119-08146
90179-06096
90179-08123
90339-11001
90540-11003
90560-08026
91651-40822
91655-40820
96111-10600
