GS121-STSQR (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 1GGZEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1GGZEU

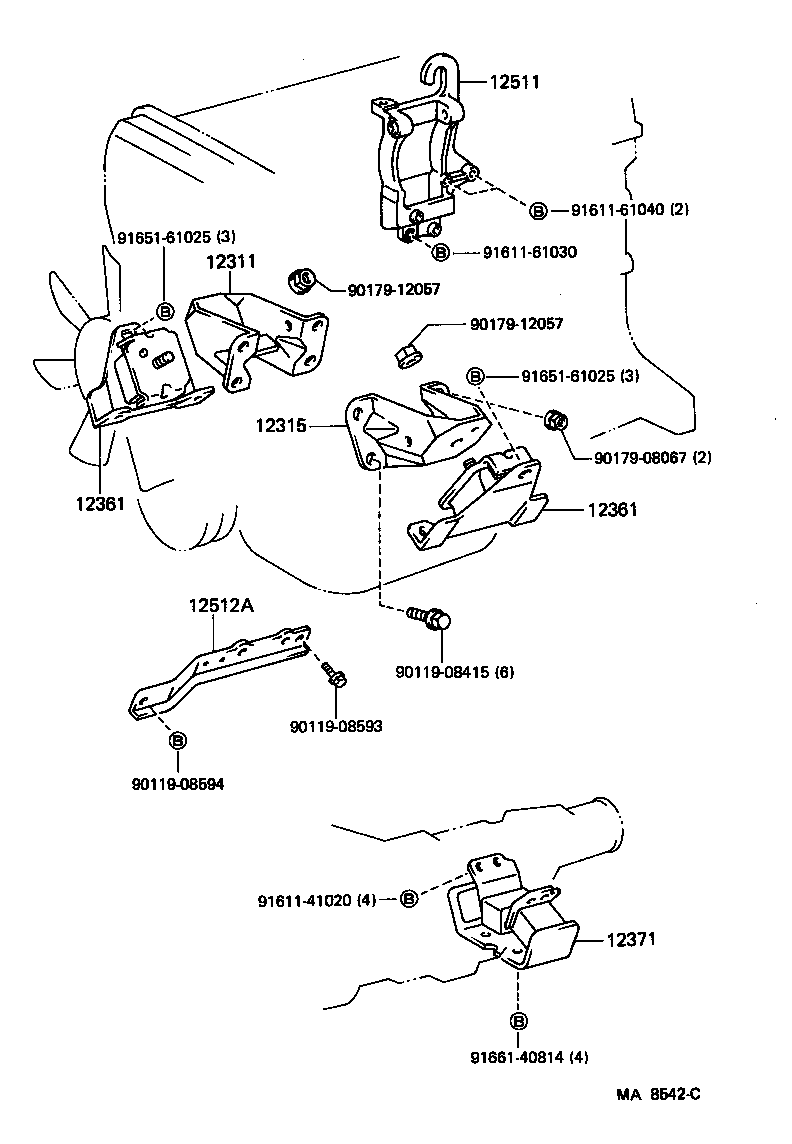

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 12512A 9011908415 9011908593 9011908594 9017908067 9017912057 9017912057 9161141020 9161161030 9161161040 9165161025 9165161025 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70030

1G#..GS12#

 1
12311-70060

1GEU,1GG#,1GEJ..GS12#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70040

1GEU,1GG#,1GEJ..GS12#

 1
12315-70030

1G#..GS12#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70010

1G#..GS12#

 2
12361-70040

1GG#..GS121

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70010

1G#..GS12#

 2
12361-70040

1GG#..GS121

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

1GEU,1GG#,1GEJ..GS12#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-70010

1GGZEU..GS121

 1
12512A - BRACKET, ALTERNATOR, NO.2
12512-70010

1GGZEU..GS121

 1
Common parts
90119-08415
90119-08593
90119-08594
90179-08067
90179-12057
91611-41020
91611-61030
91611-61040
91651-61025
91661-40814
