GS121-STPQR (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 1GGZEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

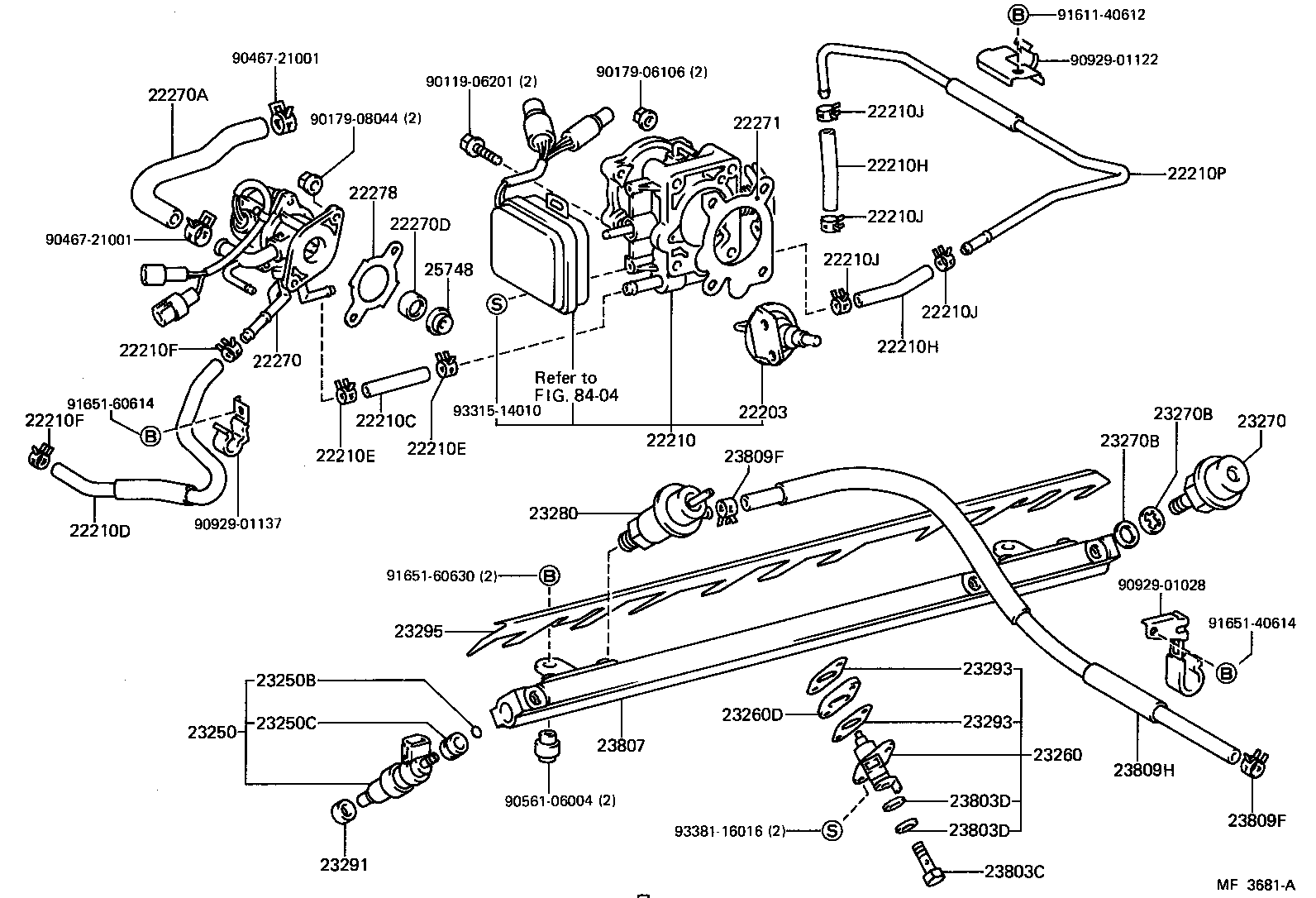

ILLUST NO. 1 OF 3(8509- )1GGZEU

Click highlighted areas on diagram

diagram 22203 22210 22210C 22210D 22210E 22210E 22210F 22210F 22210H 22210H 22210J 22210J 22210J 22210J 22210P 22270 22270A 22270D 22271 22278 23250 23250B 23250C 23260 23260D 23270 23270B 23270B 23280 23291 23293 23293 23295 23803C 23803D 23803D 23807 23809F 23809F 23809H 25748 8404 9011906201 9017906106 9017908044 9046721001 9046721001 9056106004 9092901028 9092901122 9092901137 9161140612 9165140614 9165160614 9165160630 9331514010 9338116016
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70020

1GG#..GS121

 1
22210 - BODY ASSY, THROTTLE
22210-70150

1GGZEU..GS121

 1
22210C - HOSE, WATER BY-PASS, NO.1
90445-15009

1GGZEU..GS121

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-70040

1GGZEU..GS121

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

1GG#..GS121

 4
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

1GG#..GS121

 4
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

1GG#..GS121

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

1GG#..GS121

 2
22210H - HOSE, WATER BY-PASS, NO.3
90445-15009

1GG#..GS121

 2
22210H - HOSE, WATER BY-PASS, NO.3
90445-15009

1GG#..GS121

 2
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13001

1GG#..GS121

 4
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13001

1GG#..GS121

 4
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13001

1GG#..GS121

 4
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13001

1GG#..GS121

 4
22210P - PIPE, WATER BY-PASS
16279-88305

1GG#..GS121

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70061

1GGZEU..GS121

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
17344-70020

1GGZEU..GS121

 1
22270D - WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE)
90210-25001

1GGZEU..GS121

 1
22271 - GASKET, THROTTLE BODY
22271-88301

1GG#..GS121

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-88340

1GGZEU..GS121

 1
23250 - INJECTOR ASSY, FUEL
23209-70040

1GGZEU..GS121

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GEU,1GG#,1GEJ..GS12#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GEU,1GG#,1GEJ..GS12#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-79075

1GGZEU..GS121

 1
23260D - INSULATOR, COLD START FUEL INJECTOR
23281-70010

1GGZEU..GS121

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70020

1GGZEU..GS121

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

1GG#..GS121

DAMPER SIDE

 1
90430-12005

1GG#..GS121

DELIVERY PIPE SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

1GG#..GS121

DAMPER SIDE

 1
90430-12005

1GG#..GS121

DELIVERY PIPE SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70040

1GGZEU..GS121

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GEU,1GG#,1GEJ..GS12#

 6
23293 - GASKET, COLD START INJECTOR
23293-70020

1GEU,1GGZEU,1GEJ..GS12#

 2
23293 - GASKET, COLD START INJECTOR
23293-70020

1GEU,1GGZEU,1GEJ..GS12#

 2
23295 - HOLDER, INJECTOR, NO.1
23295-70011

1GGZEU..GS121

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GEU,1GG#,1GEJ..GS12#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GEU,1GG#,1GEJ..GS12#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GEU,1GG#,1GEJ..GS12#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-88301

1GG#..GS121

 1
23807-88300

1GG#..GS121

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GG#..GS121

 2
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GG#..GS121

 2
23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR
90447-15003

1GGZEU..GS121

 1
25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL)
25748-88340

1GGZEU..GS121

 1
Common parts
90119-06201
90179-06106
90179-08044
90467-21001
90561-06004
90929-01028
90929-01122
90929-01137
91611-40612
91651-40614
91651-60614
91651-60630
93315-14010
93381-16016
Linked diagrams
8404
