GS121-STPQF (1983)
Toyota Crown

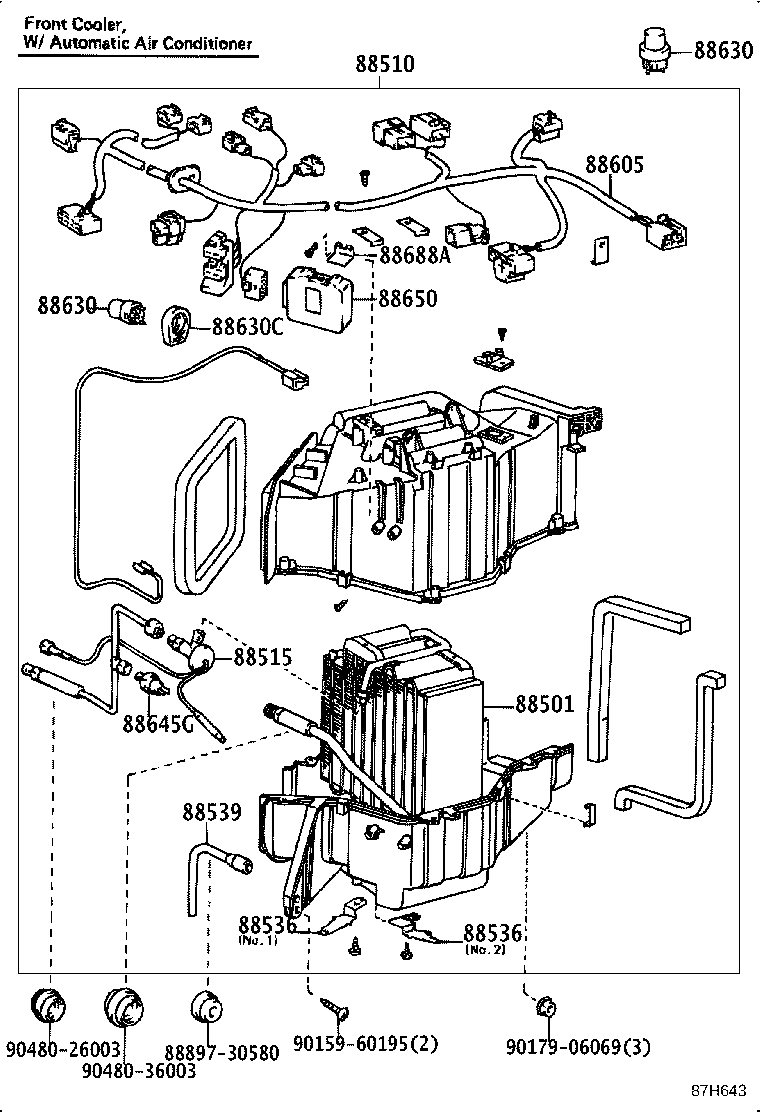

ILLUST NO. 1 OF 3(8308- )GS121,MS123,125..ROY,SSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30580 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88501-30580 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88501-30590 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88501-30591 |
GS120,121,MS125..ROY,SSL FR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30860 |
GS121,MS123,125..ROY RR COOLER |
1 | ||
| 88510-30880 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88510-30881 |
GS121,MS125..ROY FR COOLER |
1 | ||
| 88510-30850 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88510-3A110 |
GS121,MS125 FR COOLER |
1 | ||
| 88510-3A150 |
GS121,MS125..ROY RR COOLER |
1 | ||
| 88510-30870 |
GS121..ROY FR COOLER,W/*MPAAC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88515-22070 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88515-30310 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88515-22070 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88515-30320 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 88515-30320 |
GS121,MS125 FR COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-30870 |
GS121,MS123,125..ROY NO.2 |
1 | ||
| 88688-3A040 |
GS121,MS125..ROY NO.2 |
1 | ||
| 88688-30820 |
GS121,MS123,125..ROY,SSL NO.1 |
2 | ||
| 88688-30870 |
GS121,MS125 NO.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-30870 |
GS121,MS123,125..ROY NO.2 |
1 | ||
| 88688-3A040 |
GS121,MS125..ROY NO.2 |
1 | ||
| 88688-30820 |
GS121,MS123,125..ROY,SSL NO.1 |
2 | ||
| 88688-30870 |
GS121,MS125 NO.2 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30590 |
GS12#,LS12#,MS12#,YS120 FR COOLER |
1 | ||
| 88539-30580 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88539-30580 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30460 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88608-30480 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FRONT COOLER,W/*AAC |
1 | ||
| 88608-30470 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88608-30481 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FR COOLER,W/*AAC |
1 | ||
| 88608-30470 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88608-30550 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SDX,SPE,SSL) FR COOLER,W/*AAC |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GS12#,LS12#,MS123,125 B4 TYPE |
5 | ||
| 90987-02004 |
GS120,121,LS120,MS125..HT M4 TYPE |
4 | ||
| 90987-02004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) M4 TYPE |
4 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GS12#,LS12#,MS123,125 B4 TYPE |
5 | ||
| 90987-02004 |
GS120,121,LS120,MS125..HT M4 TYPE |
4 | ||
| 90987-02004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) M4 TYPE |
4 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 85959-30030 |
GS121,MS125..ROY |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
GS121,MS123,125 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30450 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88650-30440 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88650-30470 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FR COOLER,W/*AAC |
1 | ||
| 88650-30460 |
GS121..ROY FR COOLER,W/*MPAAC |
1 | ||
| 88650-30450 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-3A060 |
GS121,MS125..TWC |
1 | ||
| Common parts | ||||
| 88897-30580 | ||||
| 90159-60195 | ||||
| 90179-06069 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||

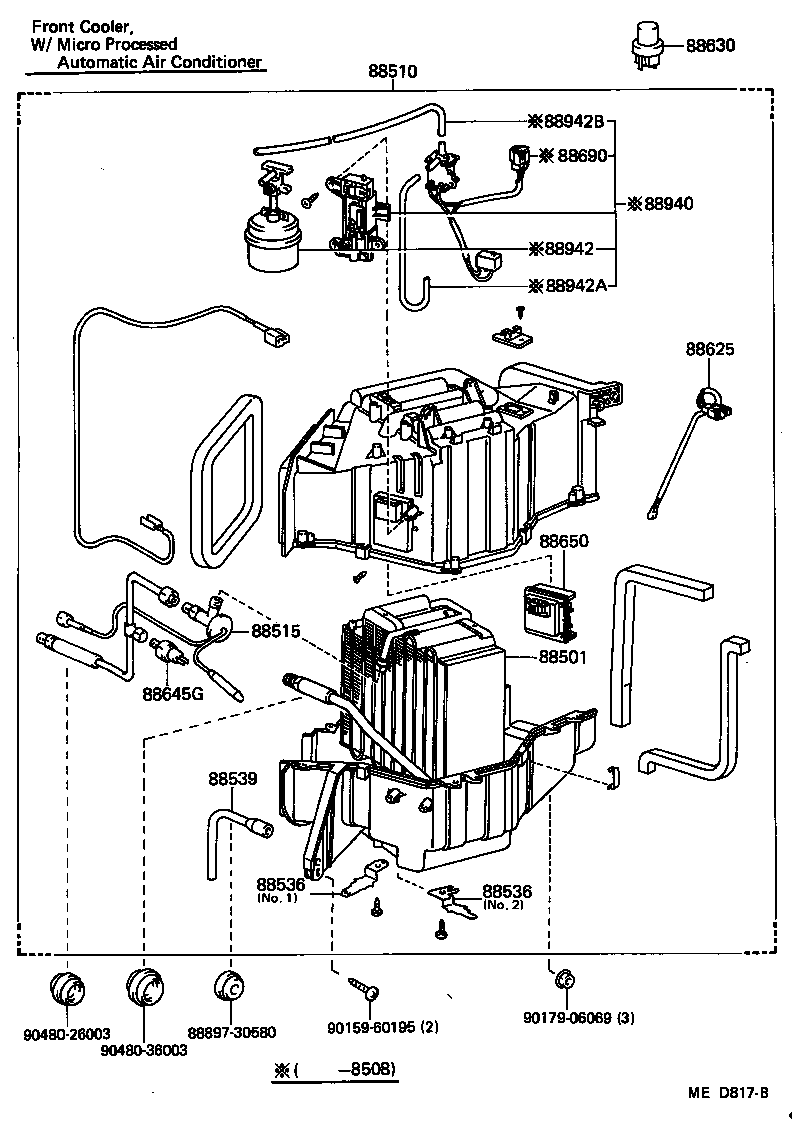

ILLUST NO. 1 OF 3(8308- )MS123,125 ; (8408- )GS121..ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30580 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88501-30580 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88501-30590 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88501-30591 |
GS120,121,MS125..ROY,SSL FR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30860 |
GS121,MS123,125..ROY RR COOLER |
1 | ||
| 88510-30880 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88510-30881 |
GS121,MS125..ROY FR COOLER |
1 | ||
| 88510-30850 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88510-3A110 |
GS121,MS125 FR COOLER |
1 | ||
| 88510-3A150 |
GS121,MS125..ROY RR COOLER |
1 | ||
| 88510-30870 |
GS121..ROY FR COOLER,W/*MPAAC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88515-22070 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88515-30310 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88515-22070 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88515-30320 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 88515-30320 |
GS121,MS125 FR COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-30870 |
GS121,MS123,125..ROY NO.2 |
1 | ||
| 88688-3A040 |
GS121,MS125..ROY NO.2 |
1 | ||
| 88688-30820 |
GS121,MS123,125..ROY,SSL NO.1 |
2 | ||
| 88688-30870 |
GS121,MS125 NO.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-30870 |
GS121,MS123,125..ROY NO.2 |
1 | ||
| 88688-3A040 |
GS121,MS125..ROY NO.2 |
1 | ||
| 88688-30820 |
GS121,MS123,125..ROY,SSL NO.1 |
2 | ||
| 88688-30870 |
GS121,MS125 NO.2 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30590 |
GS12#,LS12#,MS12#,YS120 FR COOLER |
1 | ||
| 88539-30580 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88539-30580 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-30590 |
GS121..ROY W/*MPAAC |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GS12#,LS12#,MS123,125 B4 TYPE |
5 | ||
| 90987-02004 |
GS120,121,LS120,MS125..HT M4 TYPE |
4 | ||
| 90987-02004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) M4 TYPE |
4 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
GS121,MS123,125 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30450 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88650-30440 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88650-30470 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FR COOLER,W/*AAC |
1 | ||
| 88650-30460 |
GS121..ROY FR COOLER,W/*MPAAC |
1 | ||
| 88650-30450 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88941-30010 |
GS121..ROY W/*MPAAC,FR COOLER |
1 | ||
| 88691-30450 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88691-30450 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||

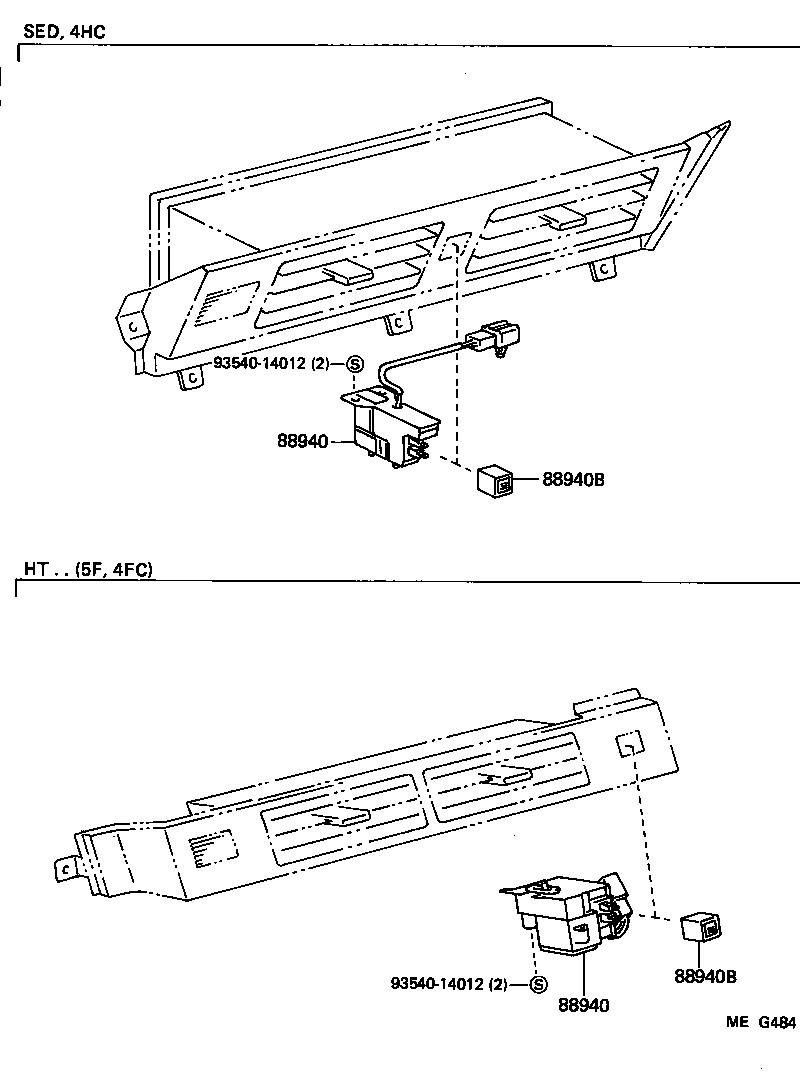

| 88940 - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-30010 |
GS121..ROY W/*MPAAC |
1 | ||
| 88940-30050 |
GS120,121,LS120,MS125..HT..(4FC,5F)..(ROY,SAL) |
1 | ||
| 88942 - DIAPHRAGM, VACUUM | ||||
| 88942-30010 |
GS121..ROY W/*MPAAC |
1 | ||
| 88942A - HOSE | ||||
| 90445-08254 |
GS121,MS125..ROY W/*MPAAC |
1 | ||
| 90445-06071 |
GS121..ROY W/*MPAAC |
1 | ||
| 88942B - HOSE | ||||
| 90445-08238 |
GS121..ROY W/*MPAAC |
1 | ||
| Common parts | ||||
| 88897-30580 | ||||
| 90159-60195 | ||||
| 90179-06069 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||

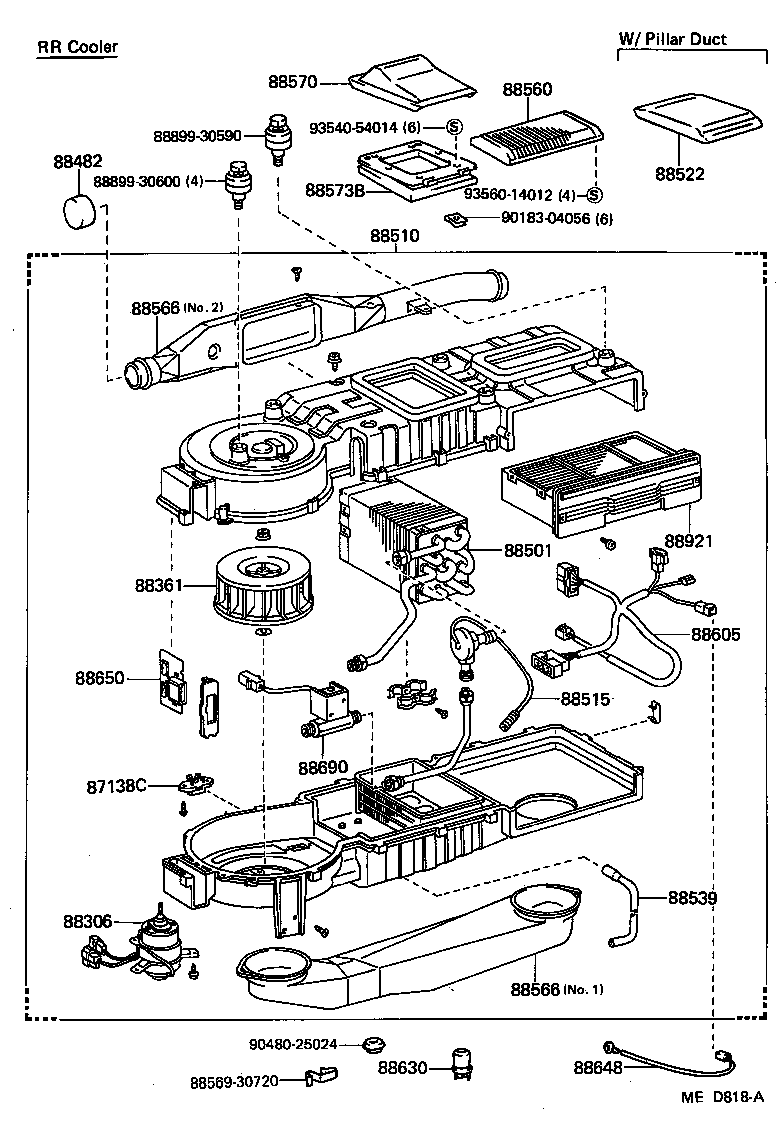

ILLUST NO. 2 OF 3(8308- )ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-30290 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 87138-30290 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30320 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88550-30320 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-30280 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88541-30280 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-30260 |
GS121,MS125..HT..ROY RR COOLER |
2 | ||
| 88482-30260 |
GS121,MS123,125..ROY RR COOLER |
2 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30580 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88501-30580 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88501-30590 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88501-30591 |
GS120,121,MS125..ROY,SSL FR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30860 |
GS121,MS123,125..ROY RR COOLER |
1 | ||
| 88510-30880 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88510-30881 |
GS121,MS125..ROY FR COOLER |
1 | ||
| 88510-30850 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88510-3A110 |
GS121,MS125 FR COOLER |
1 | ||
| 88510-3A150 |
GS121,MS125..ROY RR COOLER |
1 | ||
| 88510-30870 |
GS121..ROY FR COOLER,W/*MPAAC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88515-22070 |
GS121,MS123,125..ROY FR COOLER |
1 | ||
| 88515-30310 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88515-22070 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88515-30320 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 88515-30320 |
GS121,MS125 FR COOLER |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-3044012 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) AIROUTLET=RR PILLAR,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 88522-3044014 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SSL) AIROUTLET=RR PILLAR,BLUE,BLUE,TRIM8# |
1 | ||
| 88522-3044006 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SSL) AIROUTLET=RR PILLAR,BROWN,BROWN,TRIM4# |
1 | ||
| 88522-3044024 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SSL) AIROUTLET=RR PILLAR,BLUE,BLUE,TRIM8# |
1 | ||
| 88522-3044015 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) AIROUTLET=RR PILLAR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88522-3044022 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SSL) AIROUTLET=RR PILLAR,MAROON,MAROON,TRIM3# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30590 |
GS12#,LS12#,MS12#,YS120 FR COOLER |
1 | ||
| 88539-30580 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88539-30580 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-3030015 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 88561-3030012 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 88561-3030024 |
GS120,121,LS120,MS125..HT BLUE,BLUE,TRIM8# |
1 | ||
| 88561-3030016 |
GS120,121,LS120,MS125..HT BROWN,BROWN,TRIM4# |
1 | ||
| 88561-3030014 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BLUE,BLUE,TRIM8# |
1 | ||
| 88561-3030014 |
GS120,121,LS120,MS125..HT BLUE,BLUE,TRIM8# |
1 | ||
| 88561-3030022 |
GS120,121,LS120,MS125..HT MAROON,MAROON,TRIM3# |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30720 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) NO.1 |
1 | ||
| 88576-30730 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SSL) NO.2,AIROUTRET=RR PILLAR |
1 | ||
| 88576-30720 |
GS120,121,LS120,MS125..HT NO.1 |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30720 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) NO.1 |
1 | ||
| 88576-30730 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SSL) NO.2,AIROUTRET=RR PILLAR |
1 | ||
| 88576-30720 |
GS120,121,LS120,MS125..HT NO.1 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-3063002 |
LS120..HT..TDE;LS120..SDX..TDE;GS121,LS120,MS123,125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,TD,TWC) AIROUTLET=CENTER,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 88570-3063004 |
LS120..HT..TDE;LS120..SDX..TDE;GS121,LS120,MS123,125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,TD,TWC) AIROUTLET=CENTER,BLUE,BLUE,TRIM8# |
1 | ||
| 88570-3063006 |
GS120,121,LS120,MS125..HT..(ROY,SAL) AIROUTLET=CENTER,BROWN,BROWN,TRIM4# |
1 | ||
| 88570-3063014 |
GS120,121,LS120,MS125..HT..(ROY,SAL) AIROUTLET=CENTER,BLUE,BLUE,TRIM8# |
1 | ||
| 88570-3063012 |
GS120,121,LS120,MS125..HT..(ROY,SAL) AIROUTLET=CENTER,MAROON,MAROON,TRIM3# |
1 | ||
| 88570-3063004 |
GS120,121,LS120,MS125..HT..(ROY,SAL) AIROUTLET=CENTER,BLUE,BLUE,TRIM8# |
1 | ||
| 88570-3063005 |
LS120..HT..TDE;LS120..SDX..TDE;GS121,LS120,MS123,125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,TD,TWC) AIROUTLET=CENTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88573B - BASE, GRILLE | ||||
| 88573-30510 |
GS121,MS123,125;LS120..SDX..TDE;LS120..HT..(SAL,SPE)..TDE;LS120..(HT,SED)..(4FC,5F)..(DLX,SAL,SDX,SPE)..(DSL,TD) AIROUTLET=CENTER |
1 | ||
| 88573-30500 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SSL) AIROUTLET=RR PILLAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30460 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88608-30480 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FRONT COOLER,W/*AAC |
1 | ||
| 88608-30470 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88608-30481 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FR COOLER,W/*AAC |
1 | ||
| 88608-30470 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88608-30550 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SDX,SPE,SSL) FR COOLER,W/*AAC |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GS12#,LS12#,MS123,125 B4 TYPE |
5 | ||
| 90987-02004 |
GS120,121,LS120,MS125..HT M4 TYPE |
4 | ||
| 90987-02004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) M4 TYPE |
4 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30530 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) W/RR COOLER |
1 | ||
| 88648-30530 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30450 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88650-30440 |
GS121..ROY RR COOLER,W/*MPAAC |
1 | ||
| 88650-30470 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC) FR COOLER,W/*AAC |
1 | ||
| 88650-30460 |
GS121..ROY FR COOLER,W/*MPAAC |
1 | ||
| 88650-30450 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88941-30010 |
GS121..ROY W/*MPAAC,FR COOLER |
1 | ||
| 88691-30450 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88691-30450 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| 88921 - FILTER, AIR PURIFIER, NO.1 | ||||
| 88926-30080 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88926-30090 |
GS120,121,LS120,MS125..HT RR COOLER |
1 | ||
| Common parts | ||||
| 88569-30720 | ||||
| 88899-30590 | ||||
| 88899-30600 | ||||
| 90183-04056 | ||||
| 90480-25024 | ||||
| 93540-54014 | ||||
| 93560-14012 | ||||
ILLUST NO. 3 OF 3(8508- )ROY,SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88940 - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-30010 |
GS121..ROY W/*MPAAC |
1 | ||
| 88940-30050 |
GS120,121,LS120,MS125..HT..(4FC,5F)..(ROY,SAL) |
1 | ||
| 88940 - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-30010 |
GS121..ROY W/*MPAAC |
1 | ||
| 88940-30050 |
GS120,121,LS120,MS125..HT..(4FC,5F)..(ROY,SAL) |
1 | ||
| 88940B - KNOB SUB-ASSY, CONTROL | ||||
| 55905-30110 |
GS120,121,LS120,MS125..ROY,SAL |
1 | ||
| 88940B - KNOB SUB-ASSY, CONTROL | ||||
| 55905-30110 |
GS120,121,LS120,MS125..ROY,SAL |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
