GS121-STPQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

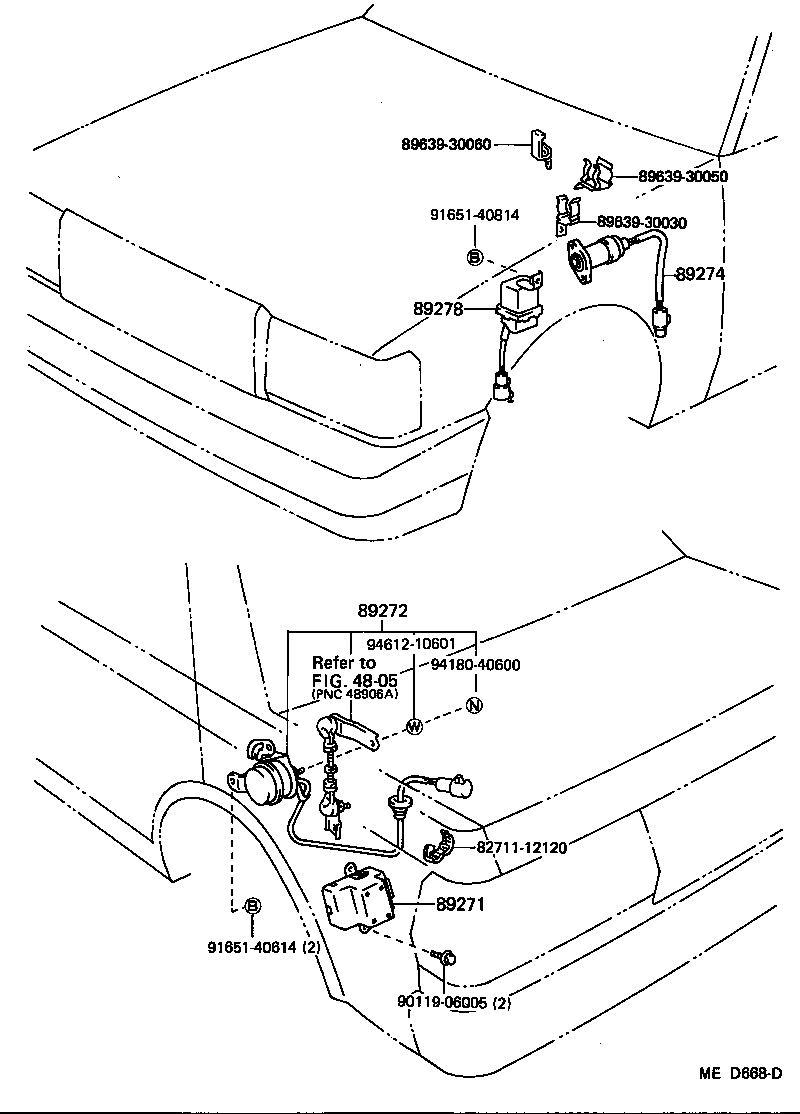

Click highlighted areas on diagram

diagram 4805 8271112120 89271 89272 89274 89278 8963930030 8963930050 8963930060 9011906005 9165140614 9165140814 9418040600 9461210601
Part # Description Qty Price
89271 - COMPUTER, HEIGHT CONTROL
89271-30020

GS121,MS123,125..HT..ROY

 1
89272 - SENSOR, HEIGHT CONTROL
89270-30020

GS121,MS123,125..HT..ROY

 1
89274 - SOLENOID, AIR VALVE
89274-16020

GS121,MS123,125..ROY

 1
89278 - RELAY, HEIGHT CONTROL
89278-30010

GS121,MS123,125..ROY

 1
Common parts
82711-12120
89639-30030
89639-30050
89639-30060
90119-06005
91651-40614
91651-40814
94180-40600
94612-10601
Linked diagrams
4805
