GS121-STPQF (1983)
Toyota Crown

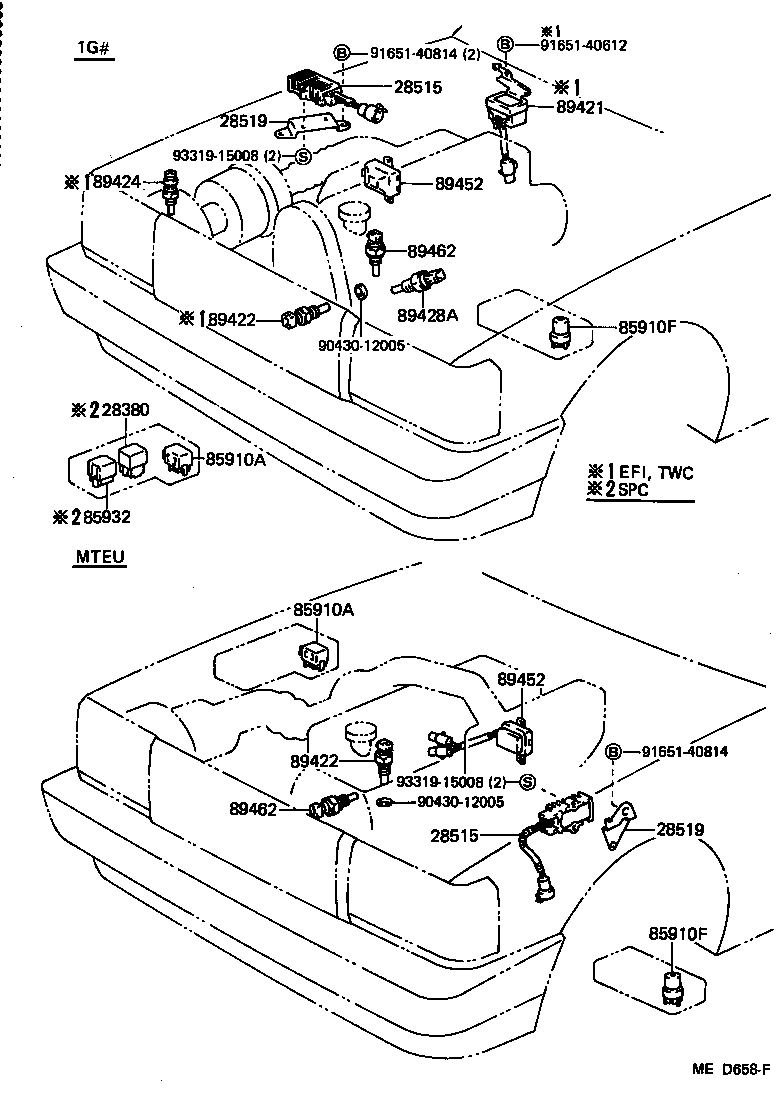

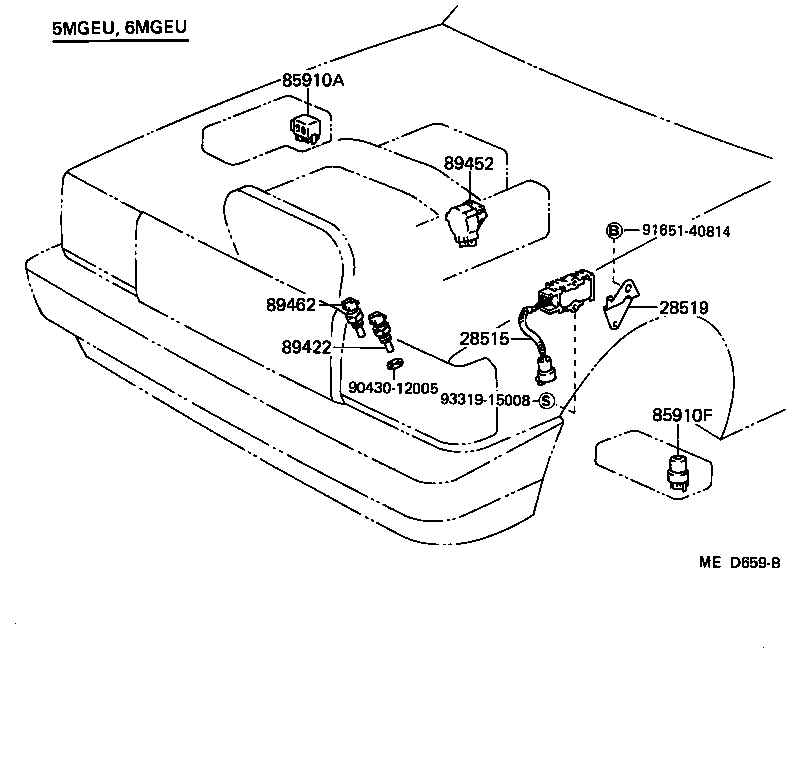

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-43020 |
1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12# |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-43020 |
1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12# |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-30030 |
1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12# |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-30030 |
1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12# |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-30060 |
GS121..TWC |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
GS120,121..EFI,TWC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-30040 |
GS121,MS120..TBO,TWC |
1 | ||
| 89452-28040 |
GS120,121,MS125..EFI,TWC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-30040 |
GS121,MS120..TBO,TWC |
1 | ||
| 89452-28040 |
GS120,121,MS125..EFI,TWC |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GS12# |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GS12# |
1 | ||
| Common parts | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93319-15008 | ||||
ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-43020 |
1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12# |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-30030 |
1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12# |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-30040 |
GS121,MS120..TBO,TWC |
1 | ||
| 89452-28040 |
GS120,121,MS125..EFI,TWC |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GS12# |
1 | ||
| Common parts | ||||
| 90430-12005 | ||||
| 91651-40814 | ||||
| 93319-15008 | ||||

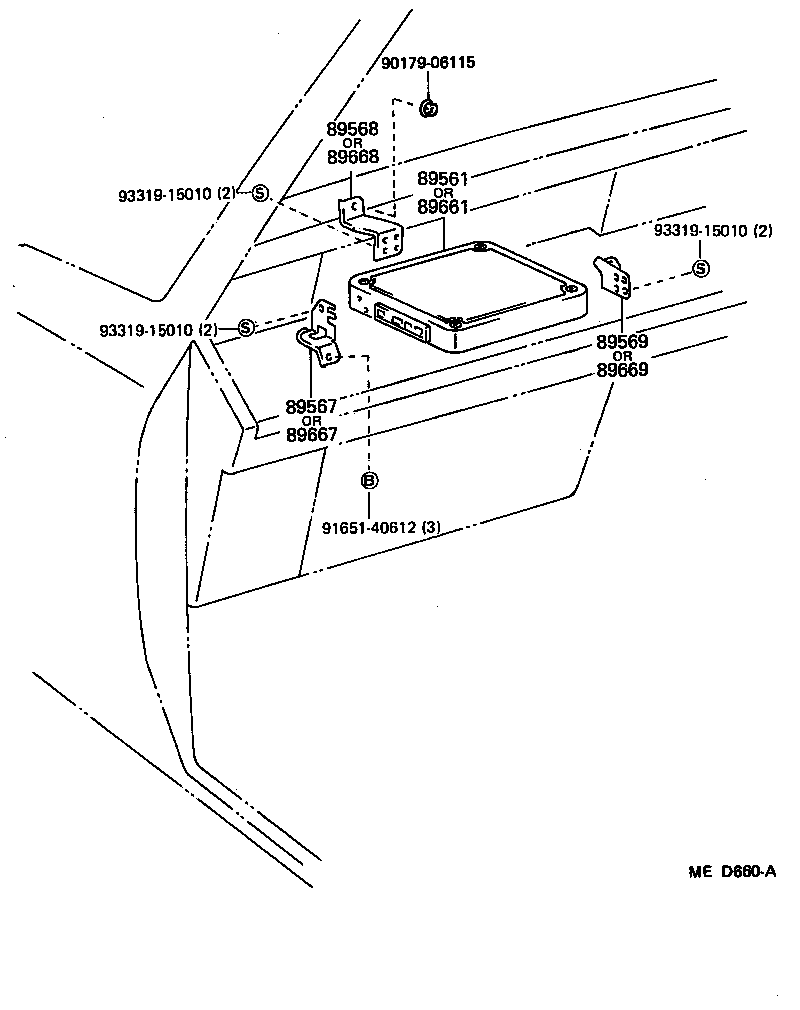

ILLUST NO. 2 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-30101 |
GS121..ATM |
1 | ||
| 89661-30102 |
GS121 |
1 | ||
| 89661-30100 |
GS121 |
1 | ||
| 89661-30190 |
GS121..TWC |
1 | ||
| 89661-30191 |
GS121..TWC |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89567-30100 |
GS120,121,MS120,125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) |
2 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89568-30100 |
GS120,121,MS120,125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) |
2 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89569-30070 |
GS120,121,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,SPC,TBO,TWC) |
2 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91651-40612 | ||||
| 93319-15010 | ||||
