Toyota Crown GS121 WIRING & CLAMP

GS121-STPQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1987

Engine 1GGEU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07119	GS12#,MS12#,YS120 TRANSMITION--FRAME	08/1983 - 03/1984	1
90980-07200	GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL	08/1983 - 08/1987	1
90980-07219	GS12#,MS12#,YS120 CLUTCH HOUSING--BODY	08/1983 - 08/1987	1
90980-07238	GS12#,MS12#,YS120 TRANSMITION--FRAME	03/1984 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07119	GS12#,MS12#,YS120 TRANSMITION--FRAME	08/1983 - 03/1984	1
90980-07200	GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL	08/1983 - 08/1987	1
90980-07219	GS12#,MS12#,YS120 CLUTCH HOUSING--BODY	08/1983 - 08/1987	1
90980-07238	GS12#,MS12#,YS120 TRANSMITION--FRAME	03/1984 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07119	GS12#,MS12#,YS120 TRANSMITION--FRAME	08/1983 - 03/1984	1
90980-07200	GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL	08/1983 - 08/1987	1
90980-07219	GS12#,MS12#,YS120 CLUTCH HOUSING--BODY	08/1983 - 08/1987	1
90980-07238	GS12#,MS12#,YS120 TRANSMITION--FRAME	03/1984 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07119	GS12#,MS12#,YS120 TRANSMITION--FRAME	08/1983 - 03/1984	1
90980-07200	GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL	08/1983 - 08/1987	1
90980-07219	GS12#,MS12#,YS120 CLUTCH HOUSING--BODY	08/1983 - 08/1987	1
90980-07238	GS12#,MS12#,YS120 TRANSMITION--FRAME	03/1984 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07119	GS12#,MS12#,YS120 TRANSMITION--FRAME	08/1983 - 03/1984	1
90980-07200	GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL	08/1983 - 08/1987	1
90980-07219	GS12#,MS12#,YS120 CLUTCH HOUSING--BODY	08/1983 - 08/1987	1
90980-07238	GS12#,MS12#,YS120 TRANSMITION--FRAME	03/1984 - 08/1987	1
82111 - WIRE, ENGINE ROOM MAIN
82111-30360	GS121	08/1983 - 05/1984	1
82111-30361	GS121	05/1984 - 01/1985	1
82111-30362	GS121	01/1985 - 09/1985	1
82111-30363	GS121..TWC	09/1985 - 08/1986	1
82111-30364	GS121..TWC	08/1986 - 09/1986	1
82111-30365	GS121..TWC	09/1986 - 08/1987	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-30120	GS121	08/1983 - 09/1985	1
82112-30420	GS121..ROY W/*AD	08/1983 - 09/1985	1
82112-30401	GS120,121..(ROY,SAL)..(EFI,TWC) W/*AD	09/1985 - 08/1987	1
82112-30460	GS120,121..(HT,SED)..(ROY,SAL,SPE,SSL)..(EFI,TWC) DOOR,*RCM	09/1985 - 08/1987	1
82112-30441	GS120,121..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,TWC) FENDER,*RCM	09/1985 - 08/1987	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-30280	GS121	08/1983 - 05/1984	1
82113-30291	GS121..ROY W/*AL	05/1984 - 01/1985	1
82113-30281	GS121	05/1984 - 01/1985	1
82113-30290	GS121 W/*AL	08/1983 - 05/1984	1
82113-30340	GS121..ROY W/AL & MPAAC	08/1984 - 01/1985	1
82113-30330	GS121..ROY W/*MPAAC	08/1984 - 01/1985	1
82113-30282	GS121	01/1985 - 09/1985	1
82113-30292	GS121..ROY W/*AL	01/1985 - 09/1985	1
82113-30341	GS121..ROY W/AL & MPAAC	01/1985 - 09/1985	1
82113-30331	GS121..ROY W/*MPAAC	01/1985 - 09/1985	1
82113-30283	GS121..TWC	09/1985 - 08/1987	1
82121 - WIRE, ENGINE
82121-30110	GS121..ATM	08/1983 - 09/1985	1
82121-30111	GS121..TWC	09/1985 - 08/1987	1
82122 - WIRE, ENGINE, NO.2
82122-30100	GS12#	08/1983 - 08/1987	1
82123 - WIRE, ENGINE, NO.3
82123-30080	GS12# 55D26L(N50ZL) OR 55D23L-MF	08/1983 - 08/1987	1
82131 - WIRE, COWL
82131-30610	GS121..HT..(4FC,5F) W/DS & (AL OR *NC)	08/1983 - 05/1984	1
82131-3A360	GS121..HT..(4FC,5F) W/AL OR NC	08/1983 - 05/1984	1
82131-3A350	GS121..HT..(4FC,5F)	08/1983 - 05/1984	1
82131-3A500	GS121..HT..(4FC,5F)..ROY	05/1984 - 08/1984	1
82131-3A510	GS121..HT..(4FC,5F)..ROY W/AL OR NC	05/1984 - 08/1984	1
82131-30611	GS121..HT..(4FC,5F)..ROY W/*DS	08/1984 - 11/1984	1
82131-3A520	GS121..HT..(4FC,5F)..ROY W/DS & (AL OR *NC)	05/1984 - 08/1984	1
82131-3A550	GS121..HT..(4FC,5F)..ROY W/*DS	11/1984 - 03/1985	1
82131-3A361	GS121..HT..(4FC,5F)..ROY W/AL OR NC	08/1984 - 04/1985	1
82131-3A351	GS121..HT..(4FC,5F)..ROY	08/1984 - 04/1985	1
82131-3A551	GS121..HT..(4FC,5F)..ROY W/*DS	03/1985 - 09/1985	1
82131-3A362	GS121..HT..(4FC,5F)..ROY W/AL OR NC,W/O *DS	04/1985 - 09/1985	1
82131-3A352	GS121..HT..(4FC,5F)..ROY	04/1985 - 09/1985	1
82131-3A363	GS121..HT..TWC W/AD,FM OR *NC	09/1985 - 08/1987	1
82131-3A353	GS121..HT..TWC	09/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08223	GS12#,MS12#,YS120 30A,ｵｽ端子,ﾋﾟﾝｸ,30A..MALE	09/1985 - 08/1987	1
90982-08203	GS12#,LS12#,MS12#,YS120 80A,ｵｽ端子,黒,80A	08/1983 - 09/1985	2
90982-08189	GS12#,LS12#,MS12#,YS120 40A,ﾒｽ端子,緑,40A	08/1983 - 08/1987	2
90982-08203	GS121,LS12#,MS12#,YS120 80A,ｵｽ端子,黒,80A	09/1985 - 08/1987	2
90982-08188	GS12#,MS12#,YS120 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A..FEMALE	08/1983 - 09/1985	1
90982-08223	GS12#,MS120,123,YS120 30A,ｵｽ端子,ﾋﾟﾝｸ,30A..MALE	08/1983 - 09/1985	1
82210C - FUSIBLE LINK
90982-08223	GS12#,MS12#,YS120 30A,ｵｽ端子,ﾋﾟﾝｸ,30A..MALE	09/1985 - 08/1987	1
90982-08203	GS12#,LS12#,MS12#,YS120 80A,ｵｽ端子,黒,80A	08/1983 - 09/1985	2
90982-08189	GS12#,LS12#,MS12#,YS120 40A,ﾒｽ端子,緑,40A	08/1983 - 08/1987	2
90982-08203	GS121,LS12#,MS12#,YS120 80A,ｵｽ端子,黒,80A	09/1985 - 08/1987	2
90982-08188	GS12#,MS12#,YS120 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A..FEMALE	08/1983 - 09/1985	1
90982-08223	GS12#,MS120,123,YS120 30A,ｵｽ端子,ﾋﾟﾝｸ,30A..MALE	08/1983 - 09/1985	1
82241C - WIRE, RELAY
82241-30180	GS121,LS120..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY	09/1985 - 08/1987	1
82241-30180	GS121,LS120,MS12#..(DLX,ROY,SAL,SDX,SPE)..(DSL,TBO,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY	08/1983 - 09/1985	1
82241C - WIRE, RELAY
82241-30180	GS121,LS120..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY	09/1985 - 08/1987	1
82241-30180	GS121,LS120,MS12#..(DLX,ROY,SAL,SDX,SPE)..(DSL,TBO,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY	08/1983 - 09/1985	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-30020	GS12#,LS12#,MS12#	07/1985 - 09/1985	1
82620-30020	GS12#,LS12#,MS12#,YS120	08/1983 - 07/1985	1
82620-30030	GS12#,LS12#,MS12#,YS120	09/1985 - 08/1987	1
82671 - BLOCK, JUNCTION
82671-30070	GS120,121,LS120,MS12#,YS120 LH	08/1983 - 08/1987	1
82671-30060	GS120,121,LS120,MS12#,YS120 RH	08/1983 - 09/1985	1
82671-30061	GS120,121,LS120,MS12#,YS120 RH	09/1985 - 08/1987	1
82823 - CAP, TERMINAL, NO.1
82823-22060	GS12#,MS120,YS120	08/1986 - 08/1987	1
Common parts
90119-06005
90119-08157
91655-40616

ILLUST NO. 2 OF 9(8308- )HT,SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-30270	GS120,121,LS120,MS12#..HT..(ROY,SAL) W/ELECTRIC DOOR MIRROR	08/1983 - 08/1984	1
82151-30220	GS120,121,LS120,MS12#..HT..(ROY,SAL)	08/1983 - 09/1985	1
82151-30271	GS120,121,LS120,MS12#..HT..(ROY,SAL) W/ELECTRIC DOOR MIRROR	08/1984 - 09/1985	1
82151-30221	GS120,121,LS120,MS125..HT..(ROY,SAL)	09/1985 - 08/1987	1
82151-30272	GS121,MS125..HT..ROY W/ELECTRIC DOOR MIRROR	09/1985 - 08/1987	1
82152 - WIRE, FRONT DOOR, LH
82152-30190	GS120,121,LS120,MS12#..HT W/ELECTRIC DOOR MIRROR	08/1983 - 08/1984	1
82152-30191	GS120,121,LS120,MS12#..HT W/ELECTRIC DOOR MIRROR	08/1984 - 09/1985	1
82152-30170	GS120,121,LS120,MS12#..HT	08/1983 - 09/1985	1
82152-30130	GS120,121,LS120,MS125..HT W/ELECTRIC DOOR MIRROR	09/1985 - 08/1987	1
82152-30171	GS120,121,LS120,MS125..HT	09/1985 - 08/1987	1
82153 - WIRE, REAR DOOR, NO.1
82153-30200	GS121,MS123,125..HT..ROY	08/1983 - 09/1985	1
82153-30210	GS121,MS123,125..HT..ROY W/RR POWER SEAT	08/1983 - 09/1985	1
82153-30201	GS121..HT	09/1985 - 08/1987	1
82153-30211	GS121,MS125..HT W/RR POWER SEAT	09/1985 - 08/1987	1
82154 - WIRE, REAR DOOR, NO.2
82154-30080	GS121,MS123,125..HT..ROY	08/1983 - 09/1985	1
82154-30090	GS121,MS123,125..HT..ROY W/RR POWER SEAT	08/1983 - 09/1985	1
82154-30091	GS121,MS125..HT W/RR POWER SEAT	09/1985 - 08/1987	1
82154-30081	GS121..HT	09/1985 - 08/1987	1
82161 - WIRE, FLOOR
82161-30580	GS121,MS123	08/1983 - 10/1983	1
82161-30581	GS121,MS123..ROY	10/1983 - 08/1984	1
82161-30582	GS121,MS125..ROY	08/1984 - 09/1985	1
82161-30650	GS121..HT	09/1985 - 08/1987	1
82161-30583	GS121..HT W/RR POWER SEAT	09/1985 - 08/1987	1
82161 - WIRE, FLOOR
82161-30580	GS121,MS123	08/1983 - 10/1983	1
82161-30581	GS121,MS123..ROY	10/1983 - 08/1984	1
82161-30582	GS121,MS125..ROY	08/1984 - 09/1985	1
82161-30650	GS121..HT	09/1985 - 08/1987	1
82161-30583	GS121..HT W/RR POWER SEAT	09/1985 - 08/1987	1
82162 - WIRE, FLOOR, NO.2
82162-30071	GS121,MS125..ROY W/*MPAAC	08/1984 - 03/1985	1
82162-30050	GS121,MS123..ROY	08/1983 - 08/1984	1
82162-30060	GS121,MS123..ROY W/ESC,*AL OR FR MI-CON SEAT	08/1983 - 09/1985	1
82162-30140	GS121,MS125..ROY W/*MPAAC	03/1985 - 09/1985	1
82162-30051	GS121,MS125..ROY	08/1984 - 09/1985	1
82162-30052	GS121,MS125..4FC,5F W/*PSE	09/1985 - 08/1987	1
82162-30130	GS121..HT..(4FC,5F)..ROY	09/1985 - 08/1987	1
82162 - WIRE, FLOOR, NO.2
82162-30071	GS121,MS125..ROY W/*MPAAC	08/1984 - 03/1985	1
82162-30050	GS121,MS123..ROY	08/1983 - 08/1984	1
82162-30060	GS121,MS123..ROY W/ESC,*AL OR FR MI-CON SEAT	08/1983 - 09/1985	1
82162-30140	GS121,MS125..ROY W/*MPAAC	03/1985 - 09/1985	1
82162-30051	GS121,MS125..ROY	08/1984 - 09/1985	1
82162-30052	GS121,MS125..4FC,5F W/*PSE	09/1985 - 08/1987	1
82162-30130	GS121..HT..(4FC,5F)..ROY	09/1985 - 08/1987	1
82166 - WIRE, CONSOLE BOX
82166-30060	GS121,MS123..HT..4FC..ROY W/MI-CON SEAT	08/1983 - 08/1984	1
82166-30051	GS121,MS125..(4FC,5F)..ROY W/*MPAAC	08/1984 - 11/1984	1
82166-30071	GS121,MS125..HT..4FC..ROY W/MI-CON SEAT & *MPAAC	08/1984 - 11/1984	1
82166-30061	GS121,MS125..HT..4FC..ROY W/MI-CON SEAT	08/1984 - 03/1985	1
82166-30040	GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SDX,SPE)	08/1983 - 09/1985	1
82168 - WIRE, SEAT, NO.2
82168-30030	GS121,MS123,125..ROY RR-RH & LH	08/1983 - 08/1987	2
82168 - WIRE, SEAT, NO.2
82168-30030	GS121,MS123,125..ROY RR-RH & LH	08/1983 - 08/1987	2
82171 - WIRE, ROOF, NO.1
82171-30100	GS121,MS123,125..ROY W/MOON ROOF	08/1983 - 09/1985	1
82171-30140	GS121,MS12#..HT..(ROY,SAL) W/*NC	08/1983 - 09/1985	1
82171-30150	GS120,121,LS120,MS12#..HT	08/1983 - 09/1985	1
82171-30151	GS120,121,LS120,MS125..HT	09/1985 - 08/1987	1
82171-30101	GS120,121,LS120,MS125..HT..(ROY,SAL) W/MOON ROOF	09/1985 - 08/1987	1
82171-30141	GS121,MS125..HT..ROY W/*NC	09/1985 - 08/1987	1
82181A - WIRE, LUGGAGE ROOM, NO.2
82182-30010	GS120,121,LS120,MS12#..(HT,SED)..(DSL,EFI,TBO,TD,TDE,TWC)	08/1983 - 09/1985	1
82182-30010	GS120,121,LS120,MS125..(HT,SED)..(DLX,ROY,SAL,SDX,SPE,SSL)	09/1985 - 08/1987	1
82186 - WIRE, REAR WINDOW, NO.1
82186-30030	GS120,121,LS120,MS12#..HT	08/1983 - 08/1987	1
82223 - WIRE, SWITCH
82223-30050	GS121..HT	09/1985 - 08/1987	2
82541B - WIRE, SEAT ADJUSTER
82541-30120	GS121,MS123..HT..4FC..ROY	08/1983 - 08/1984	1
82541-30121	GS121,MS125..HT..4FC..ROY	08/1984 - 09/1985	1
82671 - BLOCK, JUNCTION
82671-30070	GS120,121,LS120,MS12#,YS120 LH	08/1983 - 08/1987	1
82671-30060	GS120,121,LS120,MS12#,YS120 RH	08/1983 - 09/1985	1
82671-30061	GS120,121,LS120,MS12#,YS120 RH	09/1985 - 08/1987	1
82671 - BLOCK, JUNCTION
82671-30070	GS120,121,LS120,MS12#,YS120 LH	08/1983 - 08/1987	1
82671-30060	GS120,121,LS120,MS12#,YS120 RH	08/1983 - 09/1985	1
82671-30061	GS120,121,LS120,MS12#,YS120 RH	09/1985 - 08/1987	1
Common parts
86394-22010
90119-06005

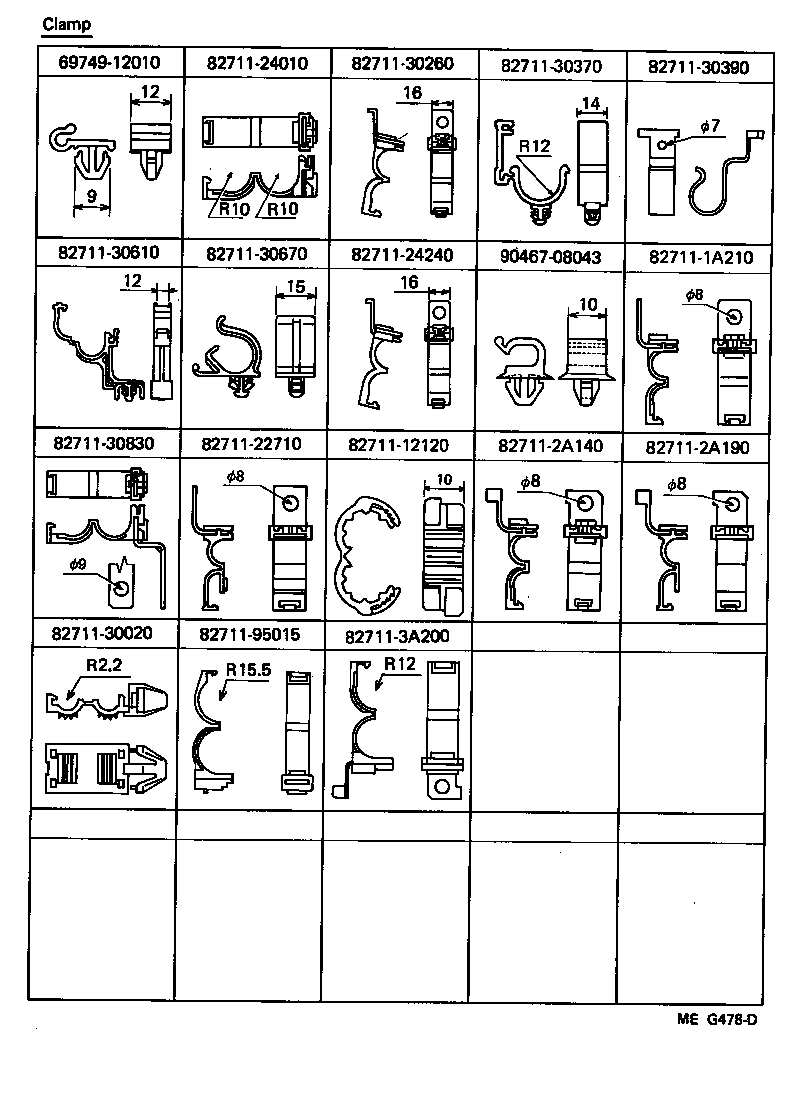

ILLUST NO. 5 OF 9(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12270
82711-14560
82711-22220
82711-22350
82711-22490
82711-22620
82711-22640
82711-22670
82711-24090
82711-24100
82711-30070
82711-30370
82711-30520
82711-30540
82711-30550
82711-30560
82711-30570
82711-30580
82711-30590
82711-30600
82711-30640
82711-30650
82711-30700
82711-30780

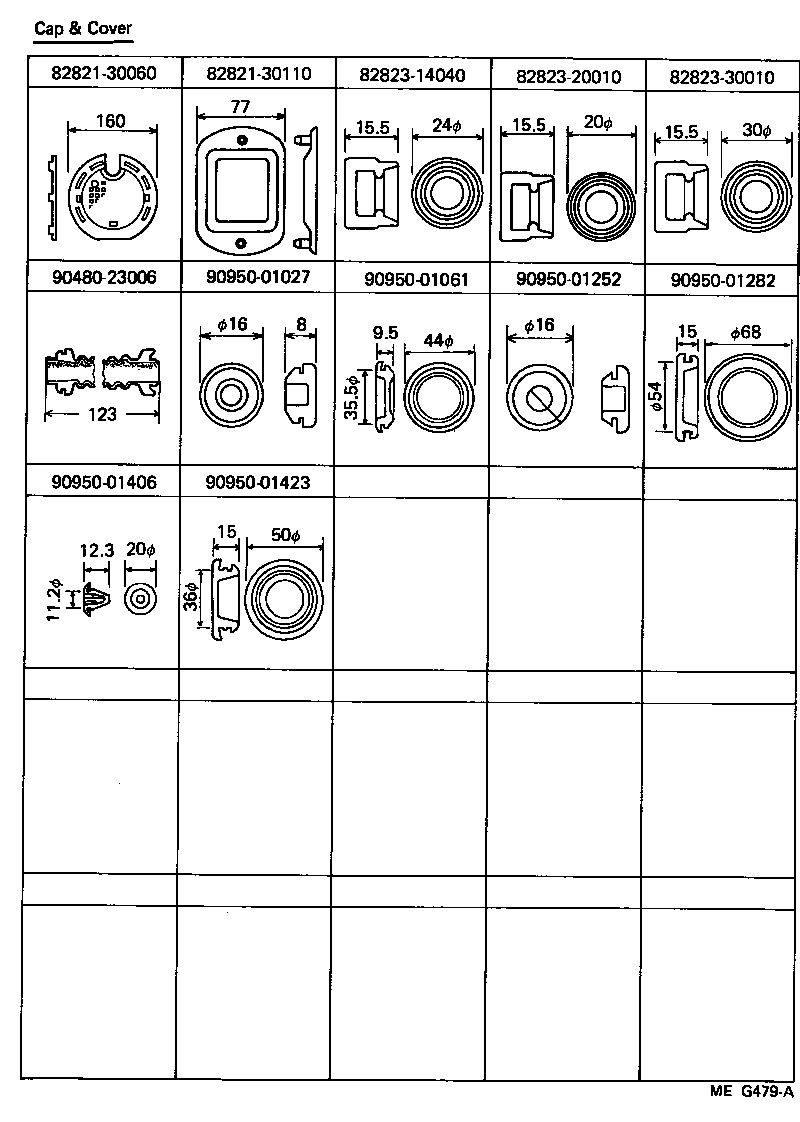

ILLUST NO. 6 OF 9(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12250
82711-14110
82711-30420
82711-30680
82711-30690
82711-30720
82711-30740
90461-06086
90461-06303
90461-06804
90461-08183
90461-08186
90461-08200
90461-08218
90461-08483
90463-04573
90463-10031
90463-12014
90464-00073
90464-00102
90464-00137
90464-00161
90464-00162
90464-00248
90467-08043

ILLUST NO. 8 OF 9(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-22350
82817-23010
82817-30470
82817-30520
82817-30590
82817-30640
82817-30650
82817-30660
82817-91601
82817-91602
90189-04007

ILLUST NO. 3 OF 9(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-16010	GS12#,LS12#,MS12#,YS120	08/1983 - 08/1987	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-14010	GS12#,LS12#,MS12#,YS120	08/1983 - 08/1987	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-30010	GS12#,LS12#,MS12#,YS120	08/1983 - 08/1987	1
82984 - WIRE, HORN REPAIR
82984-22010	GS12#,LS12#,MS12#,YS120	08/1983 - 08/1987	1
82987 - WIRE, FOG LAMP REPAIR
82982-12020	MS123,125..SED;GS12#,LS12#,MS120,YS120	08/1983 - 09/1985	1
82987-30010	GS12#,LS12#,MS12#,YS120	09/1985 - 08/1987	1
82987 - WIRE, FOG LAMP REPAIR
82982-12020	MS123,125..SED;GS12#,LS12#,MS120,YS120	08/1983 - 09/1985	1
82987-30010	GS12#,LS12#,MS12#,YS120	09/1985 - 08/1987	1
Common parts
82981-16010
82982-12020
82983-14010
82983-30010
82984-22010
82987-30010

ILLUST NO. 4 OF 9(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-30010	GS12#,LS12#,MS12#,YS120	08/1983 - 08/1987	1
Common parts
82991-30010

ILLUST NO. 7 OF 9(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
69749-12010
82711-12120
82711-1A210
82711-22710
82711-24010
82711-24240
82711-2A140
82711-2A190
82711-30020
82711-30260
82711-30370
82711-30390
82711-30610
82711-30670
82711-30830
82711-3A200
82711-95015
90467-08043

ILLUST NO. 9 OF 9(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82821-30060
82821-30110
82823-14040
82823-20010
82823-30010
90480-23006
90950-01027
90950-01061
90950-01252
90950-01282
90950-01406
90950-01423

GS121-STPQF (1983)

ILLUST NO. 1 OF 9(8308- )

ILLUST NO. 2 OF 9(8308- )HT,SED

ILLUST NO. 5 OF 9(8308- )

ILLUST NO. 6 OF 9(8308- )

ILLUST NO. 8 OF 9(8308- )

ILLUST NO. 3 OF 9(8308- )

ILLUST NO. 4 OF 9(8308- )

ILLUST NO. 7 OF 9(8509- )

ILLUST NO. 9 OF 9(8509- )

Part Price Details
