GS121-STPQF (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
1GGEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )HT

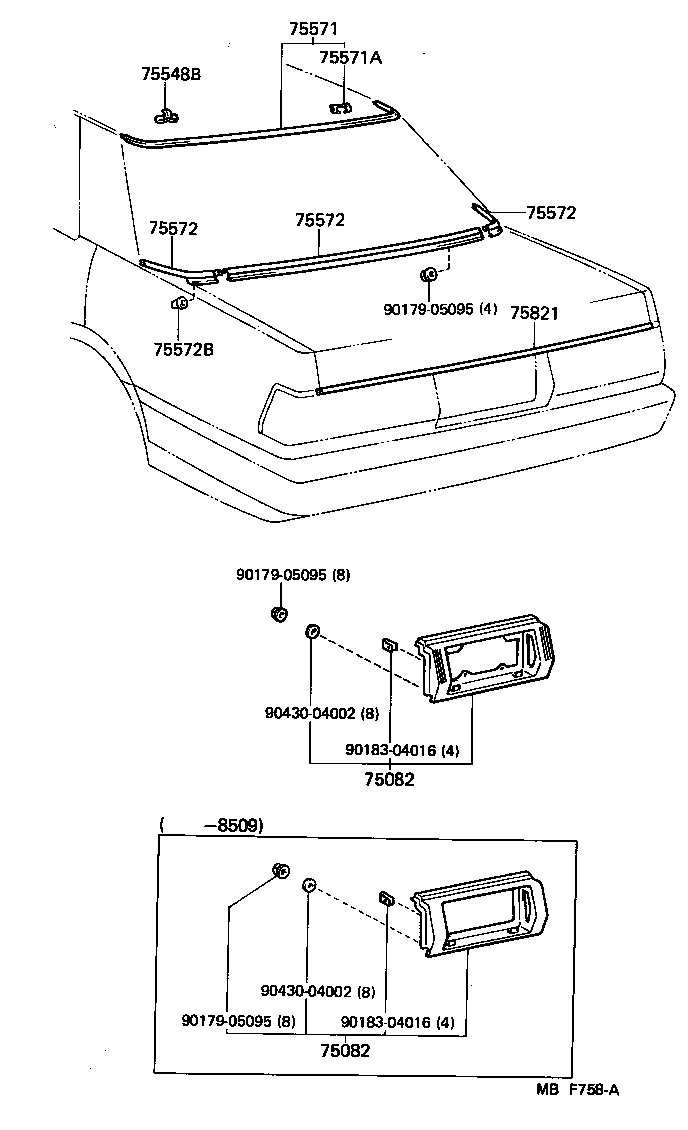

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER | ||||
| 75082-39145 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 75082-30111 |
GS120,121,LS120,MS125..HT |
1 | ||
| 75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER | ||||
| 75082-39145 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 75082-30111 |
GS120,121,LS120,MS125..HT |
1 | ||
| 75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING | ||||
| 75548-22060 |
GS120,121,LS120,MS12#..HT |
5 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-30190 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 75571A - CLIP(FOR BACK WINDOW MOULDING SET) | ||||
| 75546-30030 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75508-30010 |
GS120,121,LS120,MS12#..HT LH |
1 | ||
| 75507-30150 |
GS120,121,LS120,MS12#..HT RH |
1 | ||
| 75081-30010 |
GS120,121,LS120,MS12#..HT CTR |
1 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75508-30010 |
GS120,121,LS120,MS12#..HT LH |
1 | ||
| 75507-30150 |
GS120,121,LS120,MS12#..HT RH |
1 | ||
| 75081-30010 |
GS120,121,LS120,MS12#..HT CTR |
1 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75508-30010 |
GS120,121,LS120,MS12#..HT LH |
1 | ||
| 75507-30150 |
GS120,121,LS120,MS12#..HT RH |
1 | ||
| 75081-30010 |
GS120,121,LS120,MS12#..HT CTR |
1 | ||
| 75572B - CLIP(FOR BACK WINDOW MOULDING SET) | ||||
| 67772-20021 |
GS120,121,LS120,MS12#,YS120..HT,SED |
2 | ||
| 75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK | ||||
| 75813-30070 |
GS120,121,LS120,MS12#..HT |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90183-04016 | ||||
| 90430-04002 | ||||
