GS121-STPQF (1983)
Toyota Crown

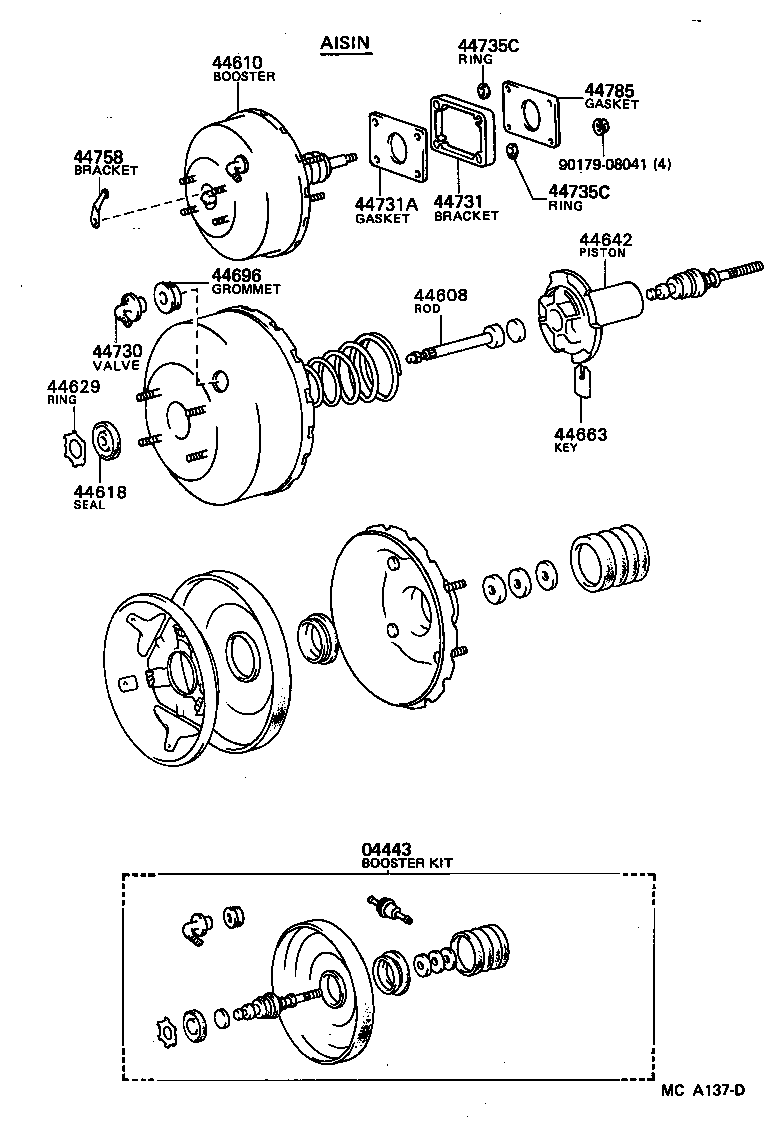

ILLUST NO. 1 OF 2(8308-8509)GS12#,MS120,YS120..EFI,LPG,TWC ; (8509- )GS120,126,MS120,YS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30330 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 04443-30460 |
GS121,MS125 AISIN |
1 | ||
| 04443-30500 |
GS121,MS125 JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
GS121,MS125 AISIN |
1 | ||
| 44606-12520 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44606-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44606-12520 |
GS121,MS125 AISIN |
1 | ||
| 44608-20810 |
GS121,MS125 JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30400 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44610-30560 |
GS121,MS125 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
GS121,MS125 |
1 | ||
| 44621-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC AISIN |
1 | ||
| 44628-60010 |
GS121,MS125 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
GS121,MS125 |
1 | ||
| 44642-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44635-20800 |
GS121,MS125 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 90480-24517 |
GS121,YS120..ROY,SSL,STD;GS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 90480-24439 |
GS12#,MS12#,YS120 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
GS121,MS125 AISIN |
1 | ||
| 44730-14060 |
GS121,MS125 JKC |
1 | ||
| 44730-20030 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30070 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44758-30100 |
GS121,MS125 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||

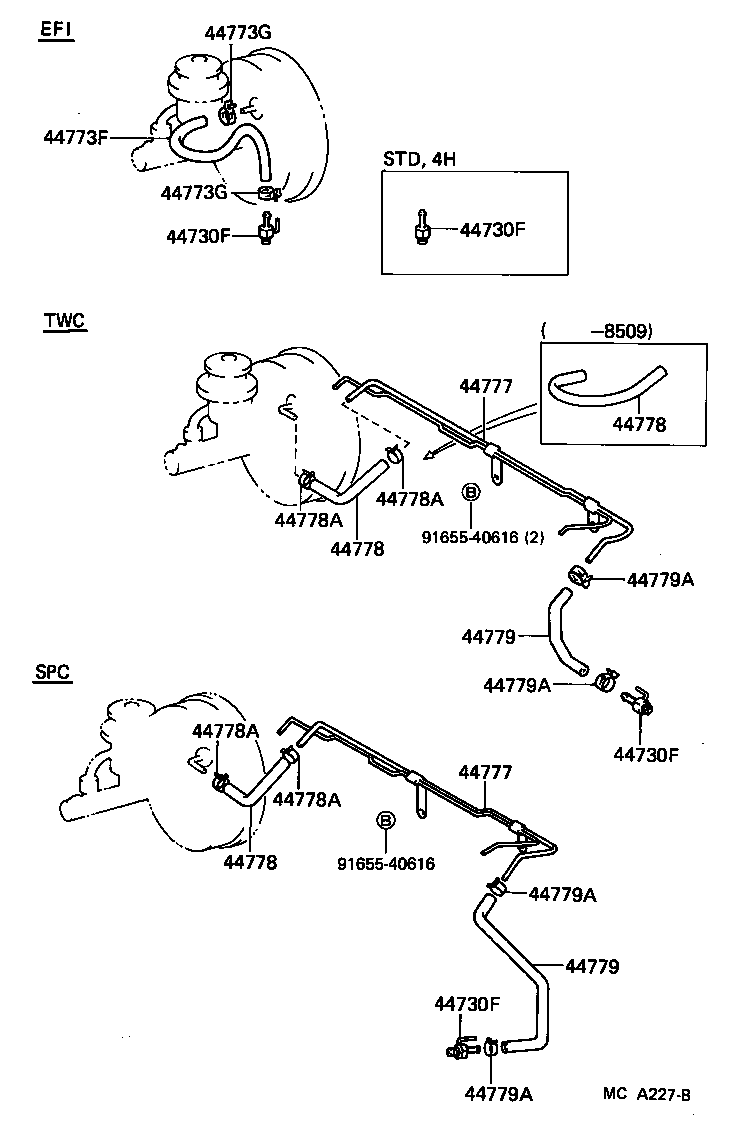

ILLUST NO. 2 OF 2(8308- )GS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-30070 |
GS121,MS123,125 W/AUTO DRIVE |
1 | ||
| 44777-30080 |
GS121,MS123,125 |
1 | ||
| 44777-30080 |
GS121 |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-30070 |
GS121,MS123,125 W/AUTO DRIVE |
1 | ||
| 44777-30080 |
GS121,MS123,125 |
1 | ||
| 44777-30080 |
GS121 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-30070 |
GS121 |
1 | ||
| 44778-30050 |
GS121,MS125 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-30070 |
GS121 |
1 | ||
| 44778-30050 |
GS121,MS125 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-30070 |
GS121 |
1 | ||
| 44778-30050 |
GS121,MS125 |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-30070 |
GS121..TWC |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-30070 |
GS121..TWC |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
GS121,MS12#..LPG,SPC,TWC |
2 | ||
| Common parts | ||||
| 91655-40616 | ||||

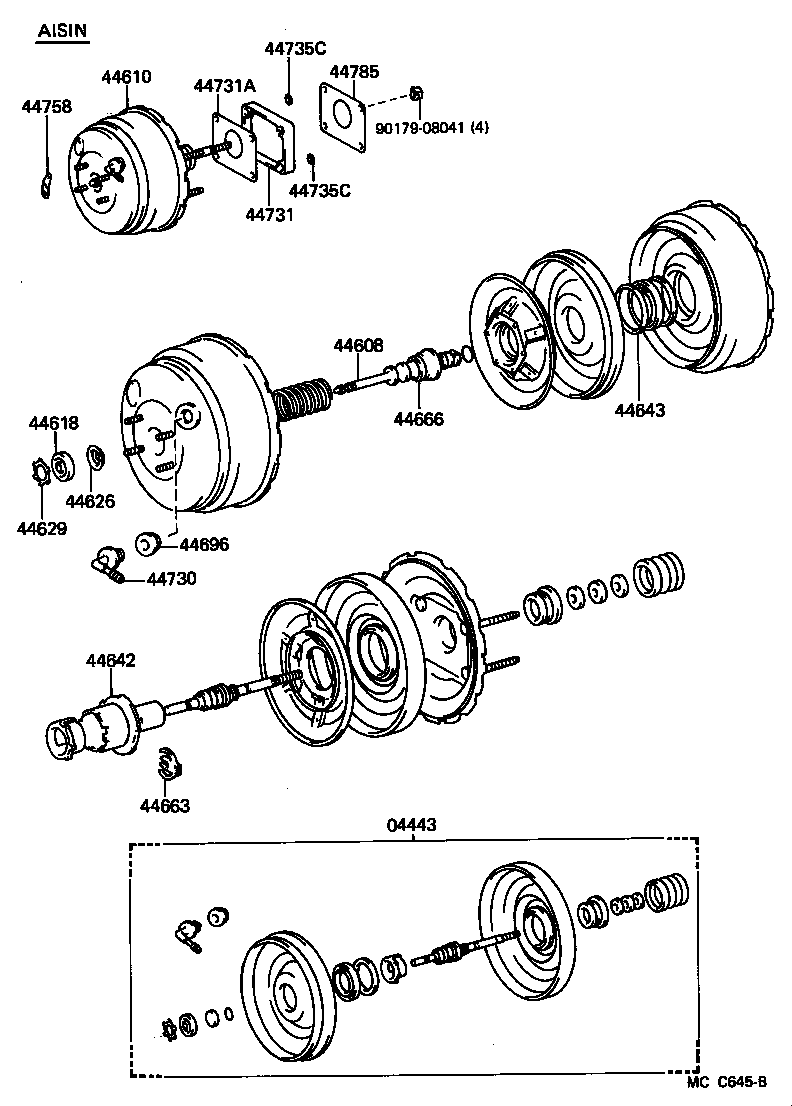

ILLUST NO. 1 OF 2(8509- )GS121,MS125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30330 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 04443-30460 |
GS121,MS125 AISIN |
1 | ||
| 04443-30500 |
GS121,MS125 JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
GS121,MS125 AISIN |
1 | ||
| 44606-12520 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44606-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44606-12520 |
GS121,MS125 AISIN |
1 | ||
| 44608-20810 |
GS121,MS125 JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30400 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44610-30560 |
GS121,MS125 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
GS121,MS125 |
1 | ||
| 44621-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
GS121,MS125 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC AISIN |
1 | ||
| 44628-60010 |
GS121,MS125 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
GS121,MS125 |
1 | ||
| 44642-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
GS121,MS125 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44635-20800 |
GS121,MS125 |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-30560 |
GS121,MS125 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 90480-24517 |
GS121,YS120..ROY,SSL,STD;GS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 90480-24439 |
GS12#,MS12#,YS120 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
GS121,MS125 AISIN |
1 | ||
| 44730-14060 |
GS121,MS125 JKC |
1 | ||
| 44730-20030 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30070 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44758-30100 |
GS121,MS125 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||

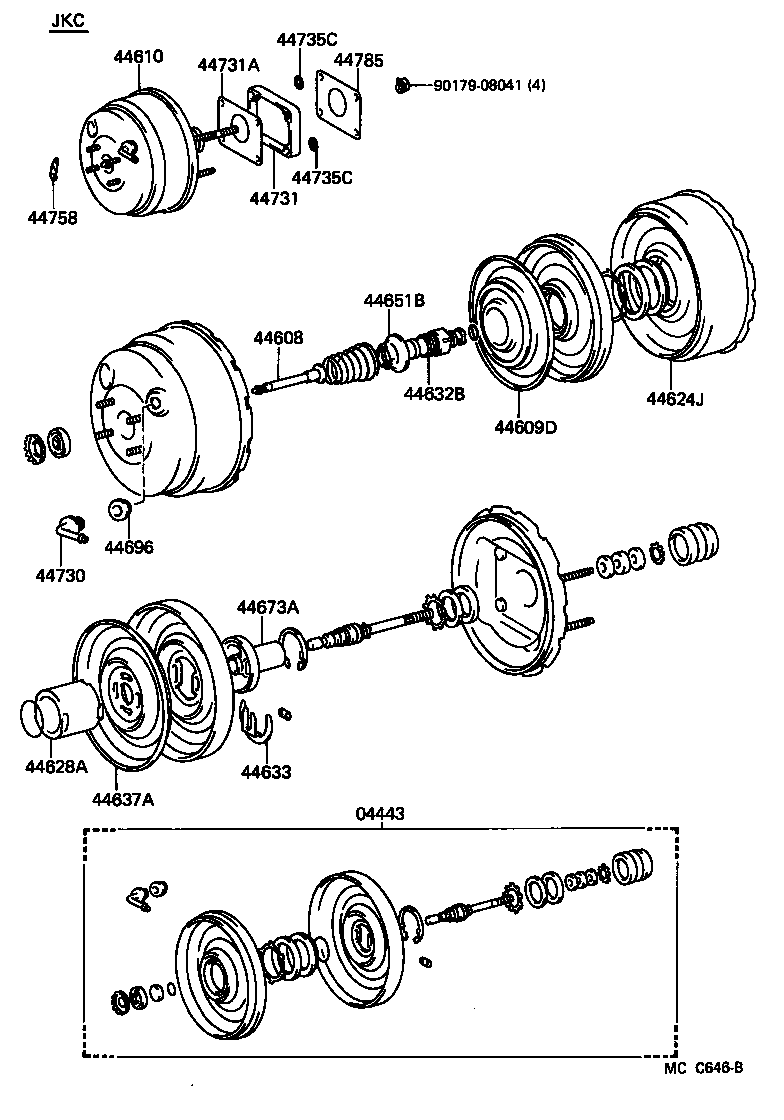

ILLUST NO. 1 OF 2(8509- )GS121,MS125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30330 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 04443-30460 |
GS121,MS125 AISIN |
1 | ||
| 04443-30500 |
GS121,MS125 JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
GS121,MS125 AISIN |
1 | ||
| 44606-12520 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44606-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44606-12520 |
GS121,MS125 AISIN |
1 | ||
| 44608-20810 |
GS121,MS125 JKC |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-28300 |
GS121,MS125 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30400 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44610-30560 |
GS121,MS125 |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-28300 |
GS121,MS125 |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
GS121,MS125 |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-30550 |
GS121,MS125 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20811 |
GS121,MS125 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-28300 |
GS121,MS125 |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
GS121,MS125 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
GS121,MS125 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 90480-24517 |
GS121,YS120..ROY,SSL,STD;GS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 90480-24439 |
GS12#,MS12#,YS120 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
GS121,MS125 AISIN |
1 | ||
| 44730-14060 |
GS121,MS125 JKC |
1 | ||
| 44730-20030 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30070 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44758-30100 |
GS121,MS125 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
