GS121-STPQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

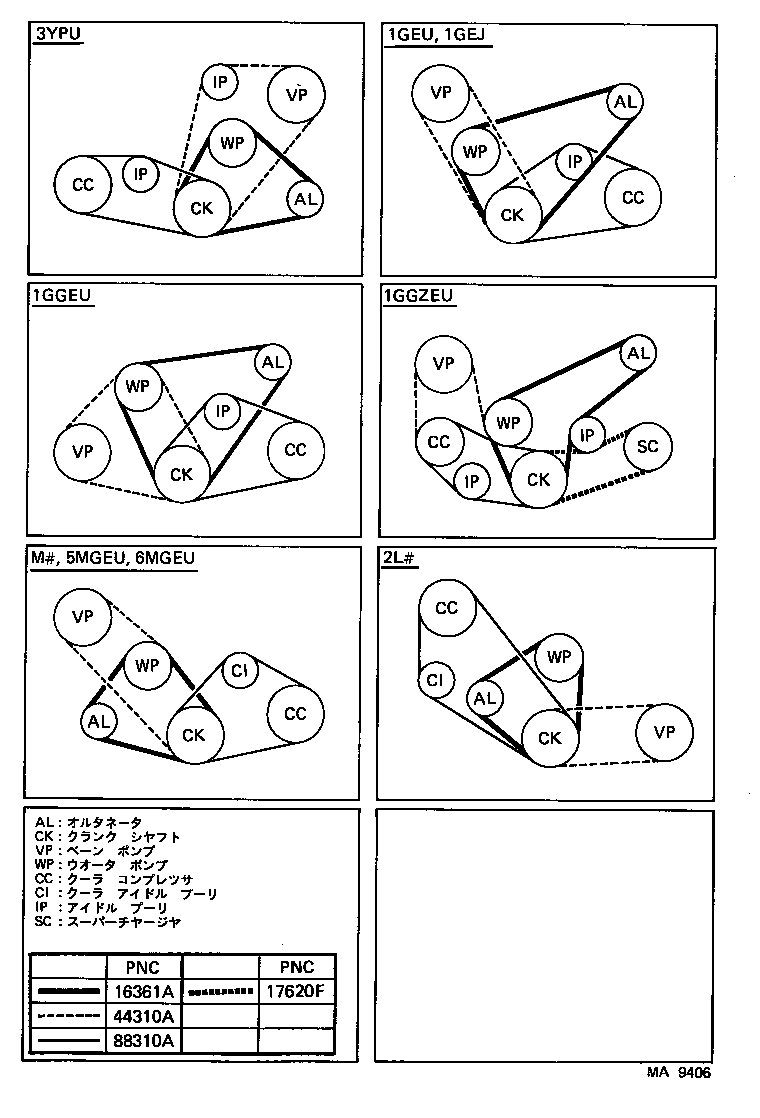

Click highlighted areas on diagram

diagram 16361A 17620F 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-51160

1GGEU..GS121

 1
44310A - BELT, V(FOR VANE PUMP)
99363-00960

GS121..TWC

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00860

GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)

長さ=860

 1
99364-50880

GS121..ROY..TWC

 1
99364-00870

GS121..ROY

 1
