GS121-STMQF (1983)
Toyota Crown
ILLUST NO. 1 OF 3(8308- )GS120..HT..4HC ; (8308- )LS120..SED..4FC,5F..DLX,SAL,SDX ; (8308-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A110 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83138-3A150 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A330 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83247-30610 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83247-3A030 |
GS120,121..HT..(4FC,5F)..(EFI,TWC) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A300 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A301 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A302 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30050 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83121-30050 |
GS121..HT..(4FC,5F)..ROY W/*DS |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-30710 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30390 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83132-30530 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83132-30750 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83132-30370 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30110 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83243-30230 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30290 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83244-30190 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(8308- )LS120..WG ; (8308- )GS121..HT..4HC; (8308- )MS123,125..4HC ; (830
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A110 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83138-3A110 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83138-3A150 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83138-3A150 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A330 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83247-3A330 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83247-30610 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83247-30610 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83247-3A030 |
GS120,121..HT..(4FC,5F)..(EFI,TWC) |
1 | ||
| 83247-3A030 |
GS120,121..HT..(4FC,5F)..(EFI,TWC) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A300 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A300 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A301 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A301 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A302 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83110-3A302 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30050 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83121-30050 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83121-30050 |
GS121..HT..(4FC,5F)..ROY W/*DS |
1 | ||
| 83121-30050 |
GS121..HT..(4FC,5F)..ROY W/*DS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30390 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83132-30390 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83132-30530 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83132-30530 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83132-30750 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83132-30750 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83132-30370 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83132-30370 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-30350 |
GS121..HT..(4FC,5F) |
1 | ||
| 83242-30350 |
GS121..HT..(4FC,5F) |
1 | ||
| 83242-30830 |
GS121..HT..TWC |
1 | ||
| 83242-30830 |
GS121..HT..TWC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30110 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83243-30110 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83243-30230 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83243-30230 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30290 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83244-30290 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83244-30190 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83244-30190 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 93567-55016 | ||||

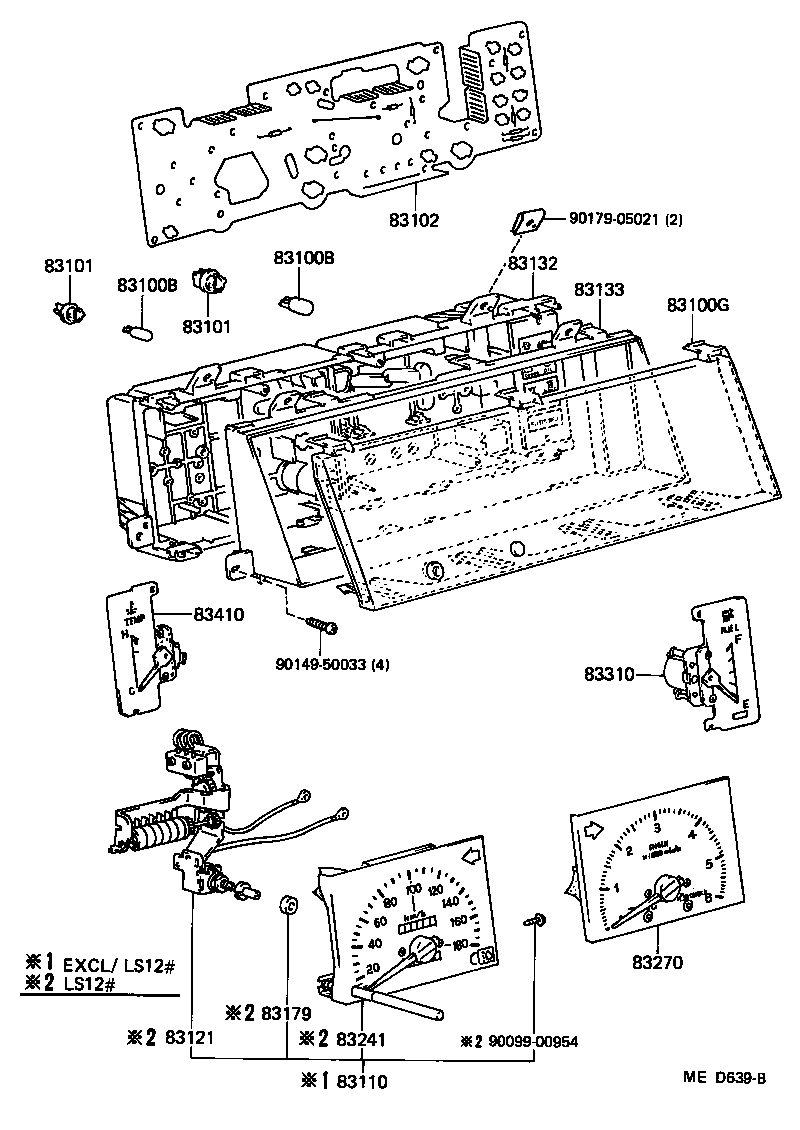

ILLUST NO. 1 OF 3(8308- )HT..4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A110 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83138-3A150 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A330 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83247-30610 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83247-3A030 |
GS120,121..HT..(4FC,5F)..(EFI,TWC) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A300 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A301 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83110-3A302 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30050 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83121-30050 |
GS121..HT..(4FC,5F)..ROY W/*DS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30390 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83132-30530 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83132-30750 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83132-30370 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30170 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83133-30270 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83133-30330 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-30350 |
GS121..HT..(4FC,5F) |
1 | ||
| 83242-30830 |
GS121..HT..TWC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30110 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83243-30230 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30290 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83244-30190 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 90149-50033 | ||||
| 90179-05021 | ||||

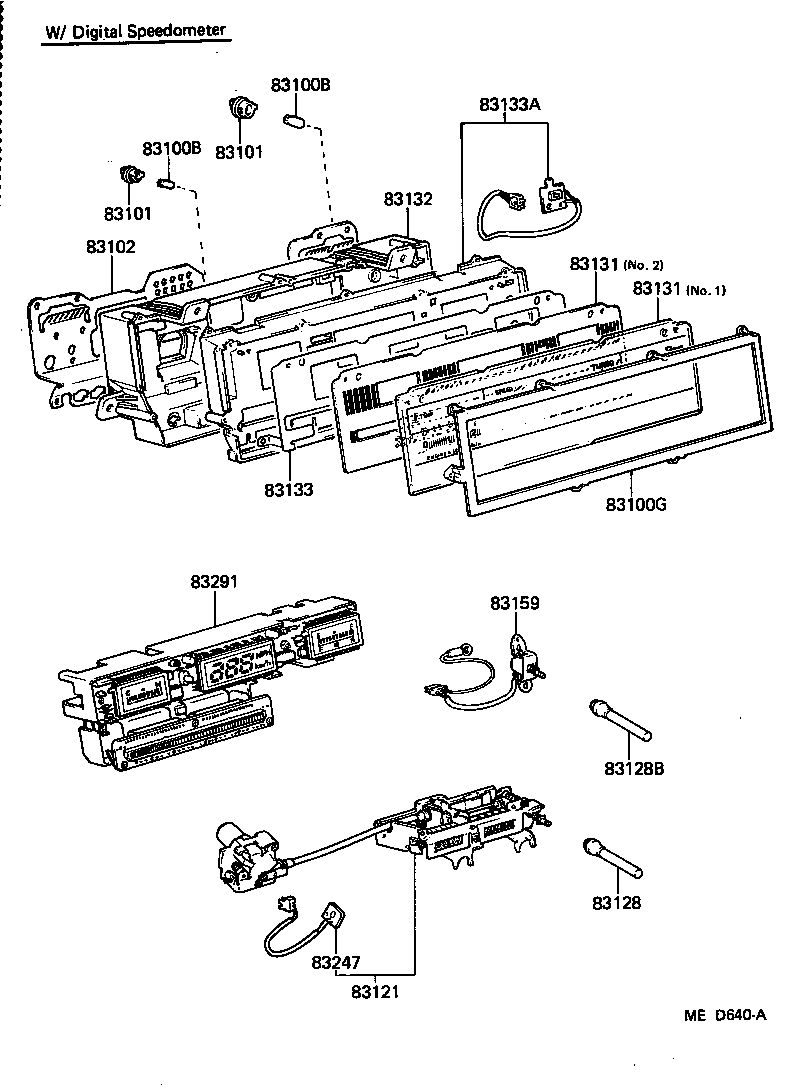

ILLUST NO. 1 OF 3(8308- )GS121,MS12#..HT..4FC,5F..ROY,SAL ; (8405-8509)GS121..SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 83109-24040 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
2 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A110 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83138-3A150 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-87001 |
GS120,121,LS120,MS120..HT..(4FC,5F) 12V 1.4W,GREEN |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A330 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83247-30610 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83247-3A030 |
GS120,121..HT..(4FC,5F)..(EFI,TWC) |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30050 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83121-30050 |
GS121..HT..(4FC,5F)..ROY W/*DS |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-30710 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83128B - KNOB, METER SWITCH | ||||
| 83128-14530 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-30450 |
GS121..HT..(4FC,5F)..ROY NO.1 |
1 | ||
| 83131-30451 |
GS121..HT..(4FC,5F)..ROY NO.1 |
1 | ||
| 83131-30511 |
GS121,MS125..HT..(4FC,5F)..ROY NO.2,W/*AL |
1 | ||
| 83131-30550 |
GS121,MS123..HT..(4FC,5F)..ROY NO.2 |
1 | ||
| 83131-30551 |
GS121,MS125..HT..(4FC,5F)..ROY NO.2 |
1 | ||
| 83131-30510 |
GS121,MS123..HT..(4FC,5F)..ROY NO.2,W/*AL |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-30451 |
GS121..HT..(4FC,5F)..ROY NO.1 |
1 | ||
| 83131-30450 |
GS121..HT..(4FC,5F)..ROY NO.1 |
1 | ||
| 83131-30511 |
GS121,MS125..HT..(4FC,5F)..ROY NO.2,W/*AL |
1 | ||
| 83131-30550 |
GS121,MS123..HT..(4FC,5F)..ROY NO.2 |
1 | ||
| 83131-30551 |
GS121,MS125..HT..(4FC,5F)..ROY NO.2 |
1 | ||
| 83131-30510 |
GS121,MS123..HT..(4FC,5F)..ROY NO.2,W/*AL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30390 |
GS120,121,MS120..HT..(4FC,5F) |
1 | ||
| 83132-30530 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83132-30750 |
GS120,121..HT..(4FC,5F) |
1 | ||
| 83132-30370 |
GS121..HT..(4FC,5F)..ROY W/*AL,W/O*DS |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30170 |
GS120,121,LS120,MS120..HT..(4FC,5F) |
1 | ||
| 83133-30270 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) W/*DS |
1 | ||
| 83133-30330 |
GS120,121,LS120..HT..(4FC,5F) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-30230 |
GS121,MS123..HT..(4FC,5F)..ROY |
1 | ||
| 83133-30250 |
GS121,MS123..HT..(4FC,5F)..ROY W/*AL |
1 | ||
| 83133-30251 |
GS121,MS125..HT..(4FC,5F)..ROY W/*AL |
1 | ||
| 83133-30231 |
GS121,MS125..HT..(4FC,5F) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-30030 |
GS121,MS12#..HT..(4FC,5F)..(ROY,SAL) |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-30020 |
GS121..HT..(4FC,5F)..ROY |
1 | ||
| 83291-30022 |
GS121..HT..(4FC,5F) |
1 | ||
| 83291-30021 |
GS121..HT..(4FC,5F) |
1 | ||
ILLUST NO. 2 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-3040002 |
GS120,121,LS120,MS12#..HT..(4FC,5F) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3040004 |
GS120,121,LS120,MS12#..HT..(4FC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3040005 |
GS120,121,LS120,MS12#..HT..(4FC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 83910-3043004 |
GS120,121,LS120,MS125..HT..(ROY,SAL) BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3042004 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3042006 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3043006 |
MS125;GS120,121,LS120..HT..(ROY,SAL) BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3040002 |
GS120,121,LS120,MS12#..HT..(4FC,5F) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3040004 |
GS120,121,LS120,MS12#..HT..(4FC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3040005 |
GS120,121,LS120,MS12#..HT..(4FC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 83910-3043004 |
GS120,121,LS120,MS125..HT..(ROY,SAL) BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3042004 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3042006 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3043006 |
MS125;GS120,121,LS120..HT..(ROY,SAL) BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3040002 |
GS120,121,LS120,MS12#..HT..(4FC,5F) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3040004 |
GS120,121,LS120,MS12#..HT..(4FC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3040005 |
GS120,121,LS120,MS12#..HT..(4FC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 83910-3043004 |
GS120,121,LS120,MS125..HT..(ROY,SAL) BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3042004 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3042006 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3043006 |
MS125;GS120,121,LS120..HT..(ROY,SAL) BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83911 - COVER, CLOCK | ||||
| 83911-30010 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-3002006 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BROWN,BROWN,TRIM4# |
1 | ||
| 83915-3002004 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 83791-30020 | ||||
| 83791-30050 | ||||
| 83791-30070 | ||||
| 83791-30100 | ||||
| 83791-30110 | ||||
| 90167-50003 | ||||
| 93546-24512 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
