GS121-STMQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS121,MS123,125

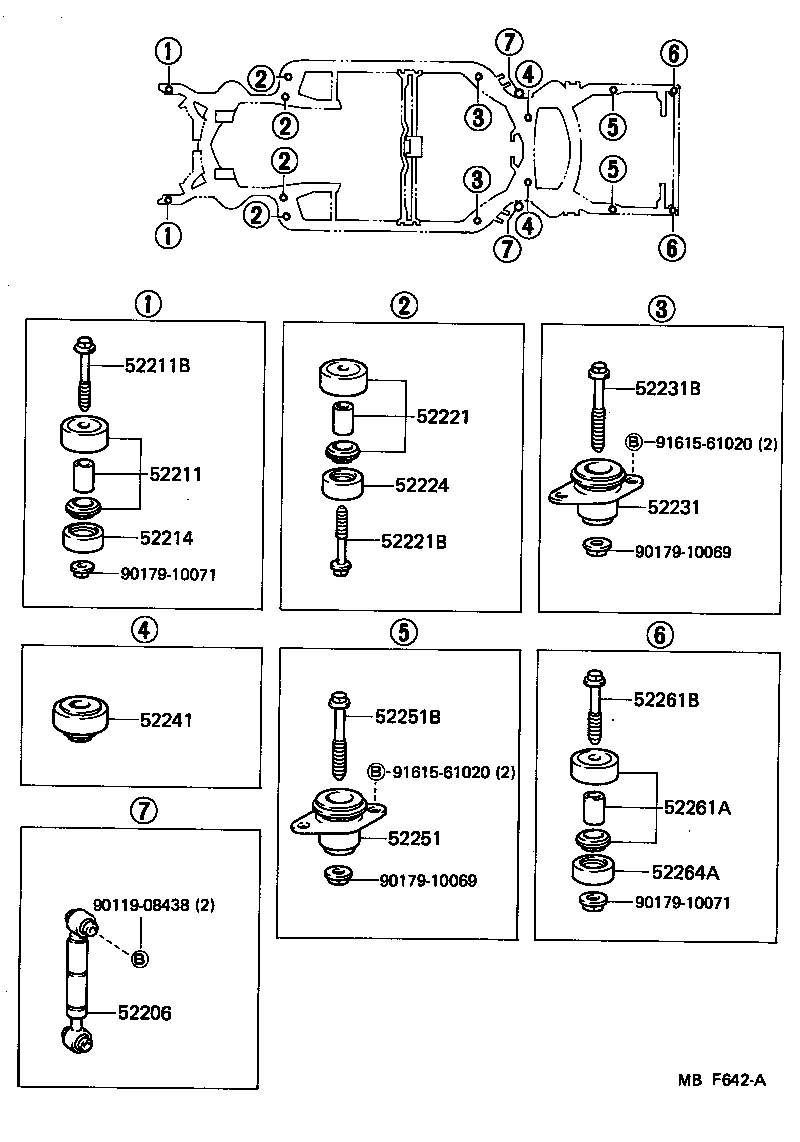

Click highlighted areas on diagram

diagram 52206 52211 52211B 52214 52221 52221B 52224 52231 52231B 52241 52251 52251B 52261A 52261B 52264A 9011908438 9017910069 9017910069 9017910071 9017910071 9161561020 9161561020
Part # Description Qty Price
52206 - ABSORBER SUB-ASSY, BODY MOUNTING
52206-30010

GS121,MS123,125

 2
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-30907

GS12#,LS12#,MS12#,YS120

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-10018

GS12#,LS12#,MS12#,YS120

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52023-30030

GS12#,LS12#,MS12#,YS120

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52201-30908

GS12#,LS12#,MS12#,YS120

 4
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10203

GS12#,LS12#,MS12#,YS120

 4
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52023-30030

GS12#,LS12#,MS12#,YS120

 4
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-30050

GS120,121,LS120,MS12#,YS120

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90109-10068

GS120,121,LS120,MS12#,YS120..HT,SED

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52231-30030

GS121,MS123

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52204-30030

GS121,MS123,125

 2
52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION)
90109-10068

GS121,MS123,125

 2
52261A - CUSHION, BODY MOUNT, NO.6 UPPER
52201-30907

GS121,MS123,125

 2
52261B - BOLT(FOR BODY MOUNT NO.6 CUSHION)
90109-10067

GS121,MS123,125

 2
52264A - CUSHION, BODY MOUNT, NO.6 LOWER
52023-30030

GS121,MS123,125

 2
Common parts
90119-08438
90179-10069
90179-10071
91615-61020
