GS121-STMQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1GGEU

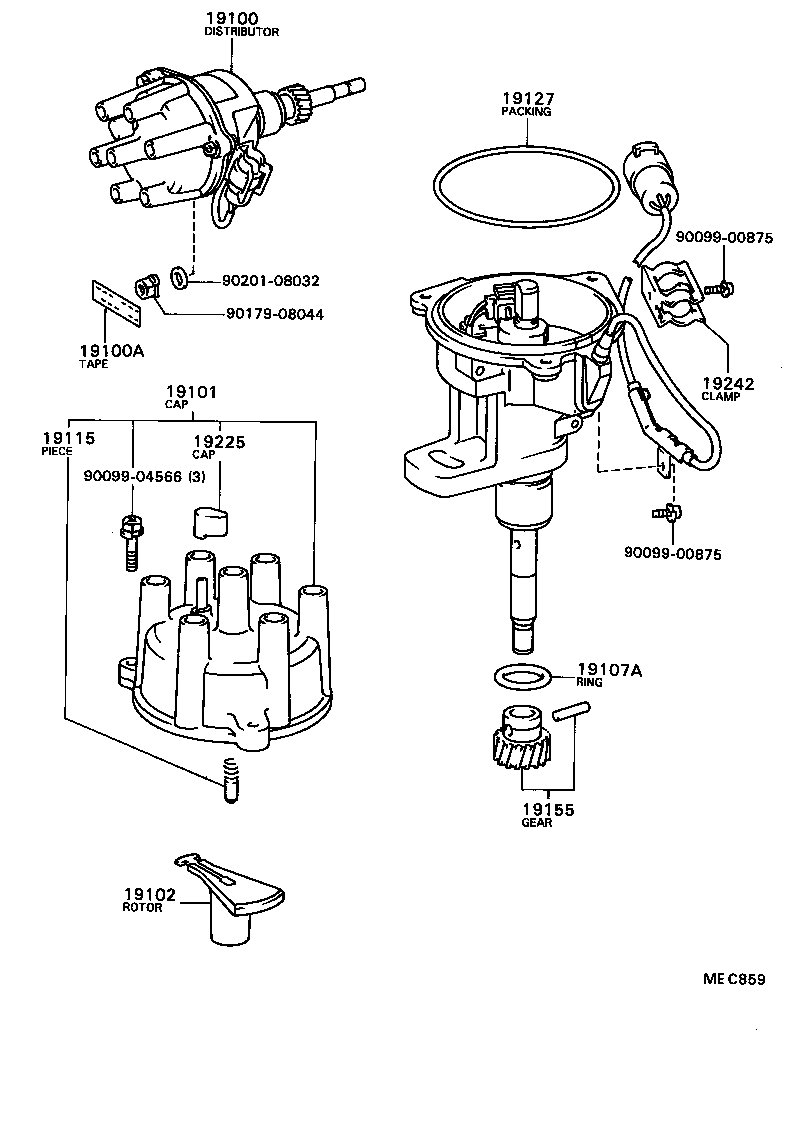

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19127 19155 19225 19242 9009900875 9009900875 9009904566 9017908044 9020108032
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-88301

1GGEU..GS121

 1
19100A - TAPE, SEALING
90919-24004

1GEU,1GG#,1GEJ..GS12#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-43060

1G#..GS12#

 1
19101-70011

1GEU,1GG#,1GEJ..GS12#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-43110

1GEU,1GGEU..GS120,121

 1
19102-43120

1GEU,1GGEU..GS120,121

 1
19102-43110

1GEU,1GGEU..GS120,121

 1
19102-43120

1GGEU..GS121

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14018

1GEU,1GG#,1GEJ..GS12#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1G#..GS12#

 2
19115-50010

1GEU,1GG#,1GEJ..GS12#

 2
19127 - PACKING, DUST PROOF
19127-52020

1GEU,1GG#,1GEJ..GS12#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-88300

1GGEU..GS121

 1
19225 - CAP, RUBBER
19225-41140

1GEU,1GG#,1GEJ..GS12#

 1
19242 - CLAMP, CORD
19242-88300

1GGEU..GS121

 1
Common parts
90099-00875
90099-04566
90179-08044
90201-08032
