GS121-STMQF (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
1GGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )1GGEU

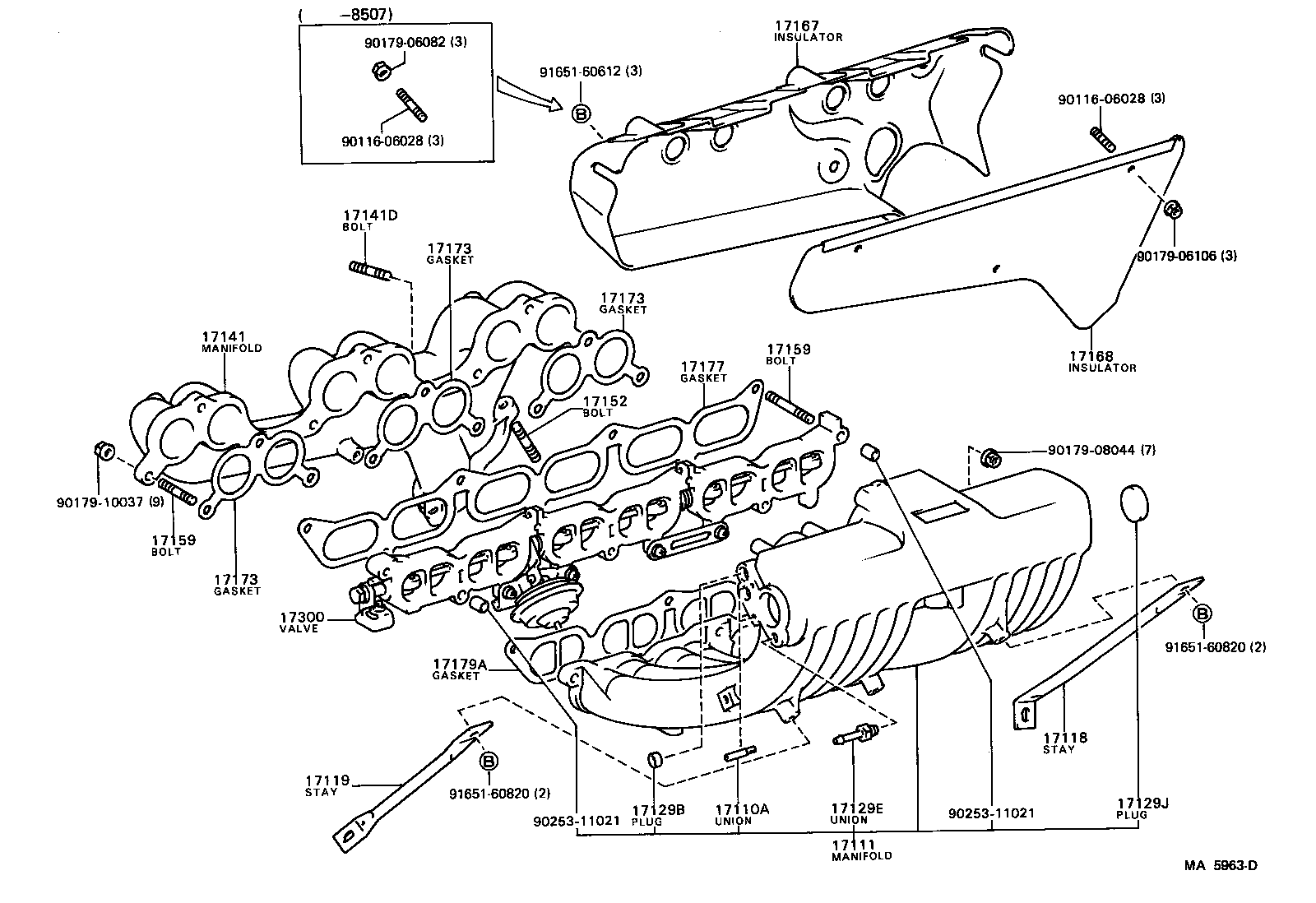

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110A - UNION, VACUUM HOSE | ||||
| 90406-04002 |
1GGEU..GS121 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-88301 |
1GGEU..GS121 |
1 | ||
| 17120-88302 |
1GGEU..GS121 |
1 | ||
| 17120-88300 |
1GGEU..GS121 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-88301 |
1GGEU..GS121 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-88301 |
1GG#..GS121 |
1 | ||
| 17129B - PLUG | ||||
| 96411-11600 |
1GG#..GS121 |
4 | ||
| 17129E - UNION, NO.3 | ||||
| 90404-51026 |
1GGEU..GS121 |
1 | ||
| 90404-51026 |
1GG#..GS121 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-43000 |
1GGEU..GS121 外径=30 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-88300 |
1GGEU..GS121 |
1 | ||
| 17141-88301 |
1GGEU..GS121 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
1G#..GS12# |
2 | ||
| 90116-08128 |
1GGEU..GS121 |
2 | ||
| 90116-08187 |
1GGEU..GS121 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
1GEU,1GG#,1GEJ..GS12# L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92132-60850 |
1GGEU..GS121 INTAKE |
7 | ||
| 90116-08186 |
1GGEU..GS121 INTAKE |
7 | ||
| 90116-10063 |
1GG#..GS121 EXHAUST |
9 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92132-60850 |
1GGEU..GS121 INTAKE |
7 | ||
| 90116-08186 |
1GGEU..GS121 INTAKE |
7 | ||
| 90116-10063 |
1GG#..GS121 EXHAUST |
9 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-88300 |
1GGEU..GS121 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-88300 |
1GG#..GS121 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88300 |
1GGEU..GS121 |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88300 |
1GGEU..GS121 |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88300 |
1GGEU..GS121 |
3 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-88300 |
1GGEU..GS121 |
1 | ||
| 17177-88301 |
1GG#..GS121 |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-88300 |
1GGEU..GS121 |
1 | ||
| 17179-88301 |
1GGEU..GS121 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-88300 |
1GGEU..GS121 |
1 | ||
| Common parts | ||||
| 90116-06028 | ||||
| 90179-06082 | ||||
| 90179-06106 | ||||
| 90179-08044 | ||||
| 90179-10037 | ||||
| 90253-11021 | ||||
| 91651-60612 | ||||
| 91651-60820 | ||||
