GS121-SESQR (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 1GGZEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1GGZEU

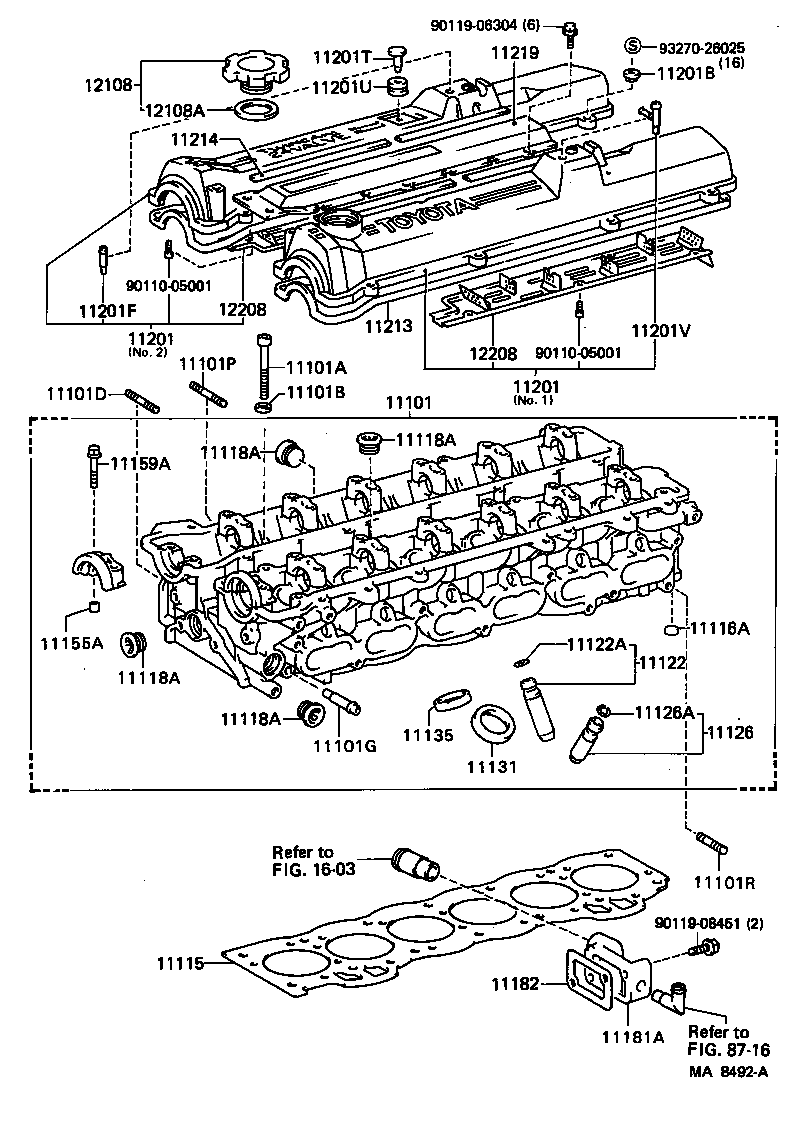

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101D 11101G 11101P 11101R 11115 11116A 11118A 11118A 11118A 11118A 11122 11122A 11126 11126A 11131 11135 11155A 11159A 11181A 11182 11201 11201 11201B 11201F 11201T 11201U 11201V 11213 11214 11219 12108 12108A 12208 12208 1603 8716 9011005001 9011005001 9011906304 9011908451 9327026025
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-70022

1GGZEU..GS121

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90110-10003

1GG#..GS121

 14
11101D - BOLT, STUD(FOR WATER OUTLET)
90116-10130

1GGZEU..GS121

 2
92122-61080

1GGZEU..GS121

 2
11101G - UNION(FOR CYLINDER HEAD)
90072-40625

1GG#..GS121

 1
11101P - BOLT, STUD(FOR DISTRIBUTOR)
90116-08115

1GG#..GS121

 1
11115 - GASKET, CYLINDER HEAD
11115-70030

1GGZEU..GS121

 1
11116A - PLUG, TIGHT, NO.1
96411-41800

1GG#..GS121

 4
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GS121

 9
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GS121

 9
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GS121

 9
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GS121

 9
11122 - BUSH, INTAKE VALVE GUIDE
11123-16020

1GGZEU..GS121

O/S 0.05,O/S 0.05

 12
11122-16020

1GGZEU..GS121

STD,STD

 12
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10004

1GG#..GS121

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-16020

1GGZEU..GS121

STD,STD

 12
11123-16020

1GGZEU..GS121

O/S 0.05,O/S 0.05

 12
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10004

1GG#..GS121

 12
11131 - SEAT, INTAKE VALVE
11132-70010

1GG#..GS121

O/S 0.03,O/S 0.03

 12
11131-70010

1GG#..GS121

STD,STD

 12
11181A - COVER, CYLINDER HEAD, REAR
11181-88300

1GG#..GS121

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-88300

1GG#..GS121

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-70010

1GGZEU..GS121

NO.2

 1
11201-70030

1GGZEU..GS121

NO.1

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-70010

1GGZEU..GS121

NO.2

 1
11201-70030

1GGZEU..GS121

NO.1

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001

1GG#..GS121

 16
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90405-10009

1GGZEU..GS121

 1
11201T - PIN(FOR CYLINDER HEAD COVER)
90249-08089

1GG#..GS121

 1
11201U - BUSH(FOR CYLINDER HEAD COVER)
90385-07001

1GG#..GS121

 1
11201V - WAY, 3
90413-10190

1GGZEU..GS121

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-70010

1GGZEU..GS121

 4
11219 - COVER, CYLINDER HEAD, NO.3
11219-70010

1GGZEU..GS121

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

1GEU,1GG#,1GEJ..GS12#

 1
12180-70010

1GEU,1GG#,1GEJ..GS12#

 1
12180-70010

1GEU,1GGZEU,1GEJ..GS12#

 1
12180-13030

1GEU,1GGZEU,1GEJ..GS12#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1GEU,1GG#,1GEJ..GS12#

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-70020

1GGZEU..GS121

 2
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-70020

1GGZEU..GS121

 2
Common parts
90110-05001
90119-06304
90119-08451
93270-26025
Linked diagrams
1603
8716
