GS121-SESQF (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 1GGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

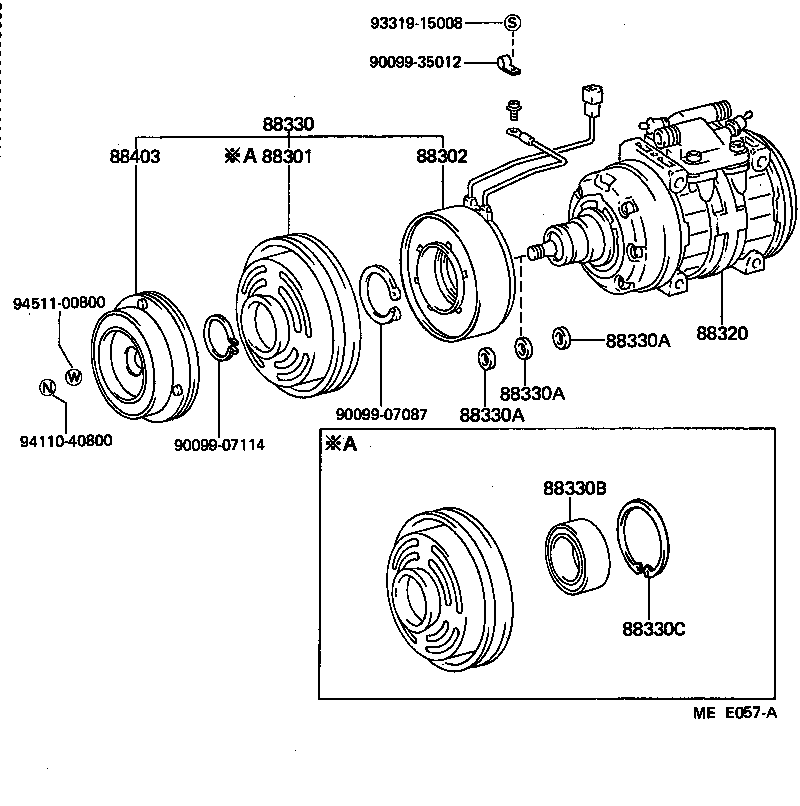

ILLUST NO. 1 OF 2(8308- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330A 88330A 88330A 88330B 88330C 88403 9009907087 9009907114 9009935012 9331915008 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22050

GS121

 1
88412-30300

GS121..ATM

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30370

GS121..ATM

 1
88411-30380

GS121,MS123,YS120

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30330

GS121,MS12#..TBO,TWC

 1
88330 - CLUTCH ASSY, MAGNET
88410-30400

GS121

 1
88410-30410

GS121..ATM

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

GS121,LS12#,MS120,123,YS120

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

GS121,MS120..SPC,TBO,TWC

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30280

GS121..ATM

 1
88403-14030

GS121,LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC

 1
Common parts
90099-07087
90099-07114
90099-35012
93319-15008
94110-40800
94511-00800

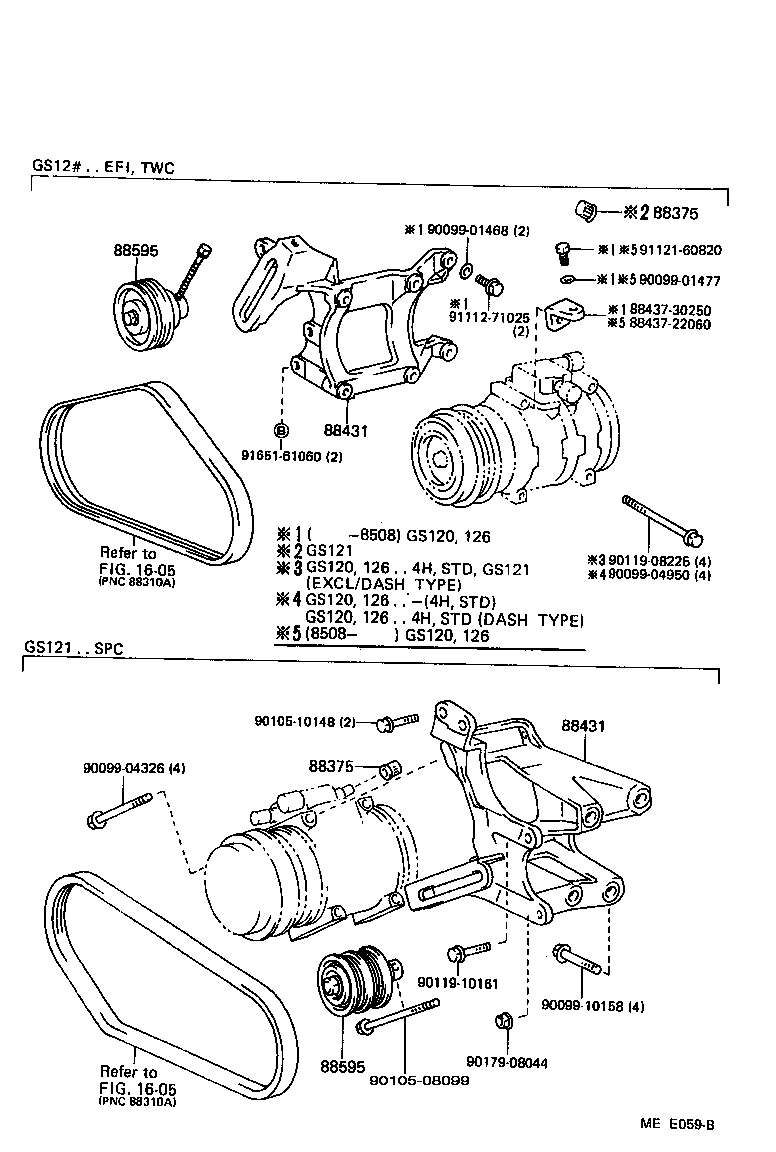

ILLUST NO. 2 OF 2(8308- )GS12#

Click highlighted areas on diagram

diagram 1605 1605 88375 88375 88431 88431 8843722060 8843730250 88595 88595 9009901468 9009901477 9009904326 9009904950 9009910158 9010508099 9010510148 9011908225 9011910161 9017908044 9111271025 9112160820 9165161060
Part # Description Qty Price
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

GS121,MS123,125..ROY,SSL

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

GS121,MS123,125..ROY,SSL

 2
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30480

GS121..TWC

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30480

GS121..TWC

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-22060

GS121

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-22060

GS121

 1
Common parts
88437-22060
88437-30250
90099-01468
90099-01477
90099-04326
90099-04950
90099-10158
90105-08099
90105-10148
90119-08225
90119-10161
90179-08044
91112-71025
91121-60820
91651-61060
Linked diagrams
1605
