GS121-SESQF (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 1GGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

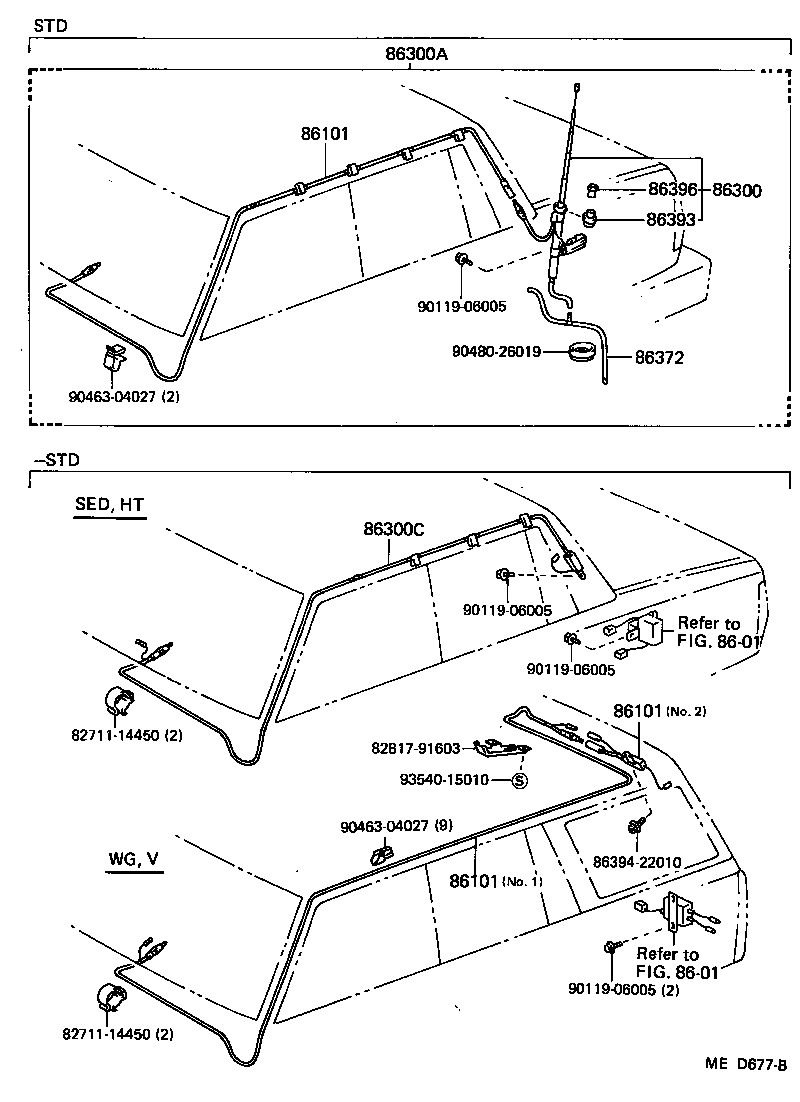

Click highlighted areas on diagram

diagram 8271114450 8271114450 8281791603 8601 8601 86101 86101 86101 86300 86300A 86300C 86372 86393 8639422010 86396 9011906005 9011906005 9011906005 9011906005 9046304027 9046304027 9048026019 9354015010
Part # Description Qty Price
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-30260

GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)

 1
86300-30300

GS121,MS123,125..SED

W/MOON ROOF

 1
Common parts
82711-14450
82817-91603
86394-22010
90119-06005
90463-04027
90480-26019
93540-15010
Linked diagrams
8601
