GS121-SESQF (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 1GGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

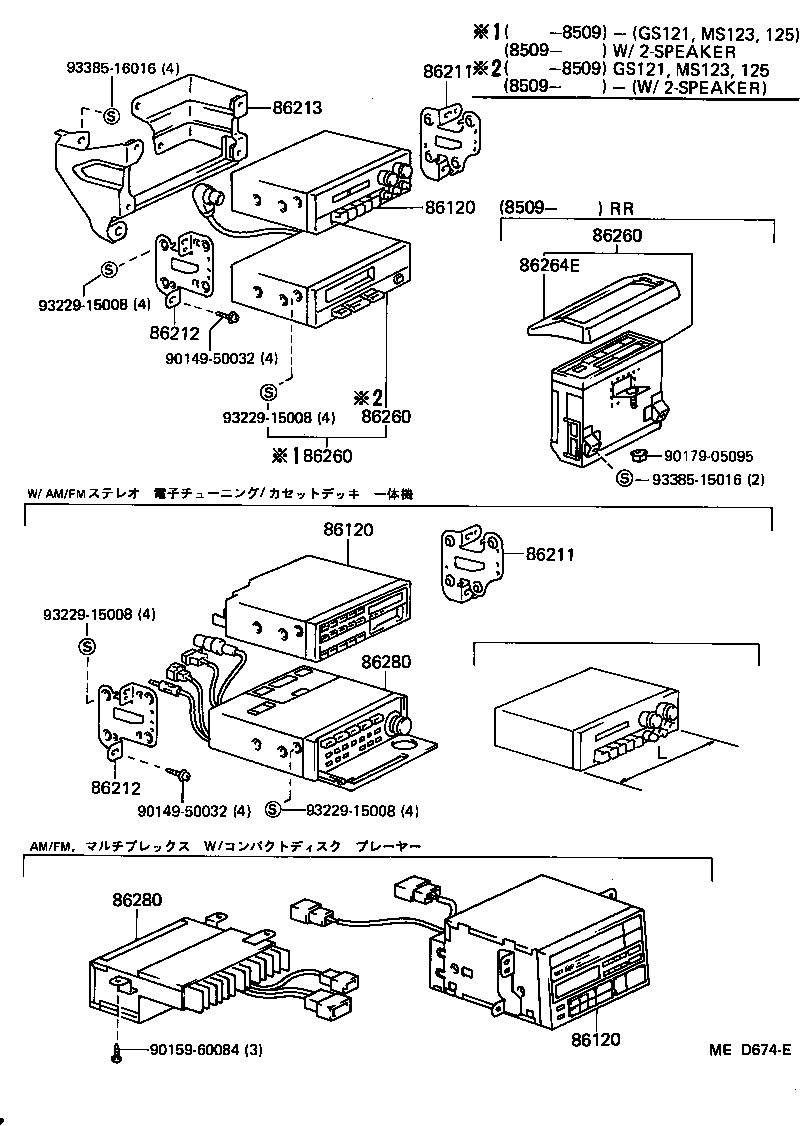

ILLUST NO. 1 OF 2(8308-8509)YS120..DLX ; (8308-8509)GS12#,LS12#,MS12# ; (8509- )

Click highlighted areas on diagram

diagram 86120 86120 86120 86211 86211 86212 86212 86213 86260 86260 86260 86264E 86280 86280 9014950032 9014950032 9015960084 9017905095 9322915008 9322915008 9322915008 9322915008 9338515016 9338516016
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-30590

GS121,MS123,125..ROY

*36,*ELT

 1
86120-30620

GS120,121,LS120,MS12#..ROY,SAL

AM/FM MULTIPLEX,*ELT

 1
86120 - RECEIVER ASSY, RADIO
86120-30590

GS121,MS123,125..ROY

*36,*ELT

 1
86120-30620

GS120,121,LS120,MS12#..ROY,SAL

AM/FM MULTIPLEX,*ELT

 1
86120 - RECEIVER ASSY, RADIO
86120-30590

GS121,MS123,125..ROY

*36,*ELT

 1
86120-30620

GS120,121,LS120,MS12#..ROY,SAL

AM/FM MULTIPLEX,*ELT

 1
86211 - BRACKET, RADIO, NO.1
86211-30040

GS12#,LS12#,MS123,125..DLX,ROY,SAL,SDX,SPE,SSL

 1
86211 - BRACKET, RADIO, NO.1
86211-30040

GS12#,LS12#,MS123,125..DLX,ROY,SAL,SDX,SPE,SSL

 1
86212 - BRACKET, RADIO, NO.2
86212-30040

GS12#,LS12#,MS123,125..DLX,ROY,SAL,SDX,SPE,SSL

 1
86212 - BRACKET, RADIO, NO.2
86212-30040

GS12#,LS12#,MS123,125..DLX,ROY,SAL,SDX,SPE,SSL

 1
86260 - TAPE PLAYER ASSY
86260-30180

GS121,MS123,125..ROY

 1
86260 - TAPE PLAYER ASSY
86260-30180

GS121,MS123,125..ROY

 1
86260 - TAPE PLAYER ASSY
86260-30180

GS121,MS123,125..ROY

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30010

GS121,MS123,125..ROY

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30010

GS121,MS123,125..ROY

 1
Common parts
90149-50032
90159-60084
90179-05095
93229-15008
93385-15016
93385-16016

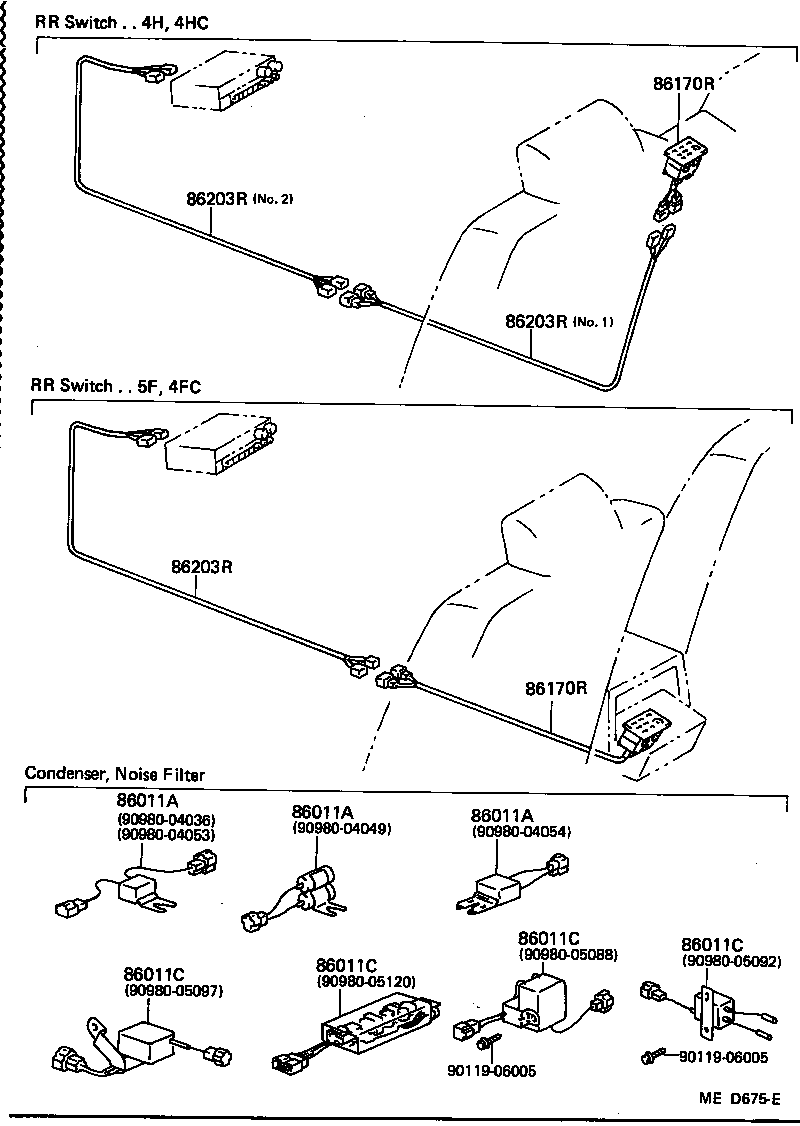

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011C 86011C 86011C 86011C 86170R 86170R 86203R 86203R 86203R 9011906005 9011906005 9098004036 9098004049 9098004053 9098004054 9098005088 9098005092 9098005097 9098005120
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04053

GS12#,MS12#

IGNITION COIL

 1
90980-04049

GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE

DEFOGGER

 1
90980-04036

GS12#,MS12#,YS120

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04053

GS12#,MS12#

IGNITION COIL

 1
90980-04049

GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE

DEFOGGER

 1
90980-04036

GS12#,MS12#,YS120

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04053

GS12#,MS12#

IGNITION COIL

 1
90980-04049

GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE

DEFOGGER

 1
90980-04036

GS12#,MS12#,YS120

IGNITION COIL

 1
86011C - FILTER, NOISE
90980-05088

GS120,121,LS120,MS12#..(HT,SED)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
86011C - FILTER, NOISE
90980-05088

GS120,121,LS120,MS12#..(HT,SED)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
86011C - FILTER, NOISE
90980-05088

GS120,121,LS120,MS12#..(HT,SED)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
86011C - FILTER, NOISE
90980-05088

GS120,121,LS120,MS12#..(HT,SED)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
86170R - SWITCH & VOLUME ASSY, RR
86170-30110

GS121,MS123,125..4HC

*36,*ELT

 1
86170-30100

GS120,121,MS123,125..4HC..(ROY,SAL)

AM/FM MULTIPLEX,*ELT

 1
86170R - SWITCH & VOLUME ASSY, RR
86170-30110

GS121,MS123,125..4HC

*36,*ELT

 1
86170-30100

GS120,121,MS123,125..4HC..(ROY,SAL)

AM/FM MULTIPLEX,*ELT

 1
86203R - WIRE SUB-ASSY, RR
86203-30350

GS120,121,MS123,125..4HC

NO.2

 1
86203-30340

GS120,121,MS123..(4H,4HC)..(ROY,SAL,SDX)

NO.1

 1
86203R - WIRE SUB-ASSY, RR
86203-30350

GS120,121,MS123,125..4HC

NO.2

 1
86203-30340

GS120,121,MS123..(4H,4HC)..(ROY,SAL,SDX)

NO.1

 1
86203R - WIRE SUB-ASSY, RR
86203-30350

GS120,121,MS123,125..4HC

NO.2

 1
86203-30340

GS120,121,MS123..(4H,4HC)..(ROY,SAL,SDX)

NO.1

 1
Common parts
90119-06005
90980-04036
90980-04049
90980-04053
90980-04054
90980-05088
90980-05092
90980-05097
90980-05120
