GS121-SESQF (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 1GGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS120,121,LS12#,MS120,123..ATM..DSL,EFI,LPG,TBO,TDE,TWC

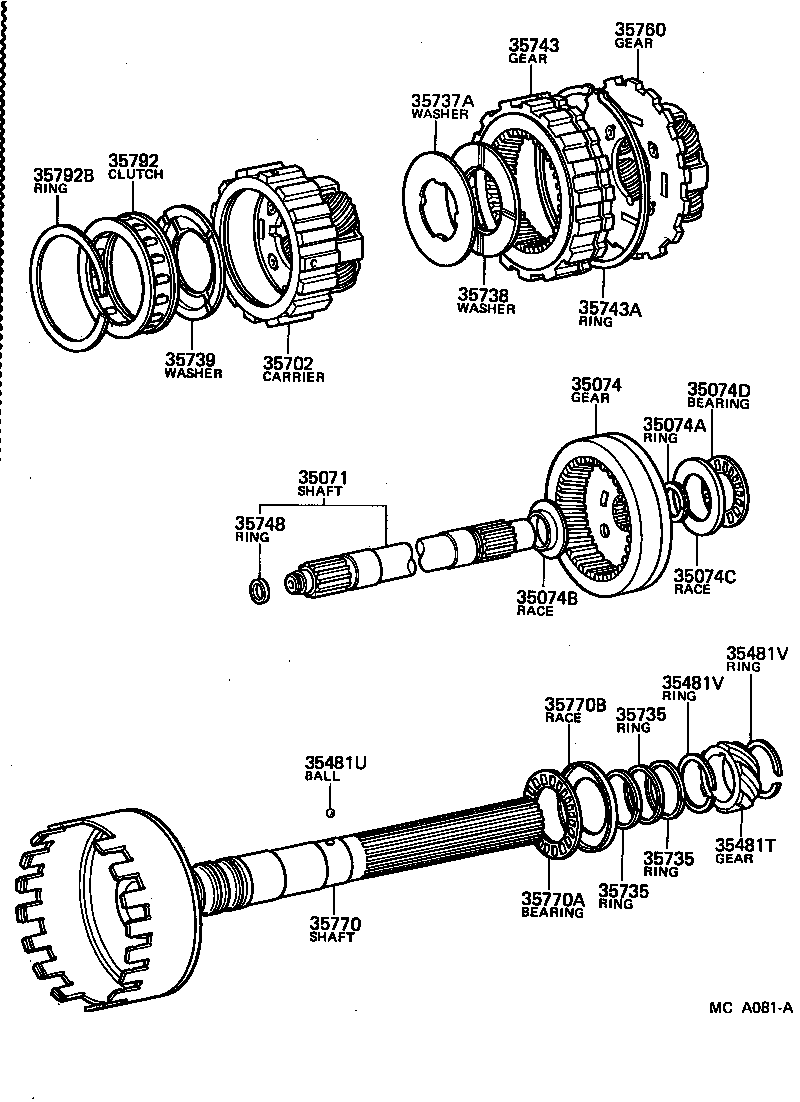

Click highlighted areas on diagram

diagram 35071 35074 35074A 35074B 35074C 35074D 35481T 35481U 35481V 35481V 35702 35735 35735 35735 35737A 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-30031

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TWC)

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30010

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TWC)

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TDE,TWC)

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35481T - GEAR, SPEEDMETER DRIVE (ATM)
33481-25020

GS120,121,LS12#,MS120..ATM..(DSL,EFI,TBO,TDE,TWC)

歯数=5,ﾏｰｸ 5X17−19

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

GS120,121,LS12#,MS12#..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

GS121,MS120,123..ATM..(TBO,TWC)

厚さ=1.50,外径=34.8,ID=28.8

 1
90520-28009

GS120,121,LS12#,MS12#..ATM

厚さ=1.50,外径=33.8,ID=27.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

GS121,MS120,123..ATM..(TBO,TWC)

厚さ=1.50,外径=34.8,ID=28.8

 1
90520-28009

GS120,121,LS12#,MS12#..ATM

厚さ=1.50,外径=33.8,ID=27.8

 2
35702 - CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR
35704-30020

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TWC)

 1
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 3
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-22010

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TBO,TWC)

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22010

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TWC)

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-14010

GS121..ATM..TWC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-22010

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TWC)

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30010

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TWC)

 1
35770 - SHAFT ASSY, OUTPUT
35770-24010

GS121..ATM

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

GS121,LS120,MS123..ATM..(TDE,TWC)

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
